The gently sloped ergonomic interior design matched to the extensive contemporary Concept range. Choice of two widths 70cm as 2 taphole or without tapholes and  75cm 2 taphole.

  • Domestic and hotel use
  • No or two taphole versions
  • Acrylic or wooden furniture panels
  • Ergonomic back rest
  • Available 70 and 75cm wide

Illustrated

  1. E7292(01)

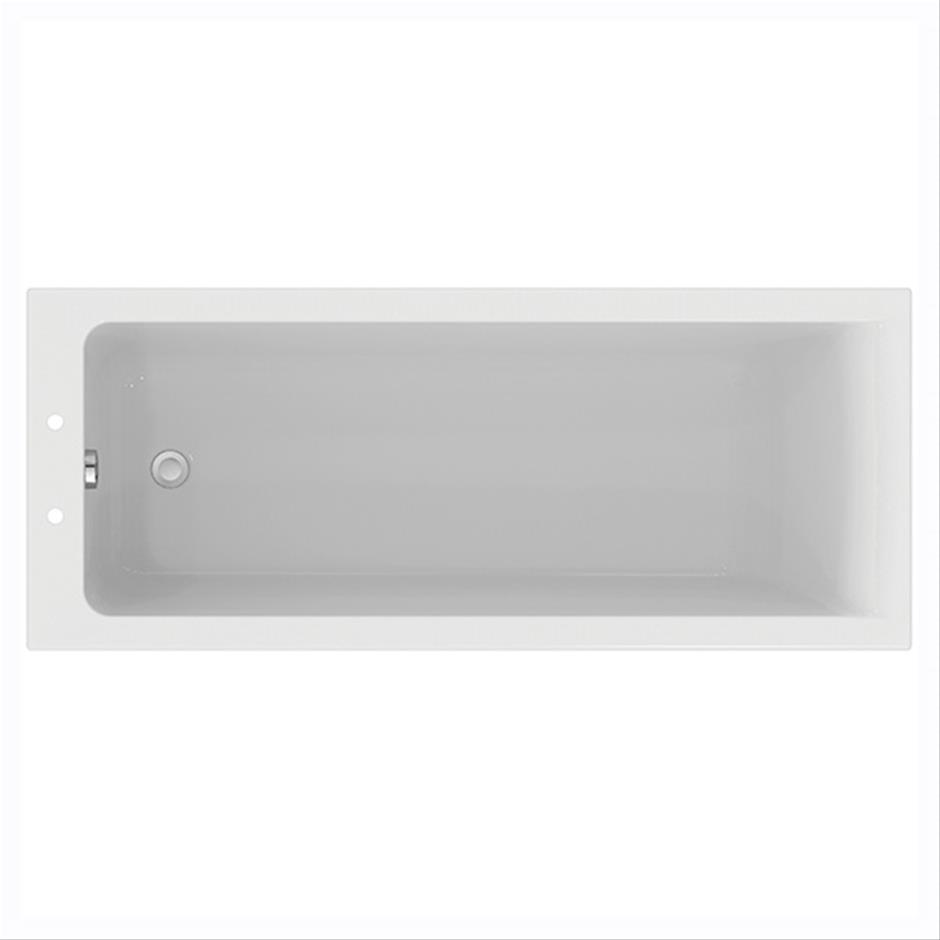

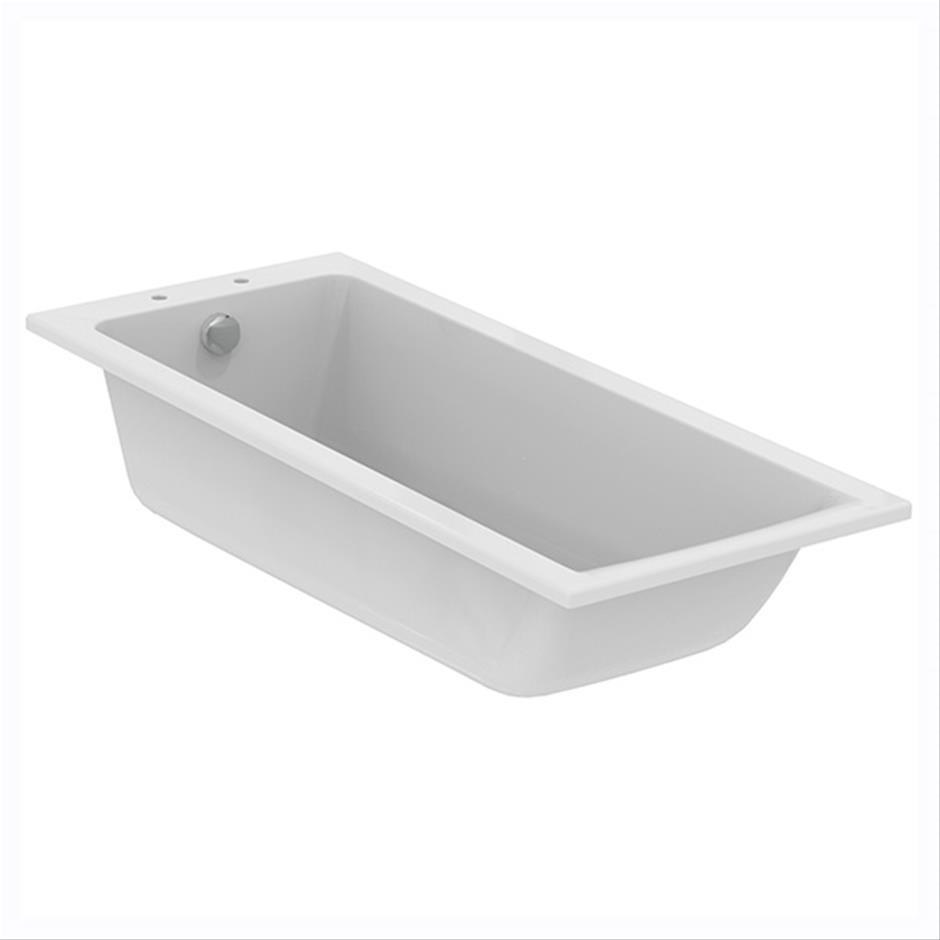

    Concept 170 x 70cm Idealform bath with 2 tapholes

  2. A4053(AA)

    Active dual control two hole thermostatic bath filler

  3. E3194(01)

    Unilux 170cm front panel

  4. E3169(01)

    Unilux 70cm end panel

  5. E5795(67)

    Waste 1½" bath pop-up waste and overflow components only

  6. E5800(AA)

    Bath pop-up waste operating handle and cover only

Material

Idealform

Weights

  1. E7292 20.70 KG
  2. A4053 4.50 KG
  3. E3194 3.65 KG
  4. E3169 2.58 KG
  5. E5795 1.34 KG
  6. E5800 0.82 KG

Capacity

174 litres (to overflow)

Finish key

  1. enlarge (01) White
  2. enlarge (67) Neutral / No Finish
  3. enlarge (AA) Chromium plated

Standards

Constructed to EN 198:2008. EN 14516

Alternate options

  1. Default configuration

    1. E7352(01)

      Concept 170 x 70cm Idealform bath with no tapholes

    2. B8077(AA)

      Active single lever one hole rim mounted bath filler

    3. E3194(01)

      Unilux 170cm front panel

    4. E3169(01)

      Unilux 70cm end panel

    5. E5795(67)

      Waste 1½" bath pop-up waste and overflow components only

    6. E5800(AA)

      Bath pop-up waste operating handle and cover only

    7. A5901(AA)

      TMV Thermostatic mixing valve 22mm

    Configuration options

    1. A4053(AA)

      Active dual control two hole thermostatic bath filler

    2. S8970(67)

      Trap 1½" plastic P with 75mm seal, multi-purpose outlet suitable for plastic and BS copper pipe

  2. Default configuration

    1. E7295(01)

      Concept 170 x 75cm Idealform bath with 2 tapholes

    2. A4053(AA)

      Active dual control two hole thermostatic bath filler

    3. E3194(01)

      Unilux 170cm front panel

    4. E3195(01)

      Unilux 75cm end panel

    5. S8970(67)

      Trap 1½" plastic P with 75mm seal, multi-purpose outlet suitable for plastic and BS copper pipe

    6. E5795(67)

      Waste 1½" bath pop-up waste and overflow components only

    7. E5800(AA)

      Bath pop-up waste operating handle and cover only

    Configuration options

    1. S8830(AA)

      Waste 1½" bath chain and overflow, plastic plug

    2. A5901(AA)

      TMV Thermostatic mixing valve 22mm

  3. Default configuration

    1. E7354(01)

      Concept 170 x 75cm Idealform bath with no tapholes

    2. A4053(AA)

      Active dual control two hole thermostatic bath filler

    3. E3194(01)

      Unilux 170cm front panel

    4. E3195(01)

      Unilux 75cm end panel

    5. E5795(67)

      Waste 1½" bath pop-up waste and overflow components only

    6. E5800(AA)

      Bath pop-up waste operating handle and cover only

    Configuration options

    1. S8830(AA)

      Waste 1½" bath chain and overflow, plastic plug

    2. A5901(AA)

      TMV Thermostatic mixing valve 22mm

  4. Default configuration

    1. E8600(01)

      Concept 170 x 70cm Idealform plus+ bath with no tapholes

    2. B8077(AA)

      Active single lever one hole rim mounted bath filler

    3. E4797(01)

      Unilux Plus+ 170cm front panel for Idealform Plus+

    4. E4831(01)

      Unilux Plus+ 70cm end panel

    5. E5795(67)

      Waste 1½" bath pop-up waste and overflow components only

    6. E5800(AA)

      Bath pop-up waste operating handle and cover only

    7. A5901(AA)

      TMV Thermostatic mixing valve 22mm

    Configuration options

    1. A4053(AA)

      Active dual control two hole thermostatic bath filler

    2. S8970(67)

      Trap 1½" plastic P with 75mm seal, multi-purpose outlet suitable for plastic and BS copper pipe

  5. Default configuration

    1. E8602(01)

      Concept 170 x 75cm Idealform plus+ bath with no tapholes

    2. A4053(AA)

      Active dual control two hole thermostatic bath filler

    3. E4797(01)

      Unilux Plus+ 170cm front panel for Idealform Plus+

    4. E4832(01)

      Unilux Plus+ 75cm front bath panel for Idealform Plus+

    5. E5795(67)

      Waste 1½" bath pop-up waste and overflow components only

    6. E5800(AA)

      Bath pop-up waste operating handle and cover only

    Configuration options

    1. S8830(AA)

      Waste 1½" bath chain and overflow, plastic plug

    2. A5901(AA)

      TMV Thermostatic mixing valve 22mm

View full suite
  1. Concept Cube 55cm short projection washbasin, 1 taphole with overflow

    Concept Cube 55cm Short Proj Pedestal Washbasin, 1 Taphole

    Concept Cube 55cm short projection washbasin, 1 taphole with overflow

  2. Concept Sphere 55cm semi countertop washbasin, 1 taphole with overflow

    Concept Sphere 55cm Semi-Countertop Washbasin, 1 Taphole

    Concept Sphere 55cm semi countertop washbasin, 1 taphole with overflow

  3. Concept Arc 55cm countertop washbasin, 1  taphole

    Concept Arc 55cm Countertop Washbasin, 1 Taphole

    Concept Arc 55cm countertop washbasin, 1 taphole

  4. Concept Arc 45cm handrinse washbasin 1 taphole with overflow

    Concept Arc 45cm Handrinse Washbasin, 1 Taphole

    Concept Arc 45cm handrinse washbasin 1 taphole with overflow

  5. Concept Arc 45cm corner washbasin, 1 taphole with overflow

    Concept Arc 45cm Corner Washbasin, 1 Taphole

    Concept Arc 45cm corner washbasin, 1 taphole with overflow

  6. Concept Cube 40cm handrinse washbasin, 1 taphole with overflow

    Concept Cube 40cm Handrinse Washbasin, 1 Taphole

    Concept Cube 40cm handrinse washbasin, 1 taphole with overflow

  7. Concept 170 x 70cm Idealform bath with 2 tapholes

    Concept 170x70cm Idealform Bath WIth 2 Tapholes

    Concept 170 x 70cm Idealform bath with 2 tapholes

  8. Concept 170 x 75cm Idealform double ended bath with 2 tapholes

    Concept 170x75cm Idealform Double Ended Bath 2 Tapholes

    Concept 170 x 75cm Idealform double ended bath with 2 tapholes

  9. Concept 150 x 70cm bath with 2 tapholes

    Concept 150x70cm Bath 2 Tapholes

    Concept 150 x 70cm bath with 2 tapholes

  10. Concept bidet wall mounted 1 taphole

    Concept Bidet Wall Mounted 1 Taphole

    Concept bidet wall mounted 1 taphole

  11. Concept single robe hook

    Concept Robe Hook Single

    Concept single robe hook

  12. Concept toilet roll holder

    Concept Toilet Roll Holder

    Concept toilet roll holder

  13. Concept toilet roll holder with cover

    Concept Toilet Roll Holder With Cover

    Concept toilet roll holder with cover

  14. Concept toilet roll holder, spare

    Concept Toilet Roll Holder, Spare

    Concept toilet roll holder, spare

  15. Concept towel ring

    Concept Towel Ring

    Concept towel ring

  16. Concept towel rail 300mm

    Concept Towel Rail 300mm

    Concept towel rail 300mm

  17. Concept towel rail 450mm

    Concept Towel Rail 450mm

    Concept towel rail 450mm

  18. Concept towel rail 600mm

    Concept Towel Rail 600mm

    Concept towel rail 600mm

  19. Concept glass shelf 500mm with brackets

    Concept Glass Shelf With Brackets 500mm

    Concept glass shelf 500mm with brackets

  20. Concept glass shelf 600mm with brackets

    Concept Glass Shelf With Brackets 600mm

    Concept glass shelf 600mm with brackets

  21. Concept accessory rail 670mm vertical with 2 ceramic bowls and soap dish with hook

    Concept Accessory Rail 670mm Vertical With 2 Bowls, Soap Dish & Hook

    Concept accessory rail 670mm vertical with 2 ceramic bowls and soap dish with hook

  22. Concept toilet brush with wall mount holder

    Concept Toilet Brush With Wall Mount Holder

    Concept toilet brush with wall mount holder

  23. Concept ceramic tumbler with bracket and holder

    Concept Tumbler Ceramic With Bracket & Holder

    Concept ceramic tumbler with bracket and holder

  24. Concept ceramic soap dispenser with bracket and holder

    Concept Soap Dispenser Ceramic With Bracket & Holder

    Concept ceramic soap dispenser with bracket and holder

  25. Concept ceramic soap dish with bracket and holder

    Concept Soap Dish Ceramic With Bracket & Holder

    Concept ceramic soap dish with bracket and holder

  26. Concept 370 x 380mm wall hung corner washbasin unit with two doors

    Concept 370x380 Wall Hung Corner Washbasin Unit 2 Door

    Concept 370 x 380mm wall hung corner washbasin unit with two doors

  27. Concept 300 x 300mm full pedestal washbasin unit with 1 door

    Concept 300x300mm Full Pedestal Washbasin Unit 1 Door

    Concept 300 x 300mm full pedestal washbasin unit with 1 door

  28. Concept 500 x 300mm wall hung basin unit with 2 doors

    Concept 500x300mm Wall Hung Basin Unit, 2 Door

    Concept 500 x 300mm wall hung basin unit with 2 doors

  29. Concept 500 x 210mm wall hung washbasin unit with two doors

    Concept 500x210 Wall Hung Washbasin Unit 2 Door

    Concept 500 x 210mm wall hung washbasin unit with two doors

  30. Concept 500 x 210mm WC base unit with 6/4 litre push button cistern

    Concept 500x210 WC Base Unit With Push Button Cistern

    Concept 500 x 210mm WC base unit with 6/4 litre push button cistern

  31. Concept 500 x 300mm WC base unit with 6/4 litre flush cistern and push button

    Concept 500x300mm WC Base Unit Inc. Push Button Cistern

    Concept 500 x 300mm WC base unit with 6/4 litre flush cistern and push button

  32. Concept 300 x 300 x 1755mm tall column unit with 1 door, 1 glass shelf and two drawers

    Concept 300x300x1755 Tall Unit 1 Door, Glass Shelf 2 Draw

    Concept 300 x 300 x 1755mm tall column unit with 1 door, 1 glass shelf and two drawers

  33. Concept 400 x 700mm mirror

    Concept 400x700mm mirror no lights

    Concept 400 x 700mm mirror

  34. Concept soap basket corner

    Concept Soap Basket Corner

    Concept soap basket corner

  35. Concept soap basket

    Concept Soap Basket

    Concept soap basket

  36. Concept grabrail 45cm & soap basket

    Concept Grabrail 45cm & Soap Basket

    Concept grabrail 45cm & soap basket

  37. Concept 70cm vanity washbasin, 1 taphole overflow

    Concept 70cm Vanity Washbasin

    Concept 70cm vanity washbasin, 1 taphole overflow

  38. Concept 100cm vanity washbasin, 1 taphole overflow

    Concept 100cm Vanity Washbasin

    Concept 100cm vanity washbasin, 1 taphole overflow

  39. Concept 130cm double vanity washbasin, 1 taphole overflow

    Concept 130cm Double Vanity Washbasin

    Concept 130cm double vanity washbasin, 1 taphole overflow

  40. Concept Blue washbasin mixer 1 hole with pop-up waste

    Concept Blue Washbasin Mixer 1 Hole With Pop-up Waste

    Concept Blue washbasin mixer 1 hole with pop-up waste

  41. Concept washbasin mixer tubular spout, 1 hole

    Concept Washasin Mixer Tubular Spout 1 Hole

    Concept washbasin mixer tubular spout, 1 hole

  42. Concept bidet mixer 1 hole with pop-up waste

    Concept Bidet Mixer 1 Hole With Pop-up Waste

    Concept bidet mixer 1 hole with pop-up waste

  43. Concept washbasin pillar taps

    Concept Washbasin Pillar Taps

    Concept washbasin pillar taps

  44. Concept bath pillar taps

    Concept Bath Pillar Taps

    Concept bath pillar taps

  45. Concept bath filler 2 hole dual control

    Concept Bath Filler 2 Hole Dual Control

    Concept bath filler 2 hole dual control

  46. Concept bath shower 1 hole mixer with shower set

    Concept BSM 1 Hole With Shower Set

    Concept bath shower 1 hole mixer with shower set

  47. Concept bath shower single lever mixer,  2 hole mixer wall mounted

    Concept BSM 2 Hole Wall Mounted

    Concept bath shower single lever mixer, 2 hole mixer wall mounted

  48. Concept 150cm Front Bath Panel For Standard Height Baths

    Concept 150cm Front Bath Panel For Standard Height Baths

    Concept 150cm Front Bath Panel For Standard Height Baths

  49. Concept Sphere 38cm Countertop washbasin, No tap deck with overflow

    Concept Sphere 38cm Countertop Washbasin No Tap Deck

    Concept Sphere 38cm Countertop washbasin, No tap deck with overflow

  50. Concept Cube 42cm Countertop basin, No tap deck with overflow

    Concept Cube 42cm Under-Countertop Washbasin No Tap Deck

    Concept Cube 42cm Countertop basin, No tap deck with overflow

  51. Concept 170cm x 85cm Idealform Plus+ Square shower bath, left hand no tapholes

    Concept 170x85cm Idealform Plus+ Square Shower Bath LH No Taphole

    Concept 170cm x 85cm Idealform Plus+ Square shower bath, left hand no tapholes

  52. Concept 200 x 170mm wall storage unit with one door, Gloss Grey

    Concept 200x170mm Wall Storage Unit With One Door

    Concept 200 x 170mm wall storage unit with one door, Gloss Grey

  53. Concept 200 x 210mm side unit with one door, Gloss Grey

    Concept 200x210mm Side Unit With One Door

    Concept 200 x 210mm side unit with one door, Gloss Grey

  54. Concept bath shower single lever mixer,  2 hole mixer wall mounted

    Concept BSM 2 Hole Wall Mounted Single Lever

    Concept bath shower single lever mixer, 2 hole mixer wall mounted

  55. Concept bidet back-to-wall 1 taphole

    Concept Bidet Back-To-Wall 1 Taphole

    Concept bidet back-to-wall 1 taphole

  56. Concept bath shower 2 hole mixer with shower set

    Concept BSM 2 Hole With Shower Set

    Concept bath shower 2 hole mixer with shower set

CAD

Download all CAD files
A4053 Active Bath Filler 2 Hole Thermostatic Dual Control View Size Format
Generic
Right 80.3Kb DWG Download
Generic
Front 93.0Kb DWG Download
Generic
3D 4.5Mb DXF Download
E7292 Concept 170x70cm Idealform Bath WIth 2 Tapholes View Size Format
Generic
Top 71.3Kb DWG Download
Generic
Left 70.6Kb DWG Download
Generic
Front 72.1Kb DWG Download
B8077 Active Bath Filler 1 Hole Single Lever View Size Format
Generic
Right 86.3Kb DWG Download
Generic
3D 5.1Mb DXF Download
E7295 Concept 170x75cm Idealform Bath 2 Tapholes View Size Format
Generic
Top 71.1Kb DWG Download
Generic
Left 70.1Kb DWG Download
Generic
Front 72.1Kb DWG Download
E7352 Concept 170x70cm Idealform Bath With No Tapholes View Size Format
Generic
Top 70.6Kb DWG Download
Generic
Left 70.6Kb DWG Download
Generic
Front 72.3Kb DWG Download
E7354 Concept 170x75cm Idealform Bath No Tapholes View Size Format
Generic
Top 70.8Kb DWG Download
Generic
Left 69.8Kb DWG Download
Generic
Front 72.3Kb DWG Download
E8600 Concept 170x70cm Idealform Plus+ Bath With No Tapholes View Size Format
Generic
Top 16.5Kb DWG Download
Generic
Left 17.0Kb DWG Download
Generic
Front 18.5Kb DWG Download
E8602 Concept 170x75cm Idealform Plus+ Bath No Tapholes View Size Format
Generic
Top 16.4Kb DWG Download
Generic
Left 16.3Kb DWG Download
Generic
Front 18.4Kb DWG Download

BIM, Revit and 3D PDF

Download all CAD files
Product File type Size Format
A4053 BIM 720.0Kb RFA Download
E3169 BIM 232.0Kb RFA Download
E3194 BIM 304.0Kb RFA Download
E3194 BIM 236.0Kb RFA Download
E6500 BIM 420.0Kb RFA Download
E6502 BIM 420.0Kb RFA Download
E7292 BIM 456.0Kb RFA Download
E7292 BIM 733.2Kb IFC Download
B8077 BIM 467.3Kb IFC Download
B8077 BIM 548.0Kb RFA Download
E3195 BIM 236.0Kb RFA Download
E7295 BIM 408.0Kb RFA Download
E7352 BIM 719.9Kb IFC Download
E7354 BIM 408.0Kb RFA Download
E8600 BIM 408.0Kb RFA Download
E8602 BIM 408.0Kb RFA Download
S8970 BIM 612.0Kb RFA Download

Supporting Documents

Download all Documents
Product File type Size Format
E7292 Data Sheet 231.6Kb PDF View Download
E7352 Data Sheet 238.0Kb PDF View Download
E7295 Data Sheet 235.0Kb PDF View Download
E7354 Data Sheet 112.7Kb PDF View Download
E8600 Data Sheet 229.7Kb PDF View Download
E8602 Data Sheet 114.4Kb PDF View Download
A4053 Installation Guide 571.8Kb PDF View Download

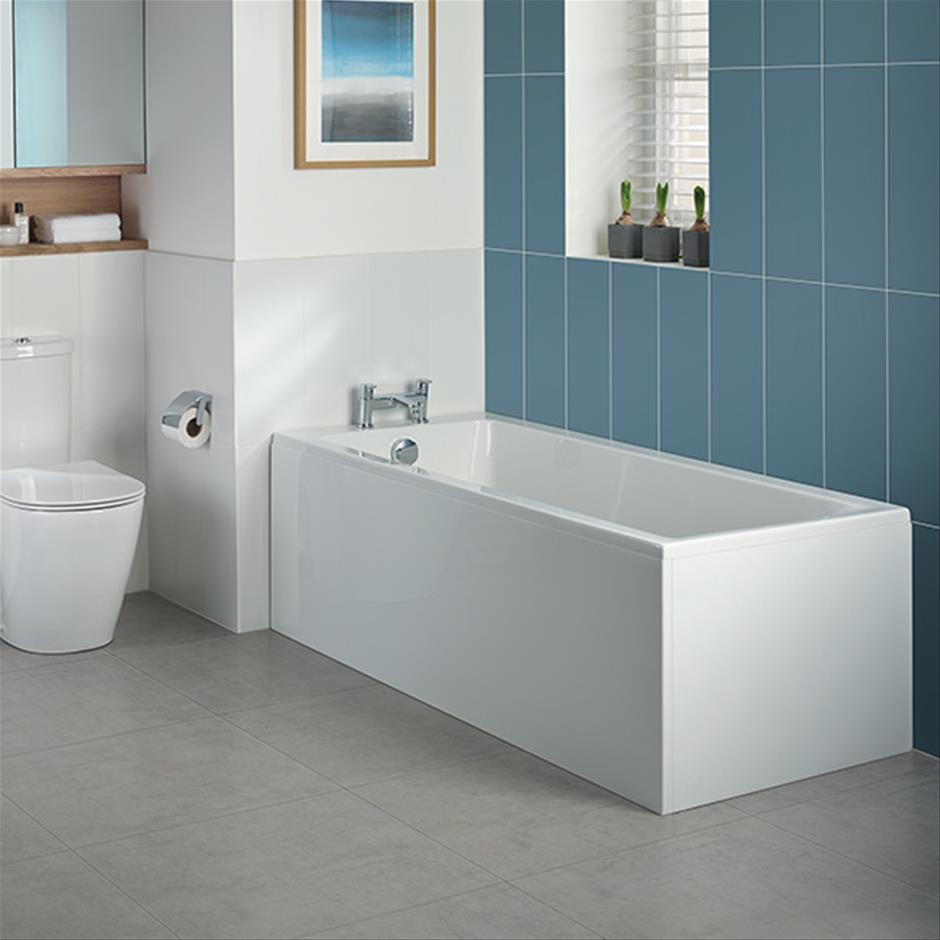

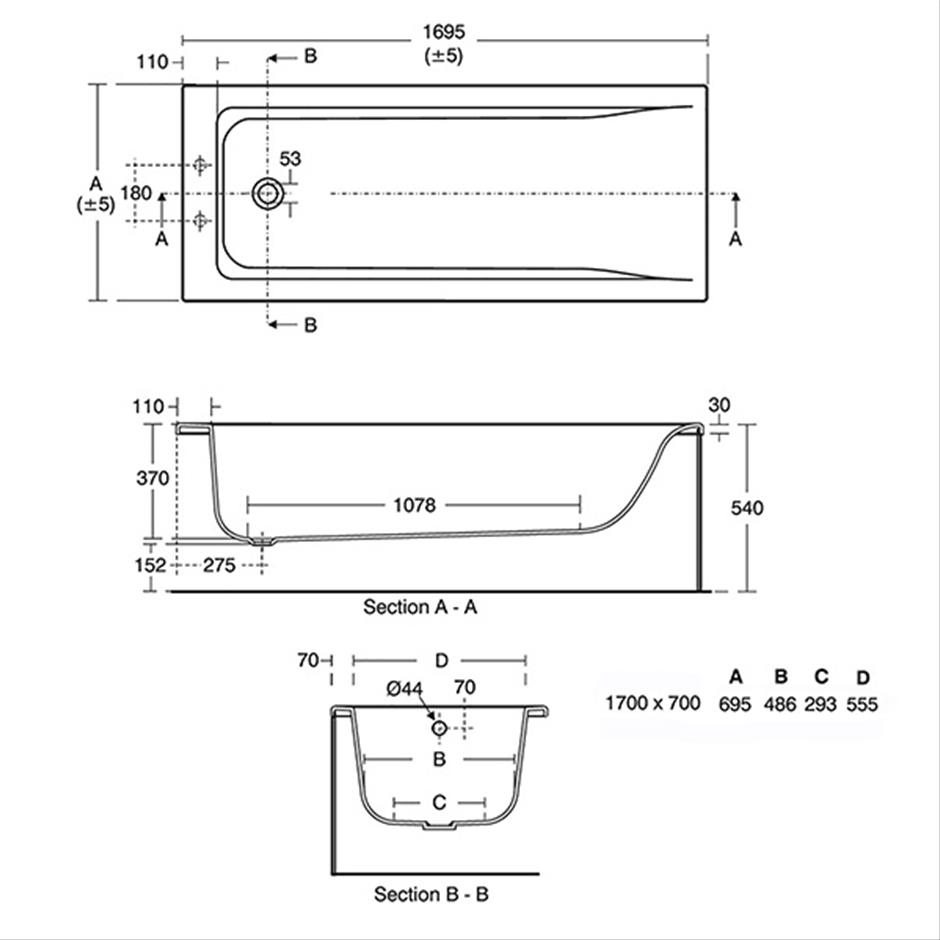

View larger image Concept 170cm x 70/75cm
This image is for illustrative purposes only

Frequently used applications

  • Hotels Hotels
  • Residential Residential
  • Social Housing Social Housing
  • Student Accommodation Student Accommodation

Features

  • Water Saving Water Saving
