Doc M Shower Room Pack - Additional WC & Large Washbasin

S6960(AC) Shower room pack with folding shower seat and back support in grey, 3 x 60cm grab rails, 2 x hinged rails and 2 x 45cm grab rails, lever operated thermostatic mixer for concealed supplies, shower handset holder, handset & hose, fixed short projection shower head, lever operated diverter, shower curtain and shower rail

An installation for use by ambulant disabled, walking impaired and infirm people, providing shower area with slip resistant floor, hinged seat, lever operated mixer, adjustable shower head, shower curtain and grab rails. Thermostatic shower valve TMV3 approved to help prevent scalding. This installation conforms to Document M of the Building Regulations. The shower valve and diverter is more suited to duct installation.


  • Meets all Doc M Building Regulations
  • Room requires shower pack and the listed items
  • Lever operated mixer
  • Corner layout for WC
  • Larger washbasin set back 100mm
  • Optional blue grab rails

  • White
    (AC)
  • Blue
    (LI)
  • Grey
    (LJ)
  • Charcoal
    (RN)
  • Stainless Steel finish
    (MY)
Material: Mixed Material
Weight: 69.65Kg
Flow rate: 7.5 Litres per minute @ 3 bar pressure
Water Saving: Yes



Data Sheet Spares Where to Buy

Doc M Pack

S6960(AC) Shower room pack with folding shower seat and back support in grey, 3 x 60cm grab rails, 2 x hinged rails and 2 x 45cm grab rails, lever operated thermostatic mixer for concealed supplies, shower handset holder, handset & hose, fixed short projection shower head, lever operated diverter, shower curtain and shower rail

WC Pan

S3054(01) Contour 21 close coupled raised height toilet bowl with horizontal outlet, 75cm projection with floor fixing kit

Cistern

S3654(01) Contour 21 close coupled 4.5 litre delay fill single flush syphon cistern for 75cm projection bowl, bottom supply, internal overflow with spatula lever (reversible) and secure cover fastener

WC Seat

S4066(01) Contour 21 toilet seat only, top fixing hinges and retaining buffers

Grab Rails

S6454(AC) Contour 21 grab rail straight 60cm long x 35mm diameter (x4)

Washbasin

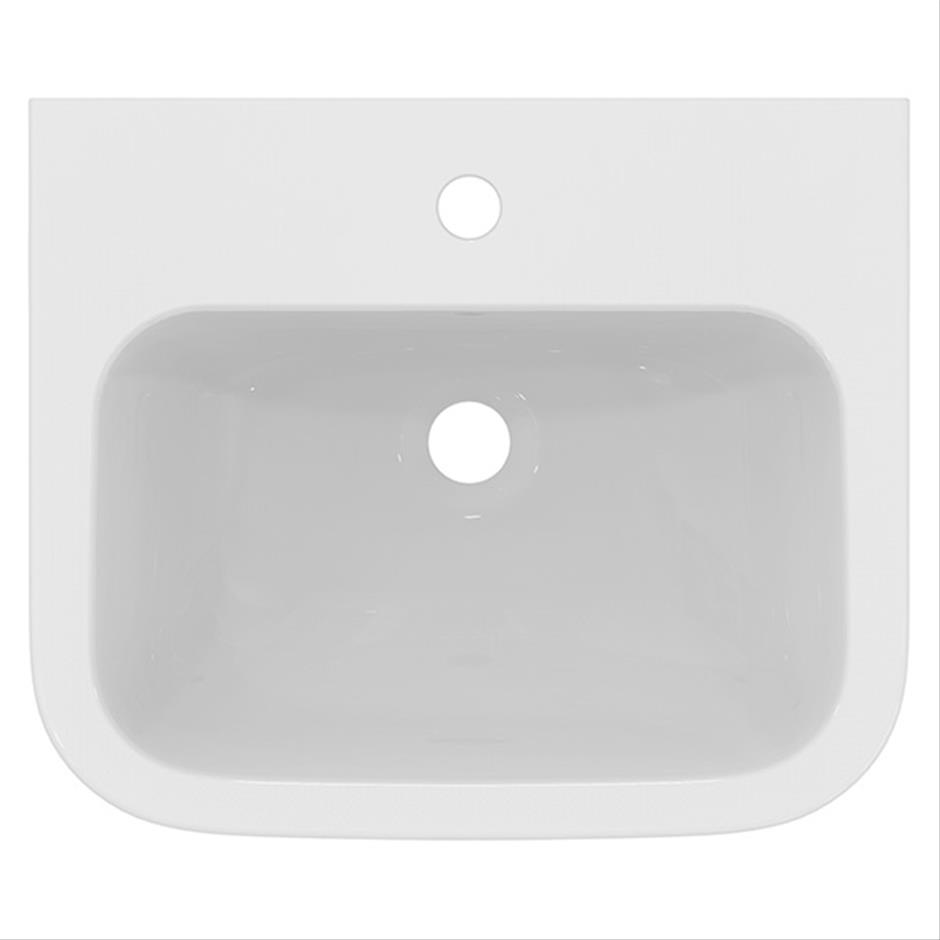

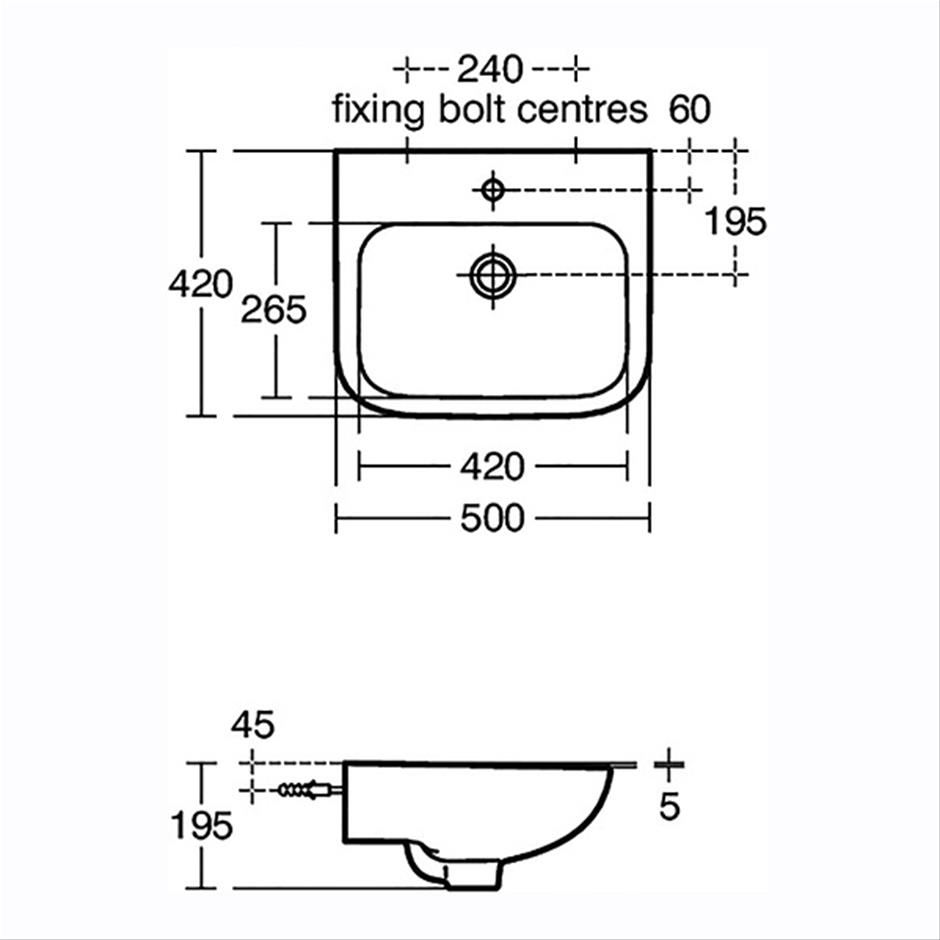

S2311(01) Portman 21 washbasin 50cm, 1 taphole with overflow, no chainstay hole

Washbasin Wall Fixings

E0157(67) Wall fixing set

Waste

S8733(AA) Waste 1¼" brass anti theft swivel plug waste, 80mm slotted tail

Trap

S8910(67) Trap 1¼" plastic bottle, 75mm seal, multi-purpose outlet

Grab Rails

S6360(AC) Contour 21 hinged support rail 80 x 35mm diameter, Doc M Compliant

Brassware

A6697(AA) Contour 21+ 1 hole thermostatic basin mixer, single sequential lever with copper tails

Special notes

Order the pack to suit your room corner layout and all the additional individual products, S6454 rail x 4 and S6360 x 1 for full room set. For LRV and RAL numbers see Doc M introduction. Fixing heights: Floor to top of shower seat 480mm Floor to centre of back rest of rail 800mm Floor to centre of horizontal grab rail 800mm. White:Ral=9016, LRV=87 Blue:Ral=5011, LRV=6 Red:Ral=3020, LRV=12 Grey:Ral=7005, LRV=19 Charcoal:Ral=7016, LRV=8 Accreditations apply to some individual items and although every attempt is made to ensure this site has up to date accurate information, always check with the Accreditor website to ensure the product is listed.
