Doc M Contour 21+ Back To Wall Left or Right Hand Packs

S0685(AC) Doc M Contour 21+ back to wall left hand corner pack, rimless WC pan, water saving delay fill Conceala cistern with spatula lever, grab rails, hinged support rail with toilet roll holder, seat no cover with retaining buffers, copper tails on TMV3 mixer tap

Doc M pack, specifically designed to latest recommendations which call for the tap to be positioned more conveniently on the side of the basin closest to the seated user. These packs have a left hand or right hand single taphole basin specific to that need. Taps have copper tails as these are preferred in many applications. TMV3 approved basin mixer to help prevent scalding with integral thermostat to reduce Legionella risk. Water saving 4.5 or 6 litre cistern.


  • Delivered in one box
  • Further rail colour options
  • LABC approved
  • BS8300 compliant
  • Stainless Steel finish rails with Grey seat

  • White
    (AC)
  • Blue
    (LI)
  • Grey
    (LJ)
  • Stainless Steel finish
    (MY)
  • Charcoal
    (RN)
Material: Mixed Material
Weight: 69.65Kg
Water Saving: Yes

Standards: Vitreous china to BS 3402 BS 8300 compliant

View data sheet

Doc M Pack

S0685 Doc M Contour 21+ back to wall left hand corner pack, rimless WC pan, water saving delay fill Conceala cistern with spatula lever, grab rails, hinged support rail with toilet roll holder, seat no cover with retaining buffers, copper tails on TMV3 mixer tap

Variants

Special notes

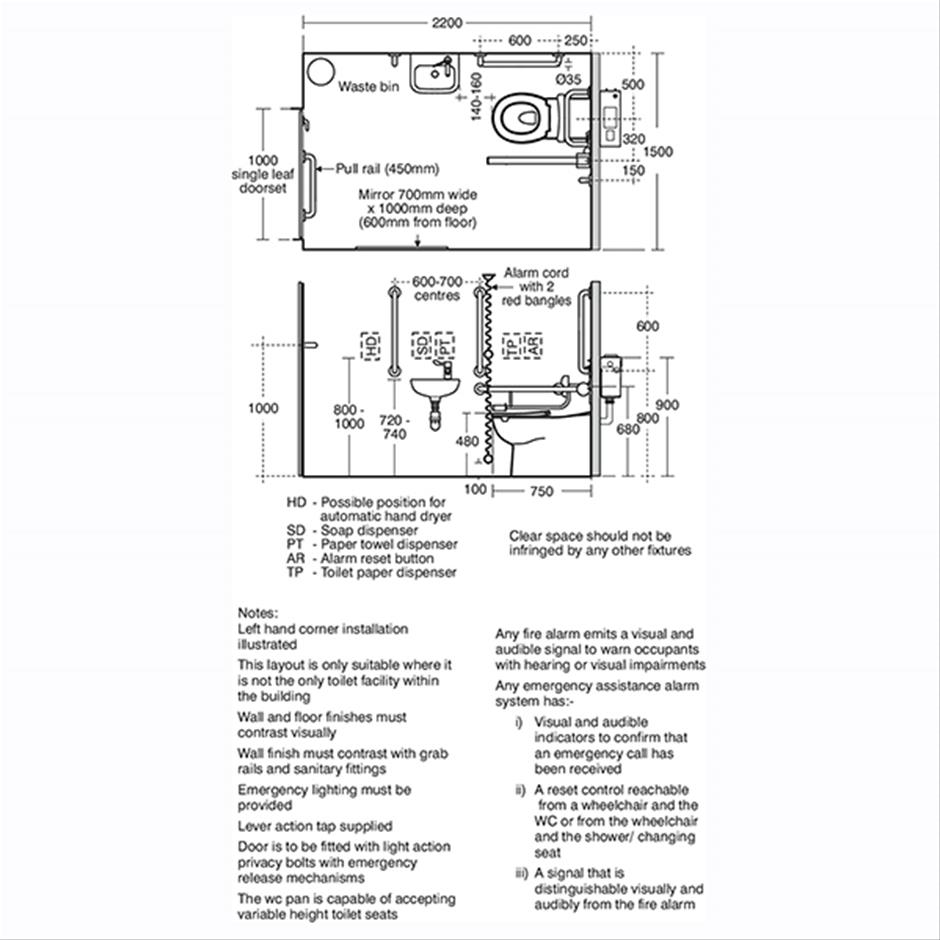

Doc M packs are available both right and left hand corner arrangement, illustrated is left hand arrangement. Supplied with layout drawings, detailing the fixing positions necessary for Doc M compliance. Pan incorporates full outlet pipe that extends beyond the pan to allow for easier installation and inspection of pipe seal once installed
