Doc M Contour 21+ Close Coupled - Individual Items

S3054(01) Contour 21 close coupled raised height toilet bowl with horizontal outlet, 75cm projection with floor fixing kit

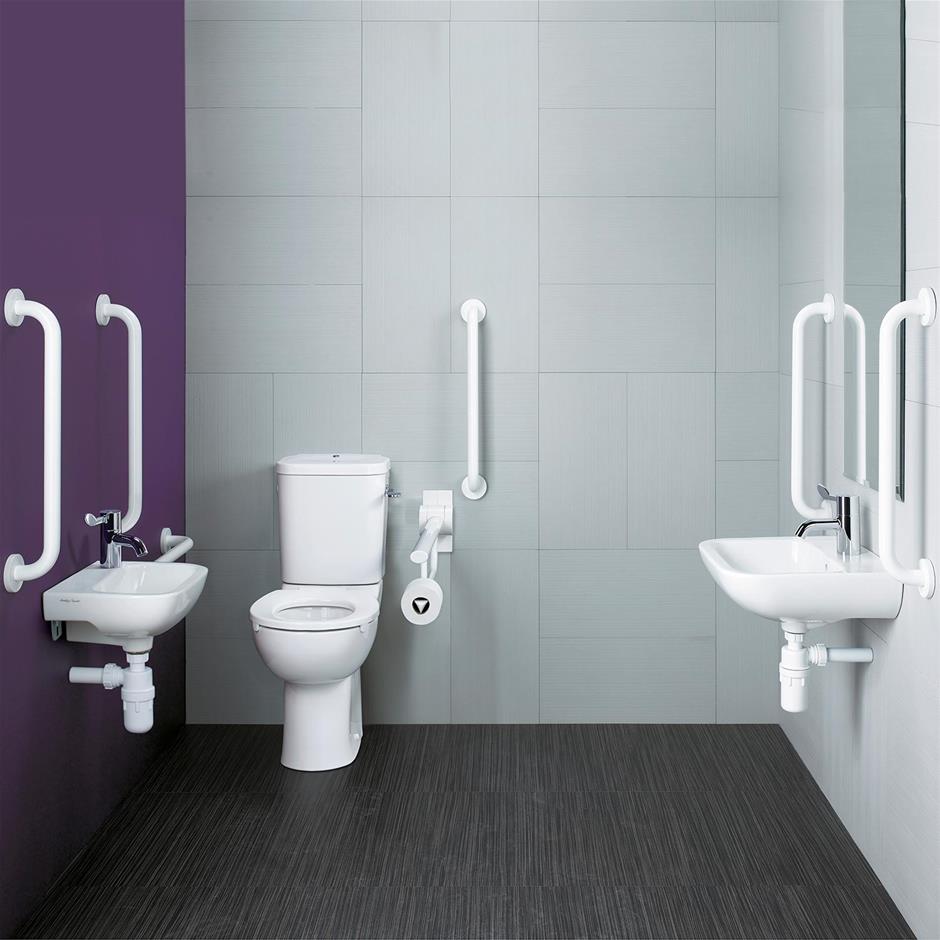

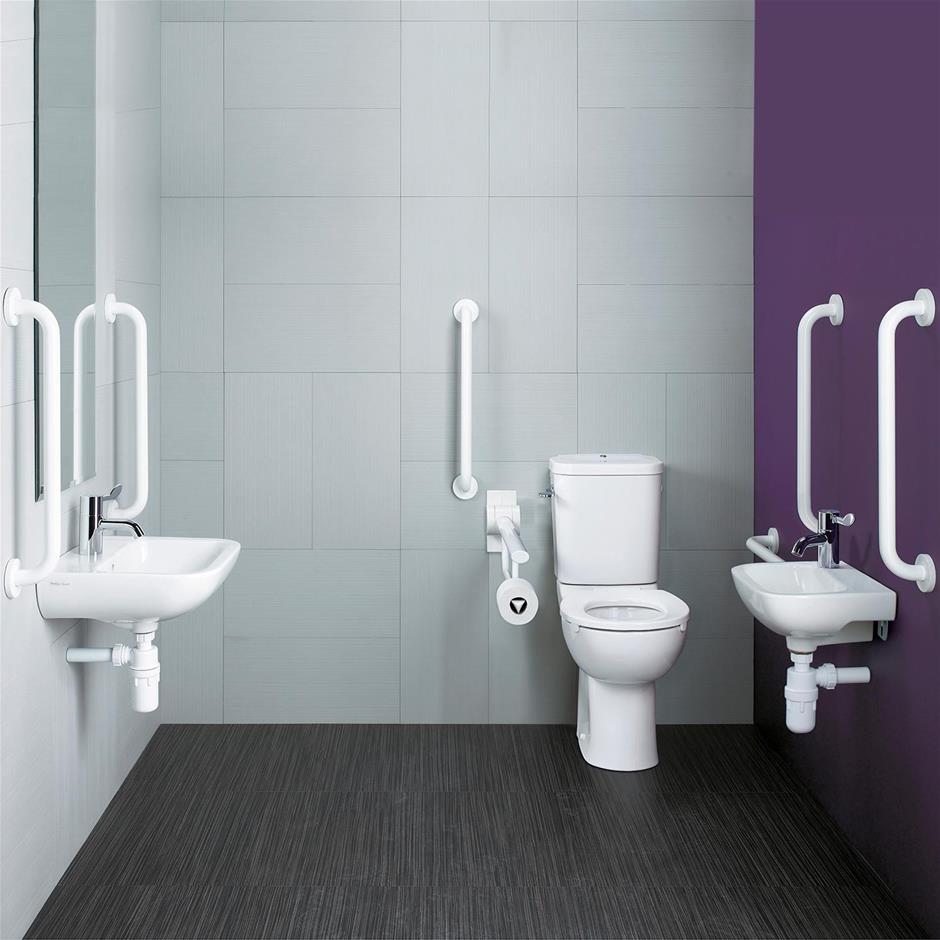

Individual items for left hand Doc M close coupled pack, choosing the optional washbasin from individual items gives items for right hand Doc M close coupled pack. All Doc M packs are specifically designed to latest recommendations which call for the tap to be positioned more conveniently on the side of the basin closest to the seated user. For right hand corner arrangement substitute washbasin S247401 for S247301.

For the complete pack that these items relate to see S0683 (left hand) and S0684 (right hand) pack codes.


  • For individual items see "illustrated" tab

  • White
    (01)
Material: Vitreous China
Weight: 25.86Kg

Standards: Vitreous china to BS 3402.


Data Sheet Spares Where to Buy

WC Pan

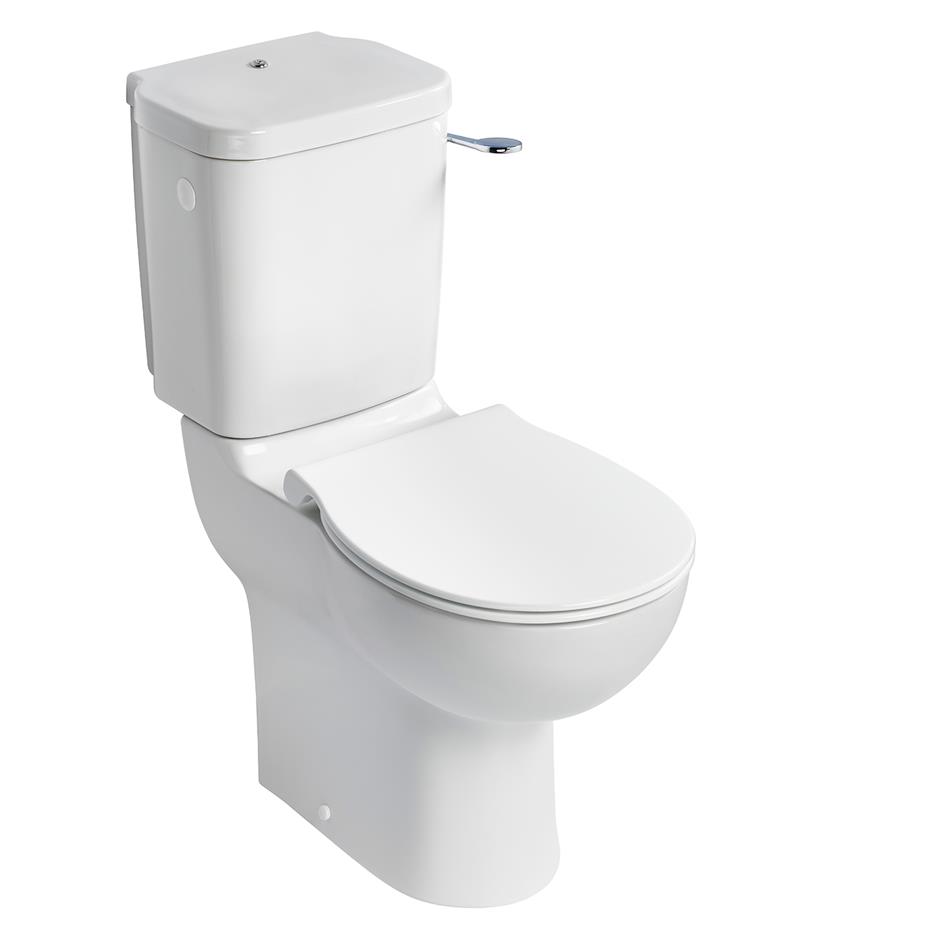

S3054(01) Contour 21 close coupled raised height toilet bowl with horizontal outlet, 75cm projection with floor fixing kit

Trap

S8910(67) Trap 1¼" plastic bottle, 75mm seal, multi-purpose outlet

Grab Rails

S6454(AC) Contour 21 grab rail straight 60cm long x 35mm diameter (x4)

Grab Rails

S6452(AC) Contour 21 grab rail straight 45cm long x 35mm diameter

Washbasin Wall Fixings

S9110(67) Hangers concealed, Steel

Waste

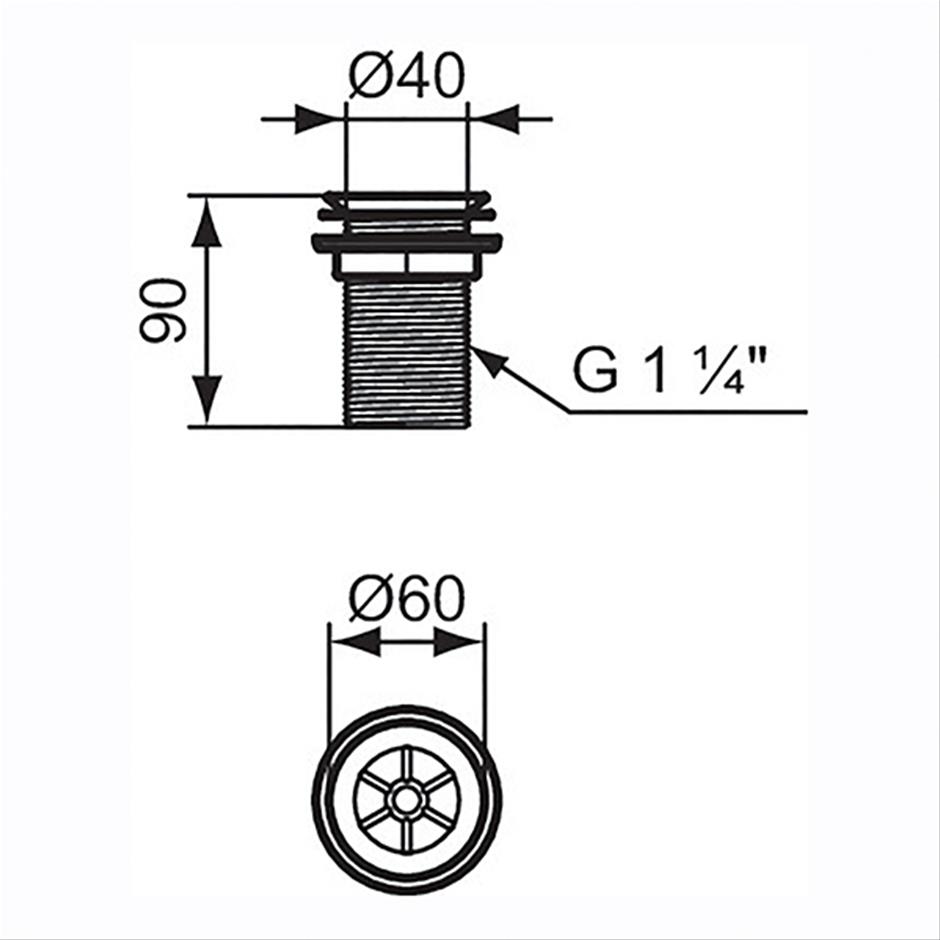

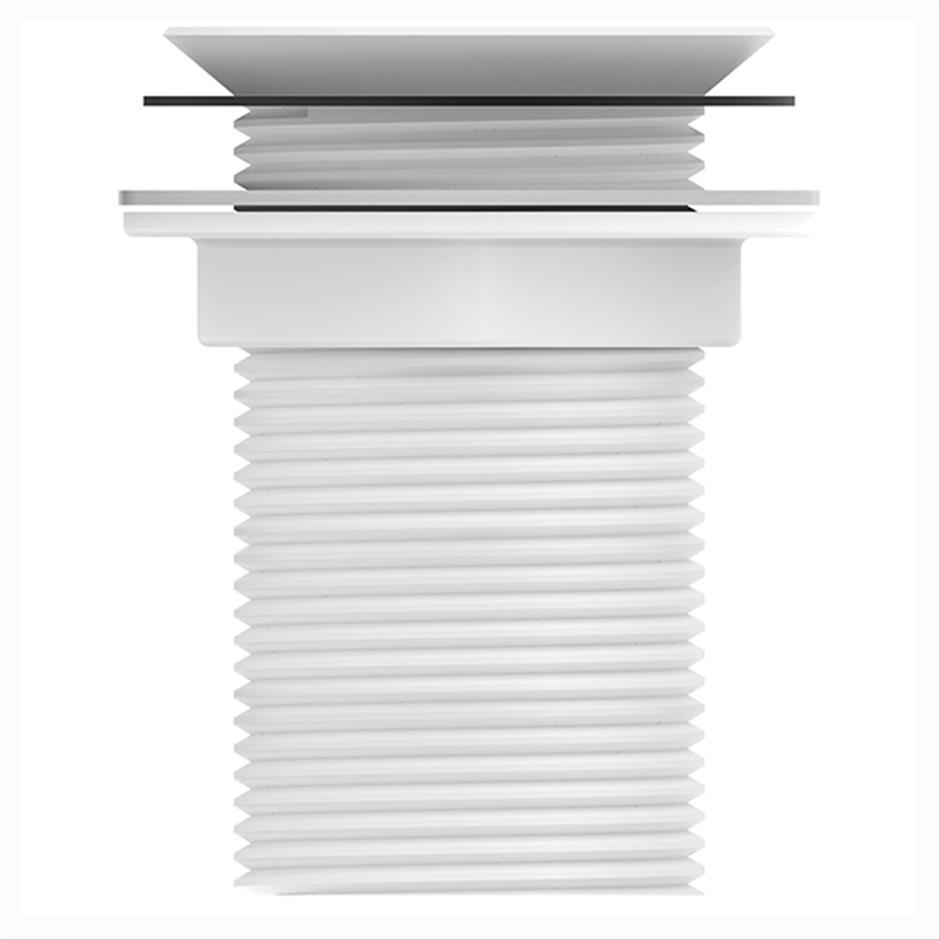

S8810(01) Waste 1¼" plastic strainer, dished pattern 80mm unslotted tail

Grab Rails

S6360(AC) Contour 21 hinged support rail 80 x 35mm diameter, Doc M Compliant

Toilet Roll Holder

S6363(AC) Toilet roll holder for Contour 21 hinged arm rail

Brassware

A6697(AA) Contour 21+ 1 hole thermostatic basin mixer, single sequential lever with copper tails

Washbasin

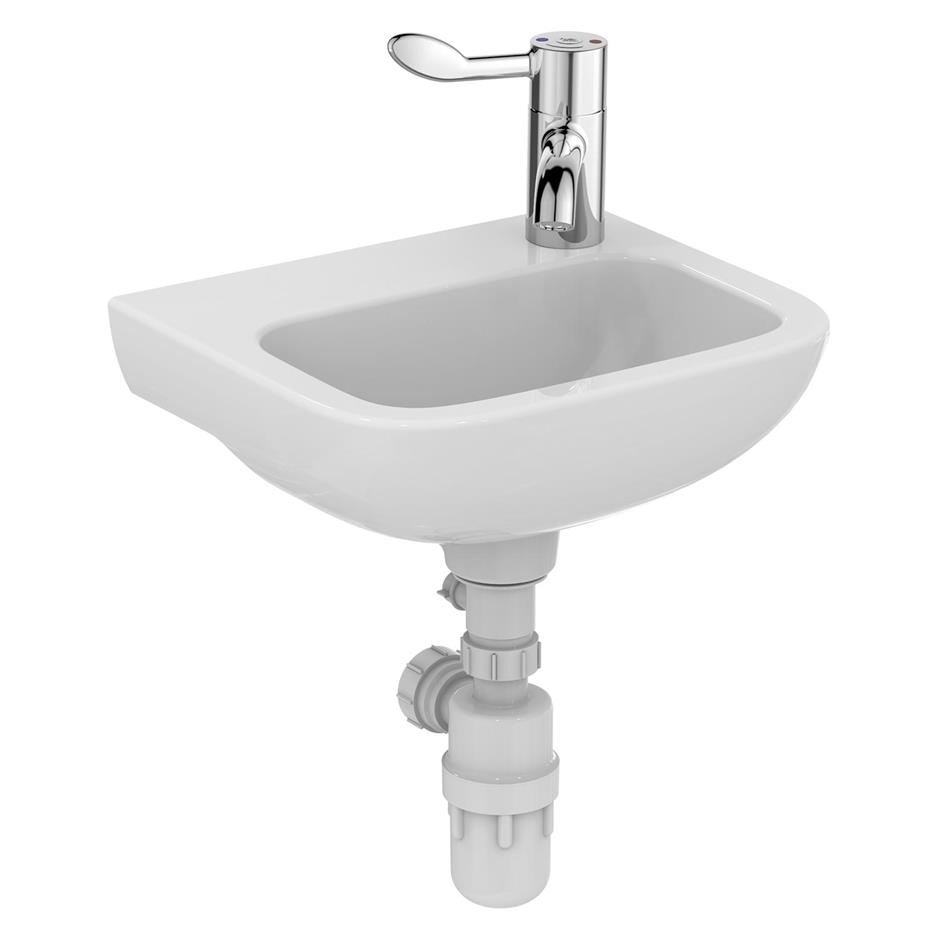

S2473(01) Contour 21 37cm handrinse washbasin left hand taphole no overflow or chainstay hole, bottom outlet

Cistern

S3654(01) Contour 21 close coupled 4.5 litre delay fill single flush syphon cistern for 75cm projection bowl, bottom supply, internal overflow with spatula lever (reversible) and secure cover fastener

WC Seat

S4066(01) Contour 21 toilet seat only, top fixing hinges and retaining buffers

Special notes

For LRV and RAL numbers see Doc M introduction. For right hand corner arrangement substitute S247401 for S247301. 600mm grab rail S6454 x 4 for room set 450mm grab rail S6452 is for back of door White:Ral=9016, LRV=87 Blue:Ral=5011, LRV=6 Red:Ral=3020, LRV=12 Grey:Ral=7005, LRV=19 Charcoal:Ral=7016, LRV=8
