Doc M Contour 21+ Close Coupled Left or Right Hand Packs with Additional Standing Washbasin

S0683(AC) Doc M Contour 21+ close coupled left hand corner pack, WC pan, water saving delay fill cistern with spatula lever, basin, grab rails, hinged support rail with toilet roll holder, seat no cover with retaining buffers, copper tails on TMV3 mixer tap

Use "specify this" to conveniently include the additional washbasin items to the Close Coupled Doc M pack or list all the items in the illustrated column. The room set is described in Part M as "Doc M Close Coupled Pack and additional washbasin for standing users". This provides the unisex wheelchair toilet facility suitable for use where only one washroom exists within a building. TMV3 approved basin mixers to help prevent scalding with integral thermostat to reduce legionella risk. Water saving delay fill 4.5 litre cistern.


  • Doc M delivered in one box
  • BS8300 compliant
  • Optional colour combinations

  • White
    (AC)
  • Blue
    (LI)
  • Grey
    (LJ)
  • Stainless Steel finish
    (MY)
  • Charcoal
    (RN)
Material: Mixed Material
Weight: 69.65Kg
Water Saving: Yes
Capacity: 4.5 Litres

Standards: Vitreous china to BS 3402. BS8300 compiant

View data sheet

Doc M Pack

S0683 Doc M Contour 21+ close coupled left hand corner pack, WC pan, water saving delay fill cistern with spatula lever, basin, grab rails, hinged support rail with toilet roll holder, seat no cover with retaining buffers, copper tails on TMV3 mixer tap

Washbasin

S2252 Portman 21 washbasin 50cm, 1 taphole, no overflow or chainstay hole

Brassware

A6697 Contour 21+ 1 hole thermostatic basin mixer, single sequential lever with copper tails

Waste

S8734 Waste 1¼" brass swivel plug waste, 80mm unslotted tail

Trap

S8910 Trap 1¼" plastic bottle, 75mm seal, multi-purpose outlet

Grab Rails

S6454 Contour 21 grab rail straight 60cm long x 35mm diameter

Washbasin Wall Fixings

E0157 Wall fixing set

Variants

Special notes

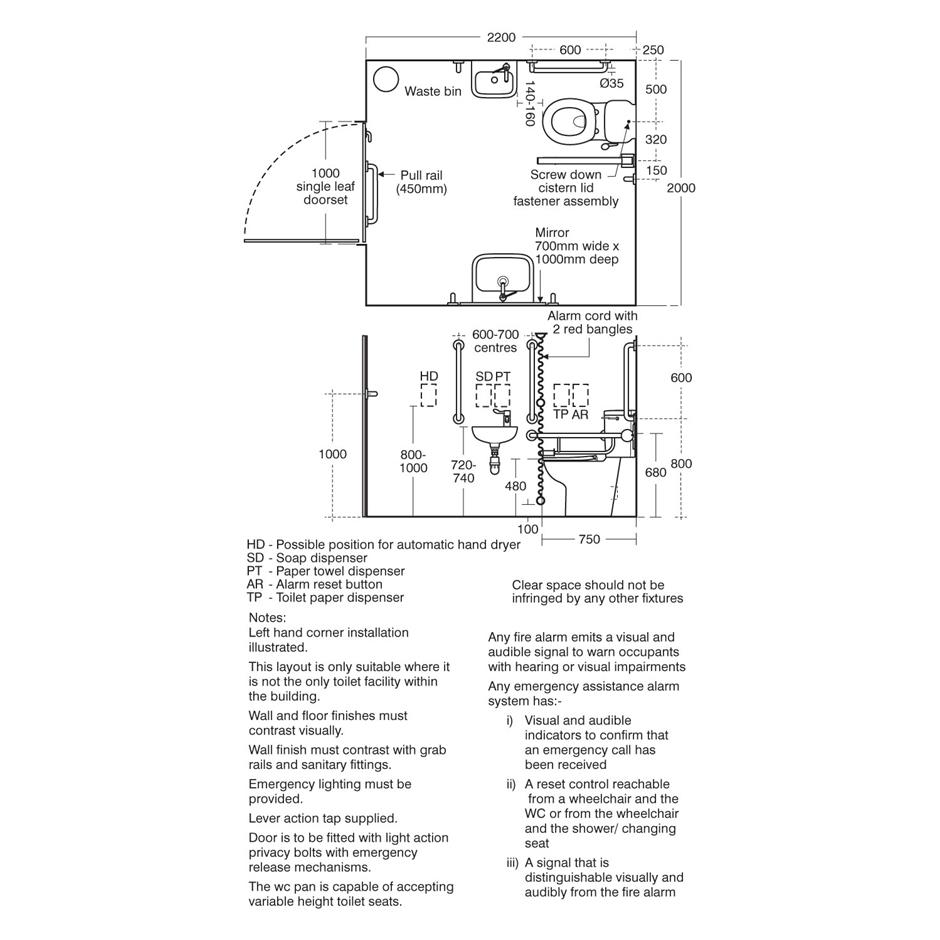

Room set comprises a close coupled wheelchair accessible corner arrangement and additional items for a standing height washbasin fixed at 780-800mm from floor to front rim. Doc M packs are available both right and left hand corner arrangement, illustrated is left hand arrangement. Supplied with layout drawings, detailing the fixing positions necessary for Doc M compliance. Additional rails S6454 x 2.
