Doc M Standard - Individual Items

S0440(HY) Contour 21+ raised height back-to-wall rimless toilet bowl with raised horizontal outlet and anti-microbial glaze

Individual items for left hand Doc M standard pack, back to wall WC with low level cistern and spacer box, choosing the optional washbasin from individual items gives items for right hand Doc M standard pack. All Doc M packs are specifically designed to latest recommendations which call for the tap to be positioned more conveniently on the side of the basin closest to the seated user. For right hand corner arrangement substitute washbasin S247401 for S247301.

For the complete pack that these items relate to see S0689 (left hand) and S0690 (right hand) pack codes.

For individual items see "illustrated" tab

Finishes

White with SmartGuard
(HY)

Material:	Vitreous China
Weight:	22.70Kg
HTM code:	WC H

Data Sheet Spares Where to Buy

WC Pan

S0440(HY) Contour 21+ raised height back-to-wall rimless toilet bowl with raised horizontal outlet and anti-microbial glaze

Ancillary

S9503(67) Restrictor for WC flushpipe

Washbasin

S2474(01) Contour 21 37cm handrinse washbasin right hand taphole no overflow or chainstay hole, bottom outlet

Brassware

A6697(AA) Contour 21+ 1 hole thermostatic basin mixer, single sequential lever with copper tails

Washbasin Wall Fixings

S9110(67) Hangers concealed, Steel

Waste

S8810(01) Waste 1¼" plastic strainer, dished pattern 80mm unslotted tail

Trap

S8910(67) Trap 1¼" plastic bottle, 75mm seal, multi-purpose outlet

Grab Rails

S6454(AC) Contour 21 grab rail straight 60cm long x 35mm diameter (x4)

Grab Rails

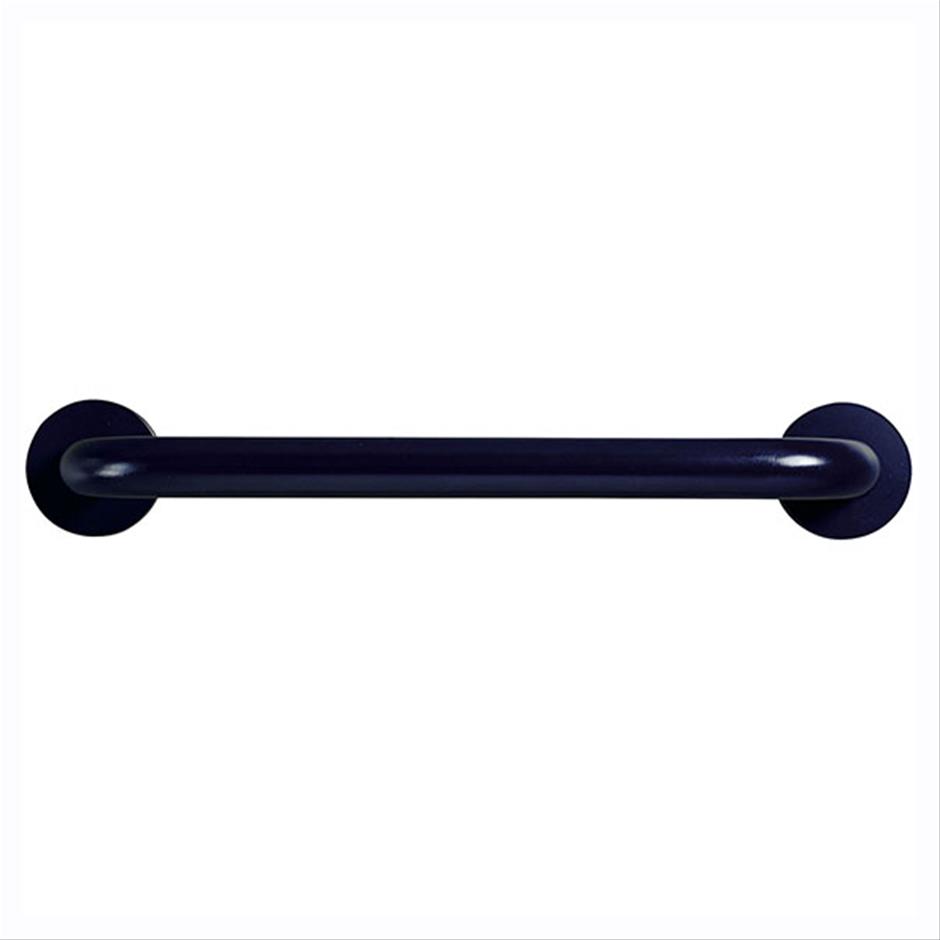

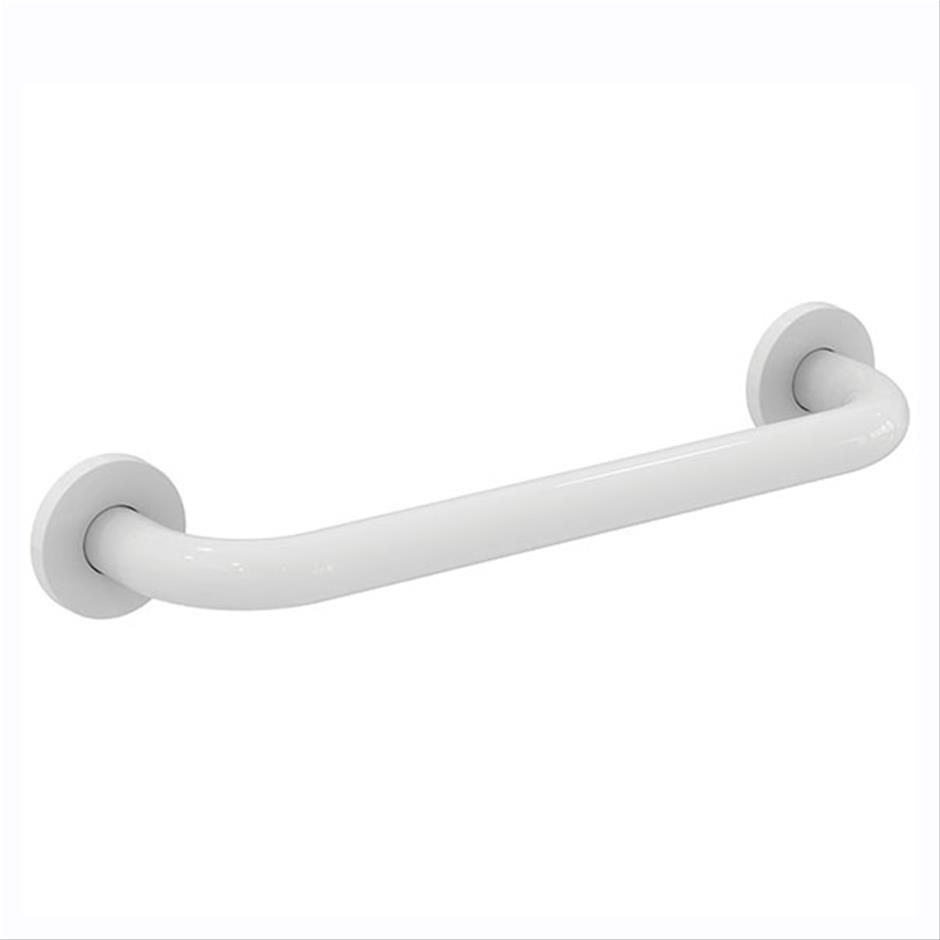

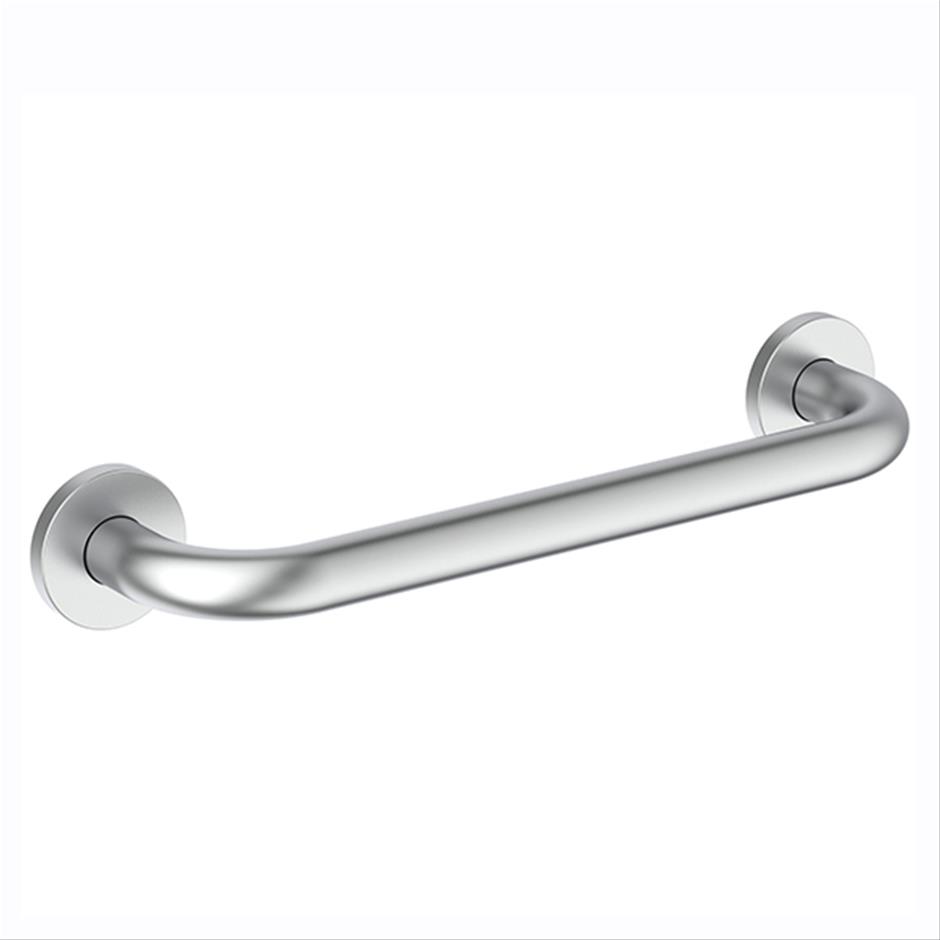

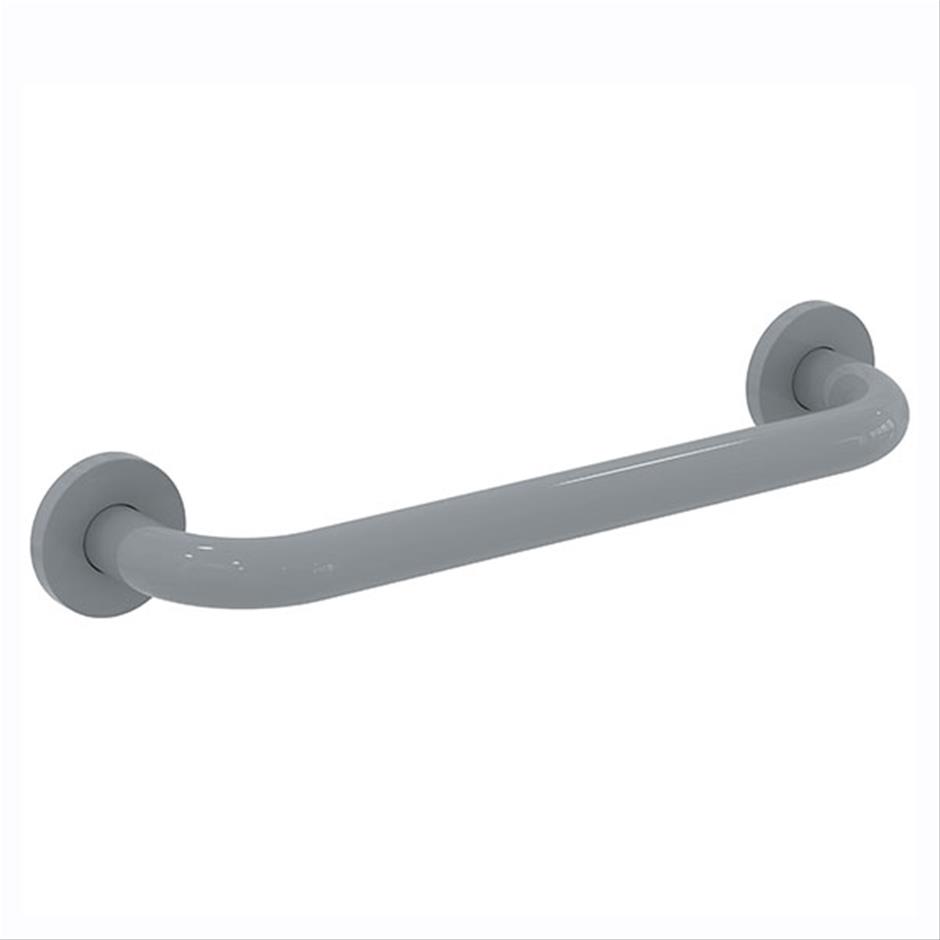

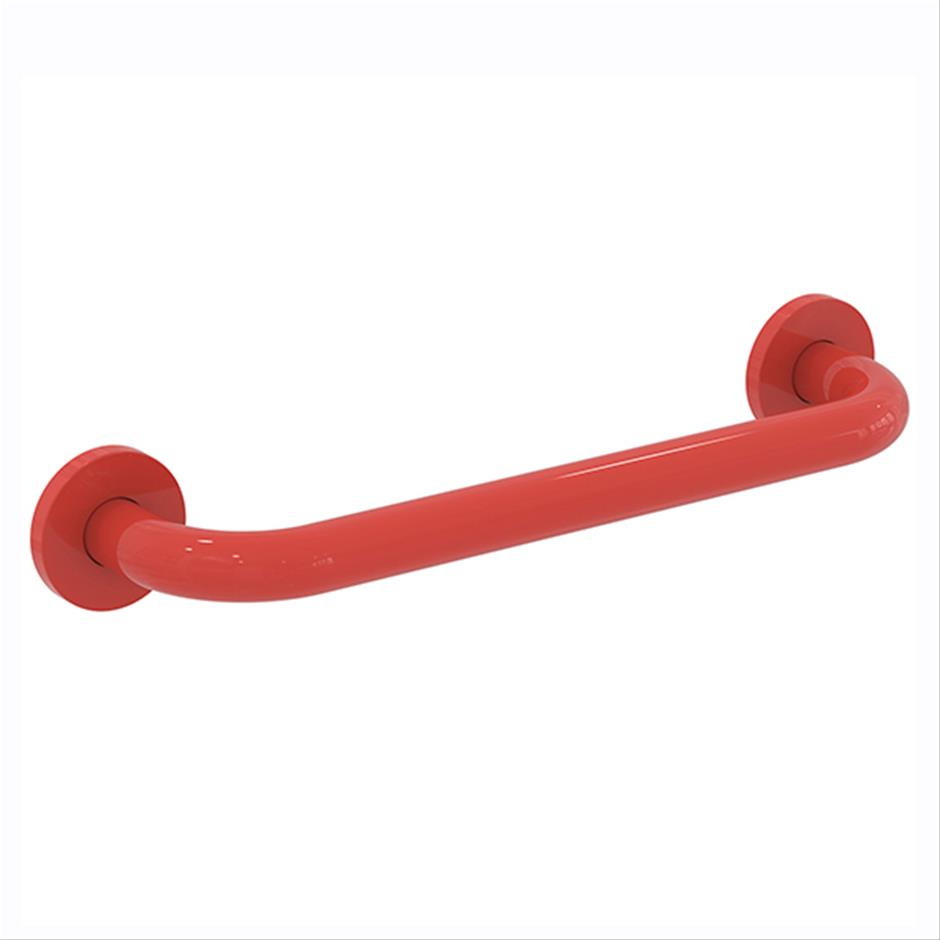

S6452(AC) Contour 21 grab rail straight 45cm long x 35mm diameter

Grab Rails

S6360(AC) Contour 21 hinged support rail 80 x 35mm diameter, Doc M Compliant

Toilet Roll Holder

S6363(AC) Toilet roll holder for Contour 21 hinged arm rail

Cistern

E8972(01) Sandringham 21 low level 6 litre cistern, single flush syphon, side supply and internal overflow

WC Seat

S4066(01) Contour 21 toilet seat only, top fixing hinges and retaining buffers

WC Back Support

S6466(AC) Contour 21 back support rail for 75cm projection WC, 40 x 22 x 35mm diameter tube

WC Cushion

S6884(67) Cushion for back support with clips, new design

WC Extended Flushpipe

S4658(01) Plastic one piece offset flushbend for Doc M Standard WC for use with spacer box

WC Spacer Box

S5375(67) Spacer box, laminate faced unit with access panel for Ventura

Washbasin

S2473(01) Contour 21 37cm handrinse washbasin left hand taphole no overflow or chainstay hole, bottom outlet

Sectors & Solutions

Education

Hotels

Offices

Sports and Leisure

Doc M

Independent Living

Water Saving

Special notes

For LRV and RAL numbers see Doc M introduction. For right hand corner arrangement substitute hand rinse washbasin S247401 for S247301. 600mm grab rail S6454 x 4 for room set 450mm grab rail S6452 is for back of door White:Ral=9016, LRV=87 Blue:Ral=5011, LRV=6 Red:Ral=3020, LRV=12 Grey:Ral=7005, LRV=19 Charcoal:Ral=7016, LRV=8

Material:	Vitreous China
Weight:	7.50 Kg
Width:	370mm
Depth:	300mm
Handed:	Right

Material:	Chrome Plated Brass
Weight:	2.10 Kg
Flow rate:	3.9 Litres per minute @ 3 bar pressure

Material:	Vitreous China
Weight:	7.50 Kg
Width:	370mm
Depth:	300mm
Handed:	Left
Capacity:	4.5 Litres

Material:	Metal
Weight:	0.24 Kg

Material:	Aluminium
Weight:	2.00 Kg

Material:	Aluminium
Weight:	0.62 Kg

Material:	Aluminium
Weight:	3.15 Kg
