Special notes

For LRV and RAL numbers see Doc M introduction. 600mm grab rail S6454 x 3 for room set. 450mm grab rail S6452 for back of door.

Accreditations

Equipment for ambulatory accessible WC compartments for walking impaired people. This installation conforms to Document M of the Building Regulations.

  • For complete pack use pack codes on previous page
  • For individual items use codes below

Illustrated

  1. S3057(01)

    Contour 21 back to wall rimless raised height WC pan with horizontal outlet

  2. S3617(67)

    Conceala 2 cistern 4.5 or 6 litre single flush syphon side supply and internal overflow plastic flushbend, long CP lever

  3. S4066(01)

    Contour 21 seat no cover, top fixing hinges and retaining buffers (Available in White (01), Blue (36), Grey (LJ), Charcoal (RN))

  4. S6454(AC)

    Contour 21 grab rail straight 60cm long x 35mm diameter (Available in Blue (36), White (AC), Grey (LJ), Stainless Steel finish (MY), Charcoal (RN))

  5. S6452(AC)

    Contour 21 grab rail straight 45cm long x 35mm diameter (Available in Blue (36), White (AC), Grey (LJ), Stainless Steel finish (MY), Charcoal (RN))

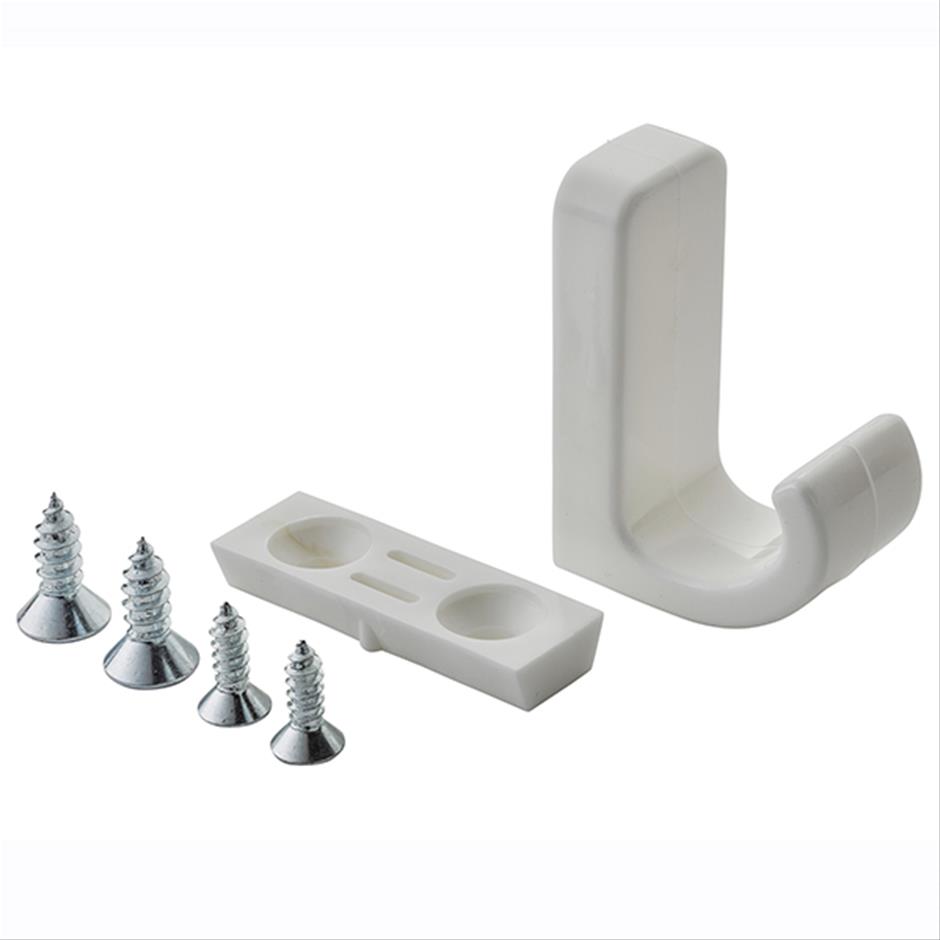

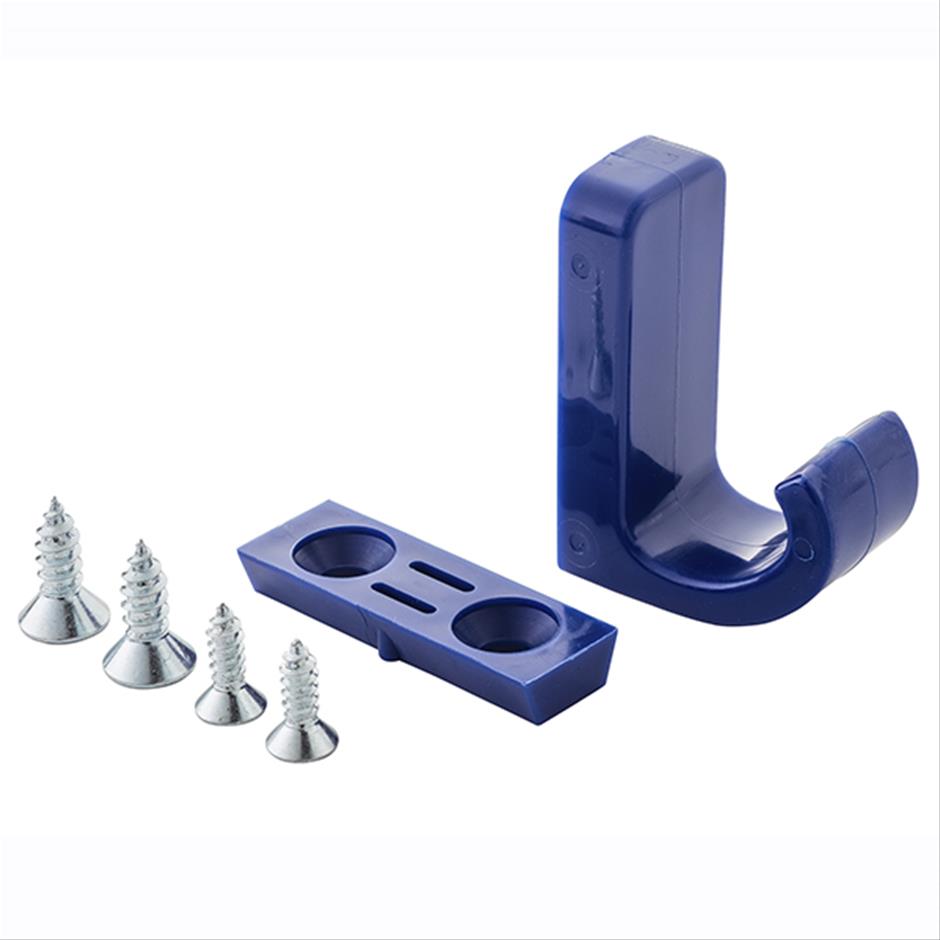

  6. S5093(AC)

    Clothes hook screw to wall, plastic (Available in White (AC), Blue (LI))

Material

Vitreous China

Weights

  1. S3057 20.61 KG
  2. S3617 3.00 KG
  3. S4066 1.55 KG
  4. S6454 2.00 KG
  5. S6452 0.62 KG
  6. S5093 1.76 KG

Finish key

  1. enlarge (01) White
  2. enlarge (36) Blue
  3. enlarge (67) Neutral / No Finish
  4. (AC) White
  5. (LI) Blue
  6. enlarge (LJ) Grey
  7. enlarge (MY) Stainless Steel finish
  8. enlarge (RN) Charcoal

Standards

Vitreous china to BS 3402.

CAD

Download all CAD files
S3057 Contour 21 Back To Wall Rimless Raised Height WC Pan, Fixing Kit View Size Format
Generic
Top 85.9Kb DWG Download
Generic
Left 90.9Kb DWG Download
Generic
Front 77.1Kb DWG Download
Generic
3D 1.2Mb DXF Download
S6452 Contour 21 Grab Rail, Straight 45cm Long x35mm Diameter View Size Format
Generic
Top 70.6Kb DWG Download
Generic
Left 69.8Kb DWG Download
Generic
Front 69.8Kb DWG Download
S6454 Contour 21 Grab Rail, Straight 60cm Long x35mm Diameter View Size Format
Generic
Top 70.8Kb DWG Download
Generic
Left 69.6Kb DWG Download
Generic
Front 69.8Kb DWG Download

BIM, Revit and 3D PDF

Download all CAD files
Product File type Size Format
S3057 BIM 664.9Kb IFC Download
S3057 BIM 1016.0Kb RFA Download
S3617 BIM 408.0Kb RFA Download
S3617 BIM 500.0Kb RFA Download
S3635 BIM 408.0Kb RFA Download
S3635 BIM 500.0Kb RFA Download
S4065 BIM 36.4Kb IFC Download
S4065 BIM 324.0Kb RFA Download
S4066 BIM 64.7Kb IFC Download
S4066 BIM 340.0Kb RFA Download
S6452 BIM 548.0Kb RFA Download
S6452 BIM 320.0Kb RFA Download
S6454 BIM 548.0Kb RFA Download
S6454 BIM 320.0Kb RFA Download

Supporting Documents

Download all Documents
Product File type Size Format
S3057 Data Sheet 153.3Kb PDF View Download
View larger image Doc M Ambulant  Back To Wall  - Individual Items
This image is for illustrative purposes only

Frequently used applications

  • Education Education
  • Factory Factory
  • General Healthcare General Healthcare
  • Hotels Hotels
  • Office Office
  • Public Building Public Building
  • Pubs and Clubs Pubs and Clubs
  • Retail Retail
  • Sports and Leisure Sports and Leisure

Features

  • DocM DocM
  • Special Care Special Care
  • Water Saving Water Saving
