Portman 21 40cm Washbasin

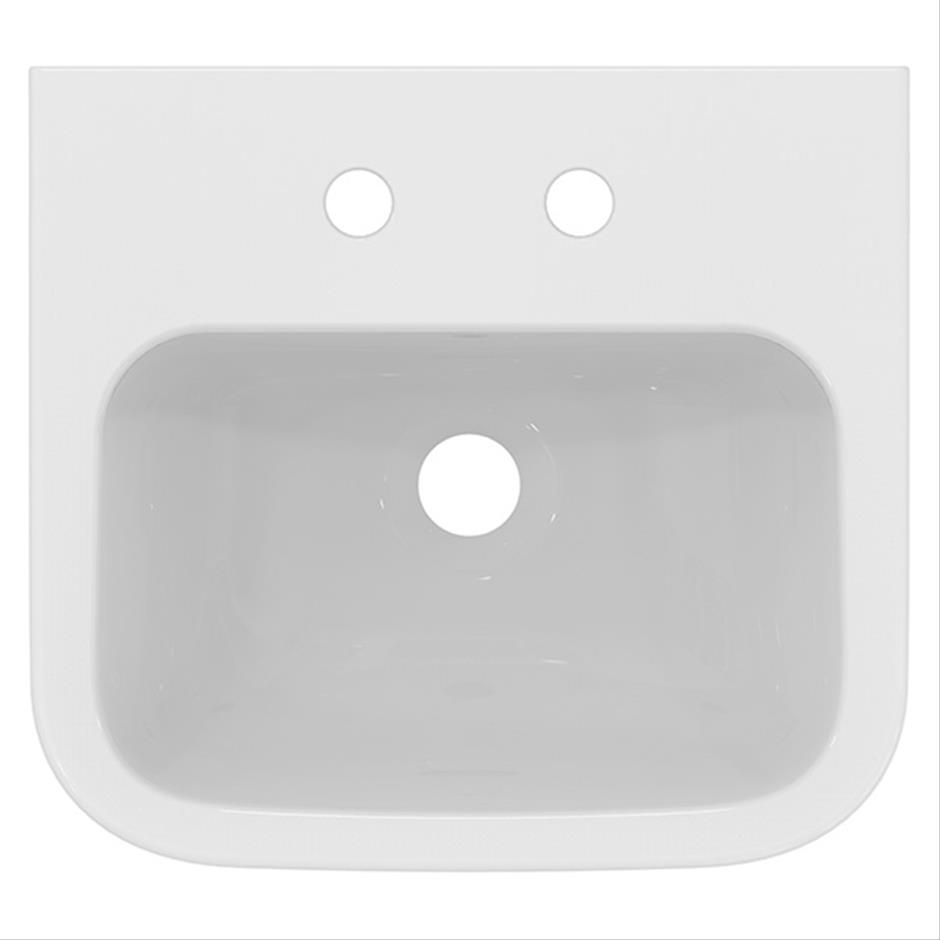

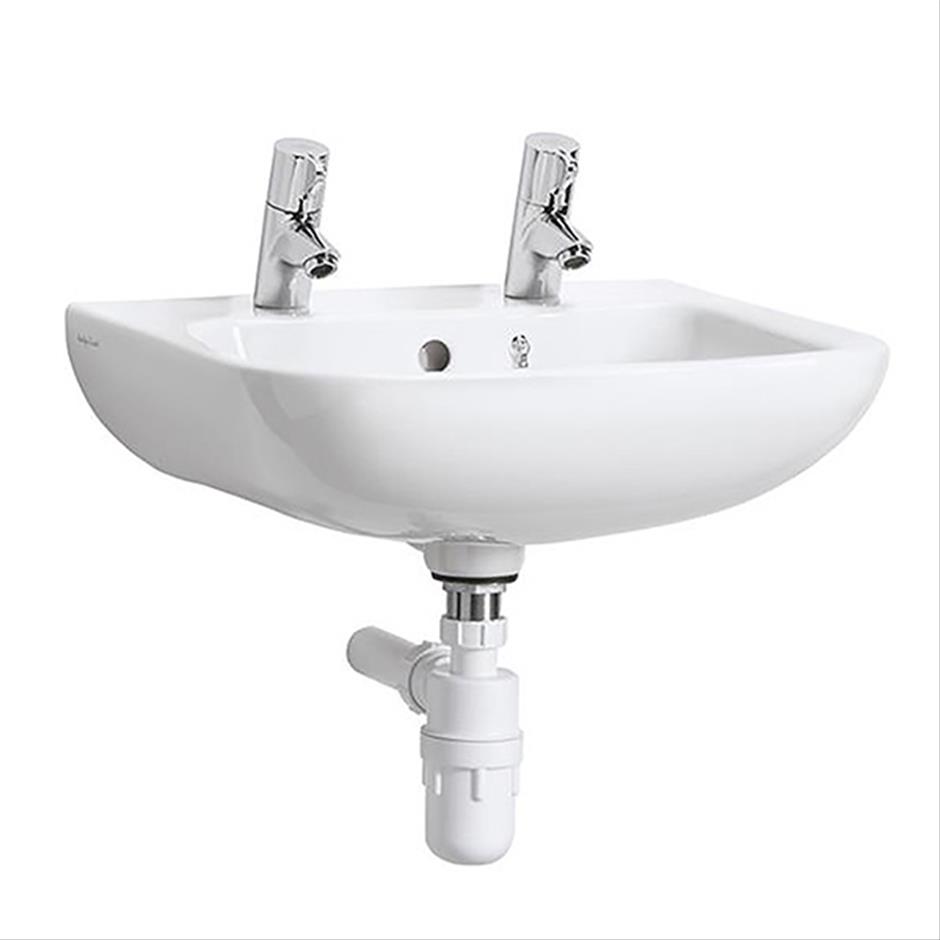

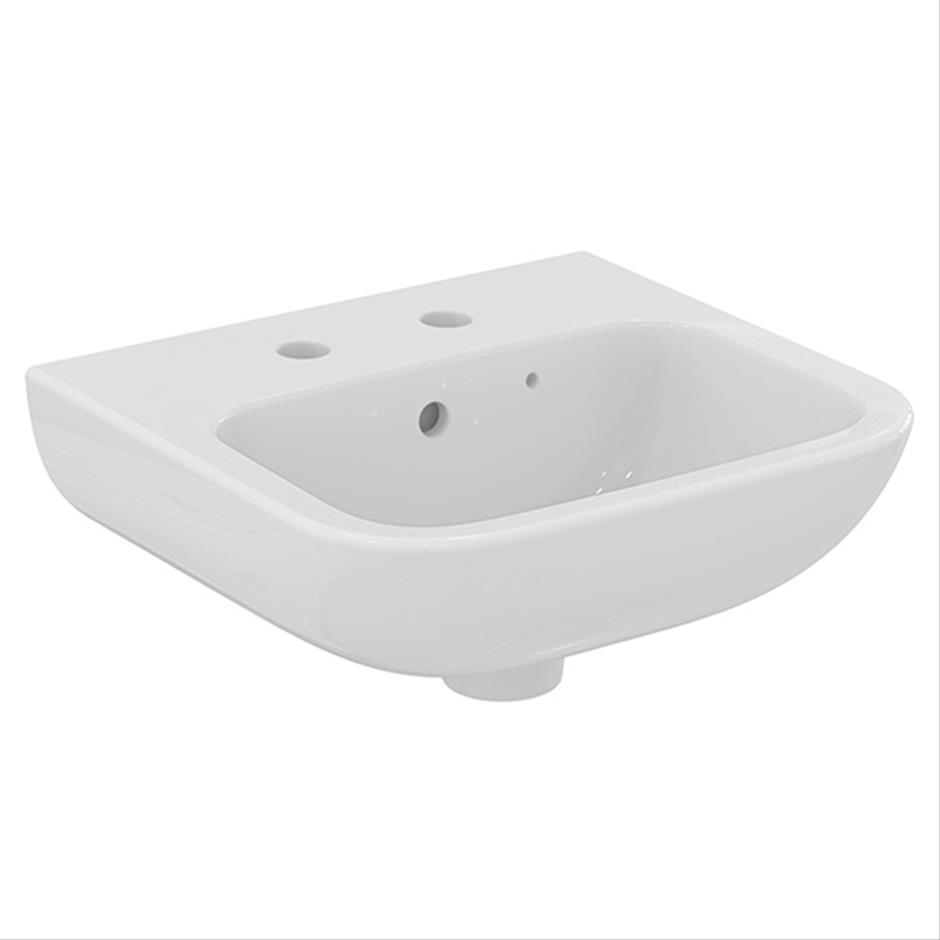

S2317(01) Portman 21 washbasin 40cm, 2 tapholes at 100mm with overflow and chainstay hole

Modern design washbasin in vitreous china in 3 sizes, 60cm, 50cm and 40cm.


  • Commercial and domestic use
  • Three sizes available
  • 6 taphole options
  • Anti vandal applications
  • With or without overflow
  • Option for wall or panel fixing set

  • White
    (01)
Material: Vitreous China
Weight: 9.70Kg
Width: 40mm
Depth: 37mm


Data Sheet Spares Where to Buy

Washbasin

S2317(01) Portman 21 washbasin 40cm, 2 tapholes at 100mm with overflow and chainstay hole

Washbasin Wall Fixings

E0157(67) Wall fixing set

Waste

S8800(AA) Waste 1¼" plastic waste with bead chain and plug, 80mm slotted tail, bolt stay

Washbasin Wall Fixings

E0062(67) Basin fixing set for IPS panels or block walls

Brassware

B8267(AA) Avon 21 inclined non-concussive washbasin pillar taps (pair) with dual hot and cold indices per tap, self closing push button, water saving anti-vandal spout regulated to 3.7 litres per minute maximum

Waste

S8733(AA) Waste 1¼" brass anti theft swivel plug waste, 80mm slotted tail

Thermostatic Valve

A5900(AA) TMV thermostatic mixing valve, 15mm

Washbasin Support Bracket

S9138(67) Bracket concealed with clamps and centre waste support for Portman 21, 40cm washbasins

Variants

Special notes

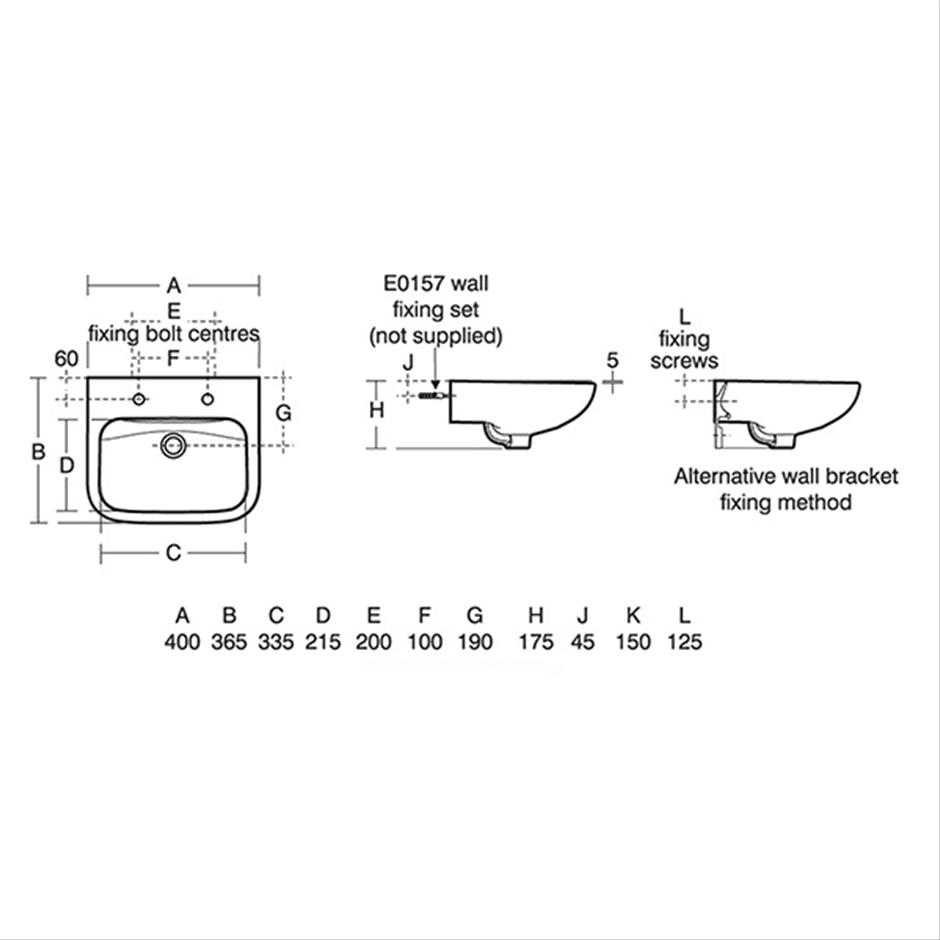

S9138 bracket for 40cm basins Recommended fixing heights (floor to front rim); Nursery use 600mm Infant use 700mm Junior use 750mm Senior/adult use 780-800mm. Washbasin wall mounted using E015767 wall fixing set or panel mounted using E006267 fixing set
