Special notes

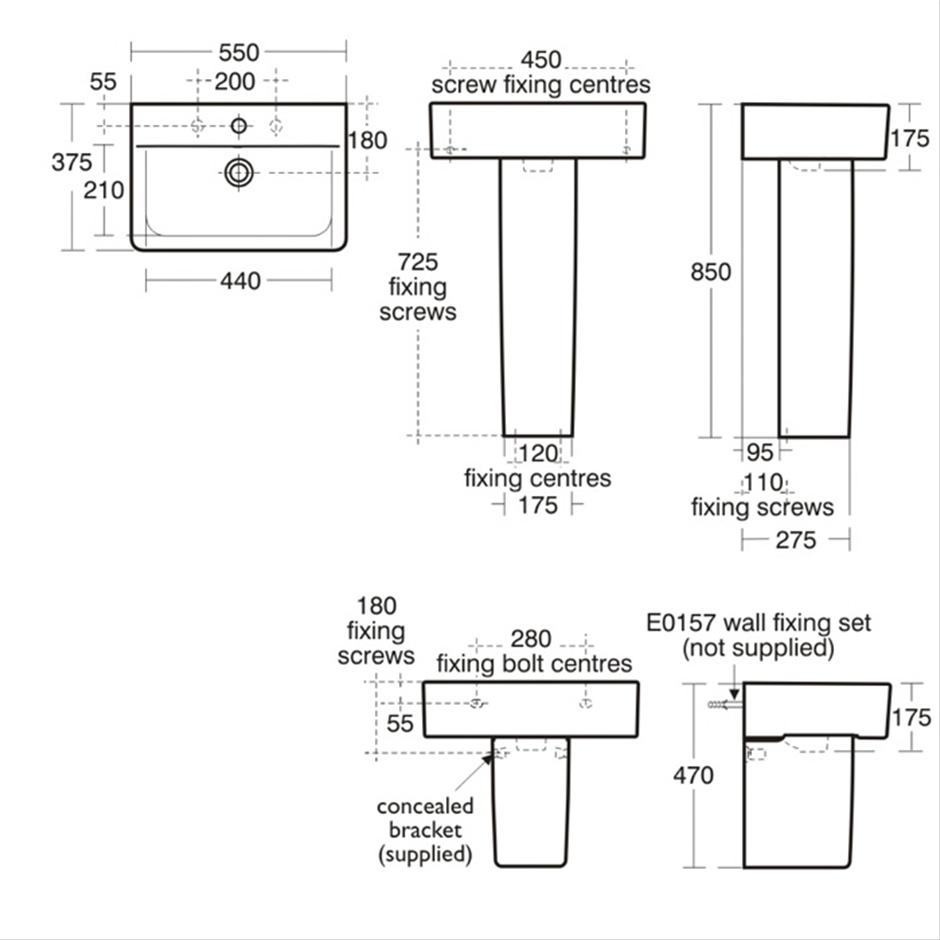

Washbasin wall mounted using E0157 wall fixing set, with semi-pedestal screwed to wall or full pedestal mounted using 2 screws through the back of the basin (not supplied)

Designer

Robin Levien, RDI

A soft square is the key characteristic of the Cube pedestal basins.
Contemporary design wall, pedestal or semi-pedestal washbasin with space saving short projection.

  • Domestic and commercial use
  • One and two taphole options
  • Part of the extensive Concept suite
  • Space saving design

Illustrated

  1. E7992(01)

    Concept Cube 55cm short projection washbasin, 1 taphole with overflow

  2. E7839(01)

    Concept semi-pedestal

  3. E0157(67)

    Wall fixing set

  4. B9915(AA)

    Concept Blue washbasin mixer 1 hole with pop-up waste

  5. S8910(67)

    Trap 1¼" plastic bottle, 75mm seal, multi-purpose outlet

Configuration options

  1. E7837(01)

    Concept full pedestal

Material

Vitreous China

Weights

  1. E7992 15.09 KG
  2. E7839 6.88 KG
  3. E0157 0.16 KG
  4. B9915 1.89 KG
  5. S8910 0.20 KG

Capacity

4

Finish key

  1. enlarge (01) White
  2. enlarge (67) Neutral / No Finish
  3. enlarge (AA) Chromium plated

Standards

Vitreous china to BS 3402. Washbasin to BS EN 14688 & BS EN 31

Alternate options

  1. Default configuration

    1. E7885(01)

      Concept Cube 55cm short projection washbasin, 2 tapholes with overflow

    2. E7837(01)

      Concept full pedestal

    3. B9925(AA)

      Concept washbasin pillar taps

    4. E6760(AA)

      Waste 1¼" brass waste with chain and plug, 80mm slotted tail, bolt stay (Available in Chromium plated (AA))

    5. S8920(67)

      Trap 1¼" plastic resealing bottle, 75mm seal, multi-purpose outlet

    Configuration options

    1. E7839(01)

      Concept semi-pedestal

    2. E0157(67)

      Wall fixing set

    3. B7884(AA)

      Ceraplan basin pillar taps with lever handles

    4. B5105(AA)

      Cone basin pillar taps with lever handles
