Special notes

This washbasin is not suitable for separate pillar taps. Washbasin mounted on underside of countertop using S9118 fixing clips. Joint sealed using waterproof sealant (not supplied). Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device see A5900AA

Classic under-countertop washbasin with overflow

  • Domestic and commercial use
  • Classic design

Illustrated

  1. S2565(01)

    Marlow 48cm washbasin with unglazed rim

  2. S8733(AA)

    Waste 1¼" brass anti theft swivel plug waste, 80mm slotted tail

  3. S8910(67)

    Trap 1¼" plastic bottle, 75mm seal, multi-purpose outlet

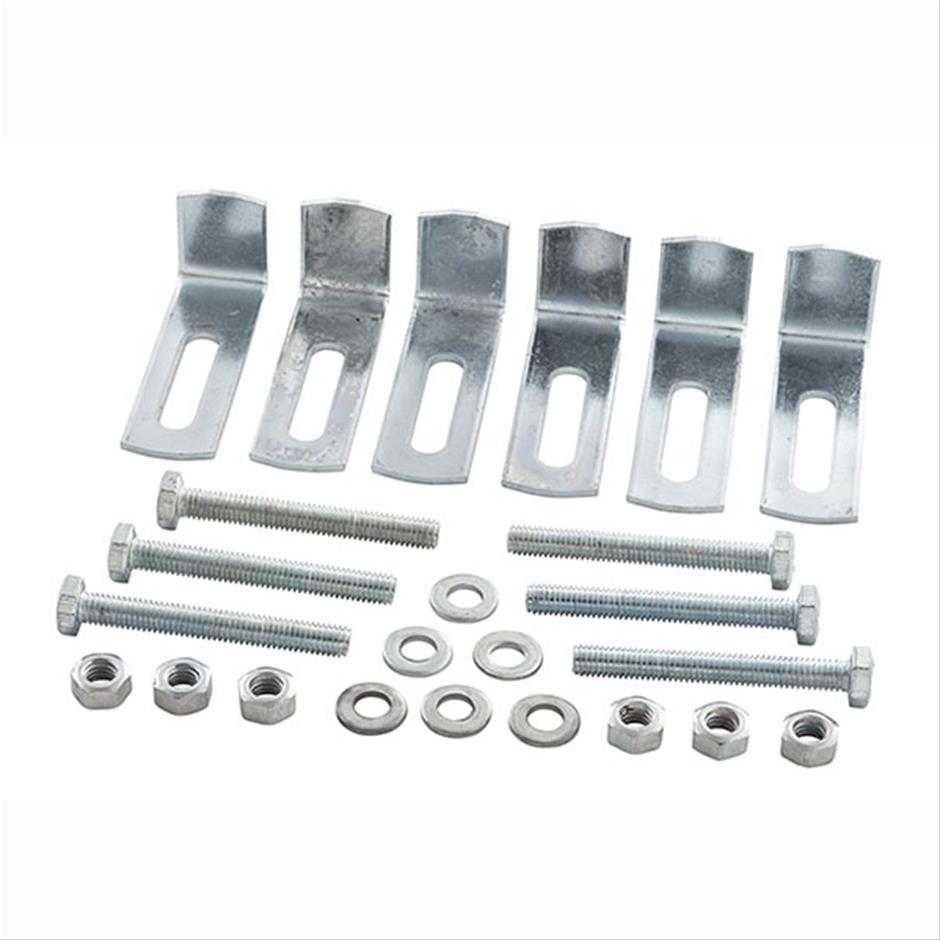

  4. S9118(67)

    Fixing clips and bolts (set of 6)

Configuration options

  1. B4447(AA)

    Sandringham SL washbasin mixer 1 hole, lever operated with pop-up waste, 5 litre per minute flow regulator aerator fitted

  2. S8920(67)

    Trap 1¼" plastic resealing bottle, 75mm seal, multi-purpose outlet

  3. S8722(AA)

    Waste 1¼" brass strainer waste, 80mm slotted tail

  4. A5900(AA)

    TMV Thermostatic mixing valve 15mm

Material

Vitreous China

Weights

  1. S2565 7.92 KG
  2. S8733 0.35 KG
  3. S8910 0.20 KG
  4. S9118 0.35 KG

Capacity

6

Finish key

  1. enlarge (01) White
  2. enlarge (67) Neutral / No Finish
  3. enlarge (AA) Chromium plated

Standards

Vitreous china to BS 3402

CAD

Download all CAD files
B4447 Sandringham SL Washbasin 1 Taphole, Pop-up Waste, Single Lever 5 LPM aerator View Size Format
Generic
Right 89.0Kb DWG Download
S2565 Marlow Under Countertop Washbasin, 48cm View Size Format
Generic
Top 24.8Kb DWG Download
Generic
Left 23.5Kb DWG Download
Generic
Front 24.1Kb DWG Download

BIM, Revit and 3D PDF

Download all CAD files
Product File type Size Format
A5900 BIM 30.0Kb IFC Download
A5900 BIM 348.0Kb RFA Download
B4447 BIM 1.3Mb RFA Download
B4447 BIM 664.0Kb RFA Download
S2565 BIM 440.0Kb RFA Download
S8722 BIM 452.0Kb RFA Download
S8722 BIM 200.0Kb IFC Download
S8733 BIM 348.0Kb RFA Download
S8733 BIM 165.4Kb IFC Download
S8910 BIM 22.2Kb IFC Download
S8910 BIM 288.0Kb RFA Download
S8920 BIM 22.2Kb IFC Download
S8920 BIM 288.0Kb RFA Download

Supporting Documents

Download all Documents
Product File type Size Format
S2565 Data Sheet 141.9Kb PDF View Download
B4447 Installation Guide 844.4Kb PDF View Download
B4447 Product certificate 139.0Kb PDF View Download
View larger image Marlow 48cm Under-Countertop Washbasin
This image is for illustrative purposes only
