Special notes

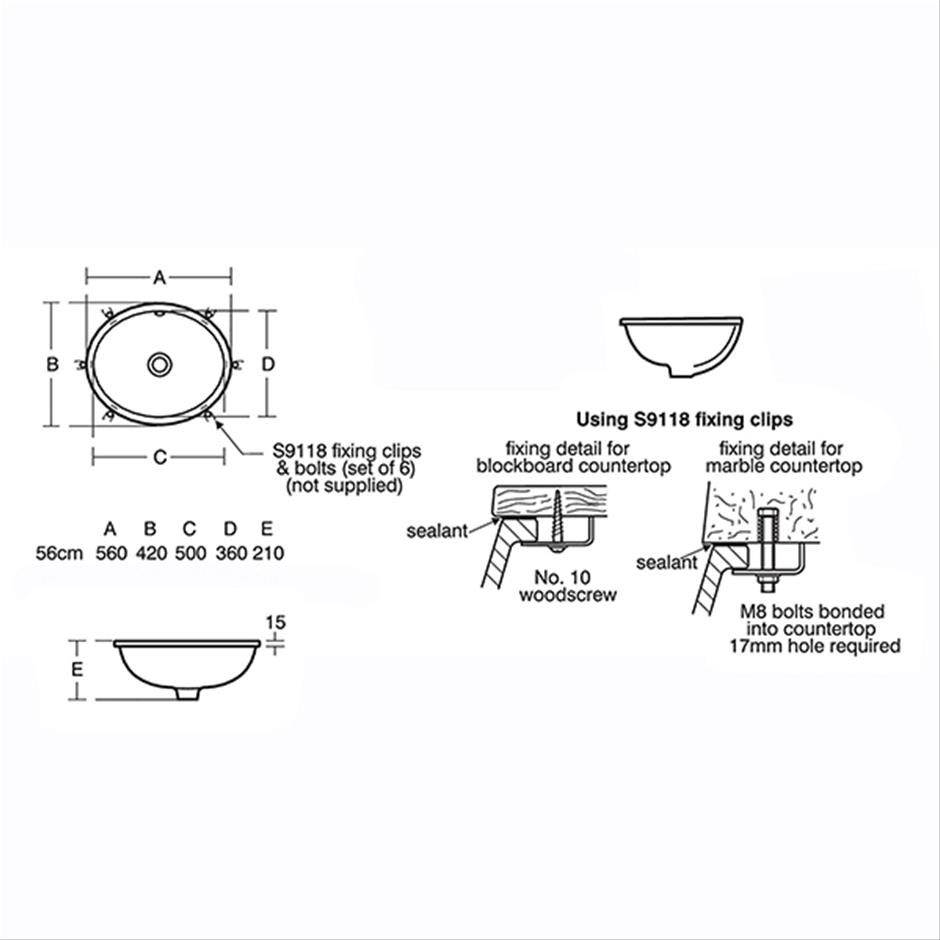

This washbasin is not suitable for separate pillar taps. Washbasin mounted on underside of countertop using S9118 fixing clips. Joint sealed using waterproof sealant (not supplied).

Classic under-countertop washbasin with overflow

  • Comestic and commercial use
  • Classic Design

Illustrated

  1. S2560(01)

    Marlow 56cm washbasin with unglazed rim

  2. S8720(AA)

    Waste 1¼" brass strainer waste, 80mm unslotted tail (Available in Chromium plated (AA))

  3. S8910(67)

    Trap 1¼" plastic bottle, 75mm seal, multi-purpose outlet

  4. S9118(67)

    Fixing clips and bolts (set of 6)

Configuration options

  1. B4447(AA)

    Sandringham SL washbasin mixer 1 hole, lever operated with pop-up waste, 5 litre per minute flow regulator aerator fitted

  2. S8920(67)

    Trap 1¼" plastic resealing bottle, 75mm seal, multi-purpose outlet

  3. A4183(AA)

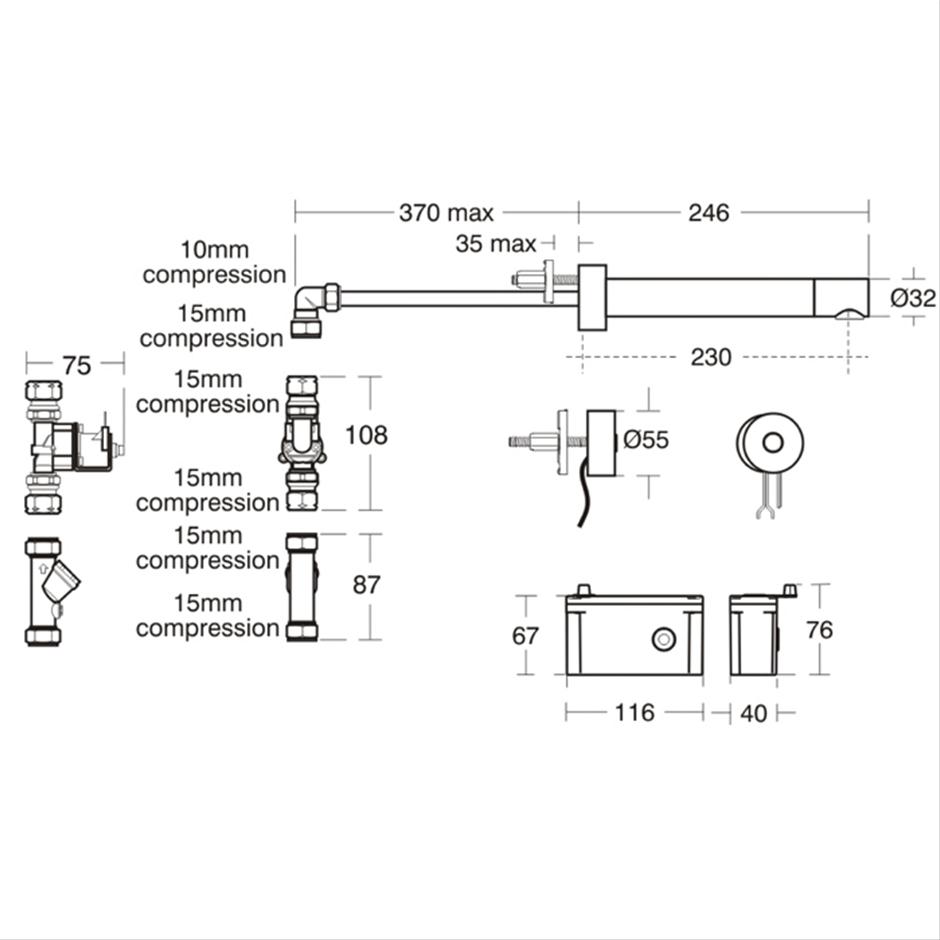

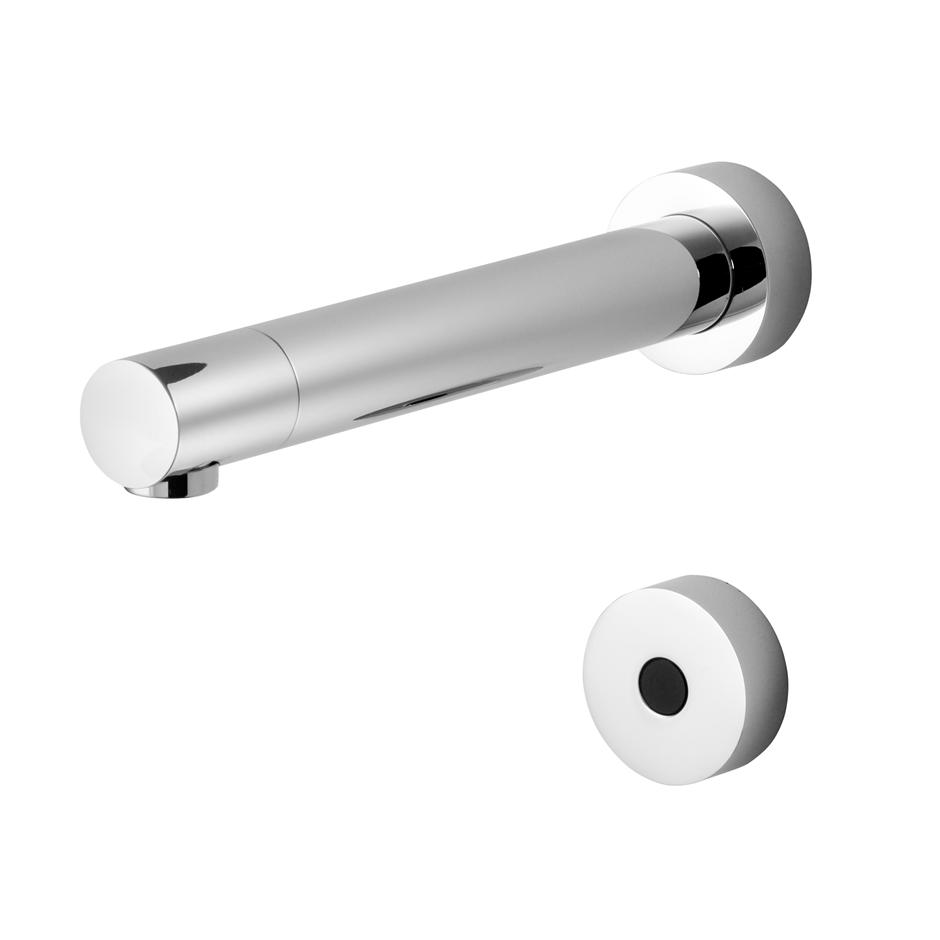

    Sensorflow 21 tubular panel mounted 230mm projection spout anti splash or aerated outlet remote panel sensor, copper tube inlets, mains (Available in Brushed Steel (GN))

  4. A5900(AA)

    TMV Thermostatic mixing valve 15mm

Material

Vitreous China

Weights

  1. S2560 10.00 KG
  2. S8720 0.23 KG
  3. S8910 0.20 KG
  4. S9118 0.35 KG

Capacity

10

Finish key

  1. enlarge (01) White
  2. enlarge (67) Neutral / No Finish
  3. enlarge (AA) Chromium plated
  4. enlarge (GN) Brushed Steel

Standards

Vitreous china to BS 3402

CAD

Download all CAD files
S2560 Marlow Under Countertop Washbasin, 56cm View Size Format
Generic
3.3Mb DXF Download
Generic
Top 26.0Kb DWG Download
Generic
Left 23.3Kb DWG Download
Generic
Front 24.0Kb DWG Download

BIM, Revit and 3D PDF

Download all CAD files
Product File type Size Format
A4183 BIM 312.0Kb RFA Download
A4183 BIM 384.0Kb RFA Download
A5900 BIM 30.0Kb IFC Download
A5900 BIM 348.0Kb RFA Download
B4447 BIM 1.3Mb RFA Download
B4447 BIM 664.0Kb RFA Download
S2560 BIM 1.9Mb RFA Download
S8720 BIM 452.0Kb RFA Download
S8720 BIM 199.5Kb IFC Download
S8910 BIM 22.2Kb IFC Download
S8910 BIM 288.0Kb RFA Download
S8920 BIM 22.2Kb IFC Download
S8920 BIM 288.0Kb RFA Download

Supporting Documents

Download all Documents
Product File type Size Format
S2560 Data Sheet 141.0Kb PDF View Download
A4183 Installation Guide 951.5Kb PDF View Download
A4183 Installation Guide 853.3Kb PDF View Download

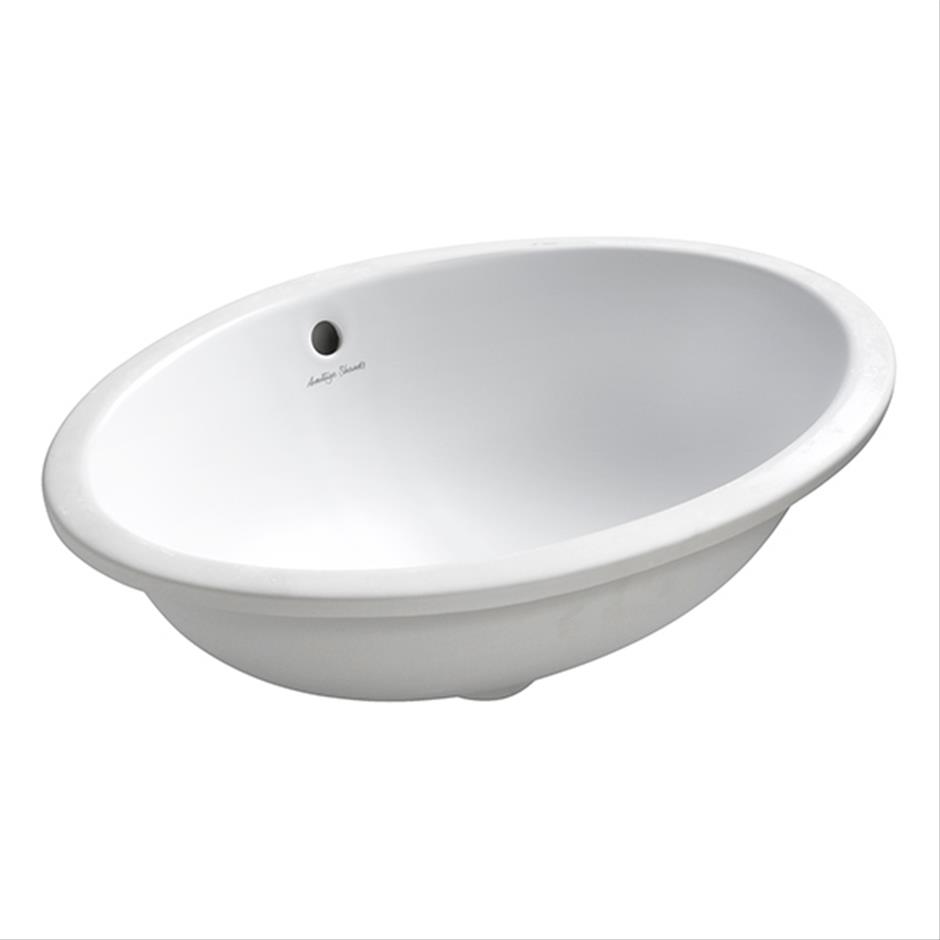

View larger image Marlow 56cm Under-Countertop Washbasin
This image is for illustrative purposes only
