(HBN 00-10) Kinloch Trough Urinal Central Outlet

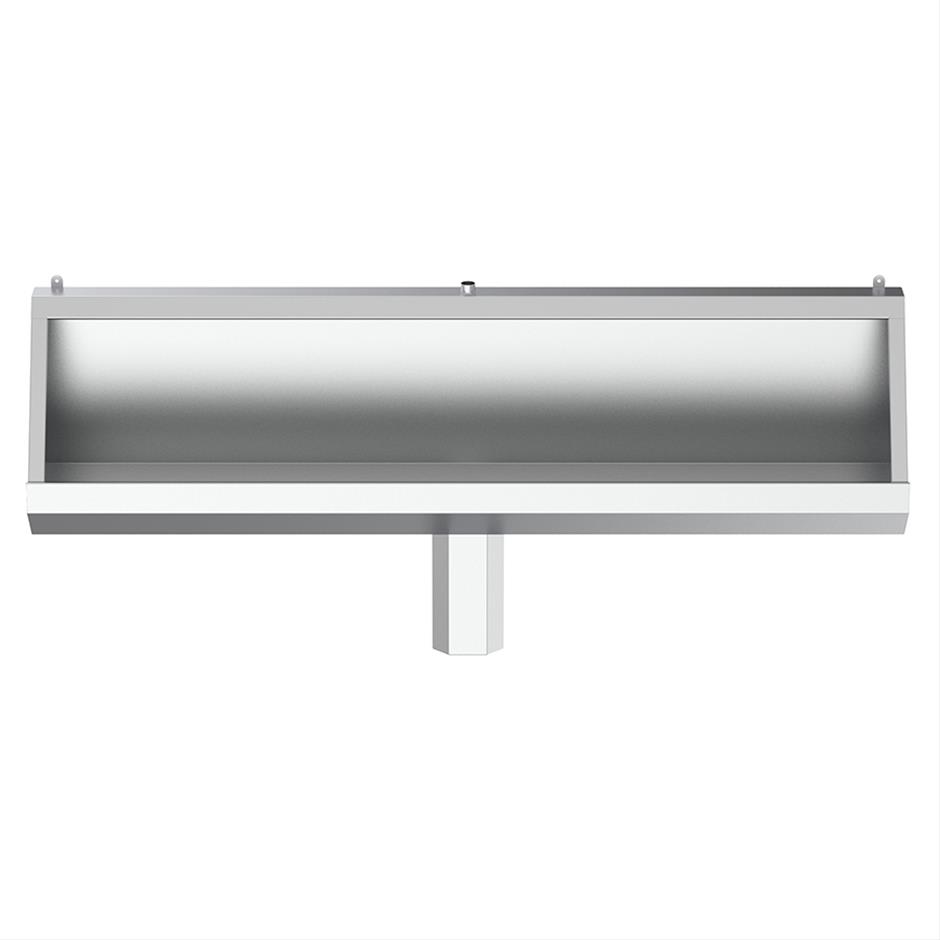

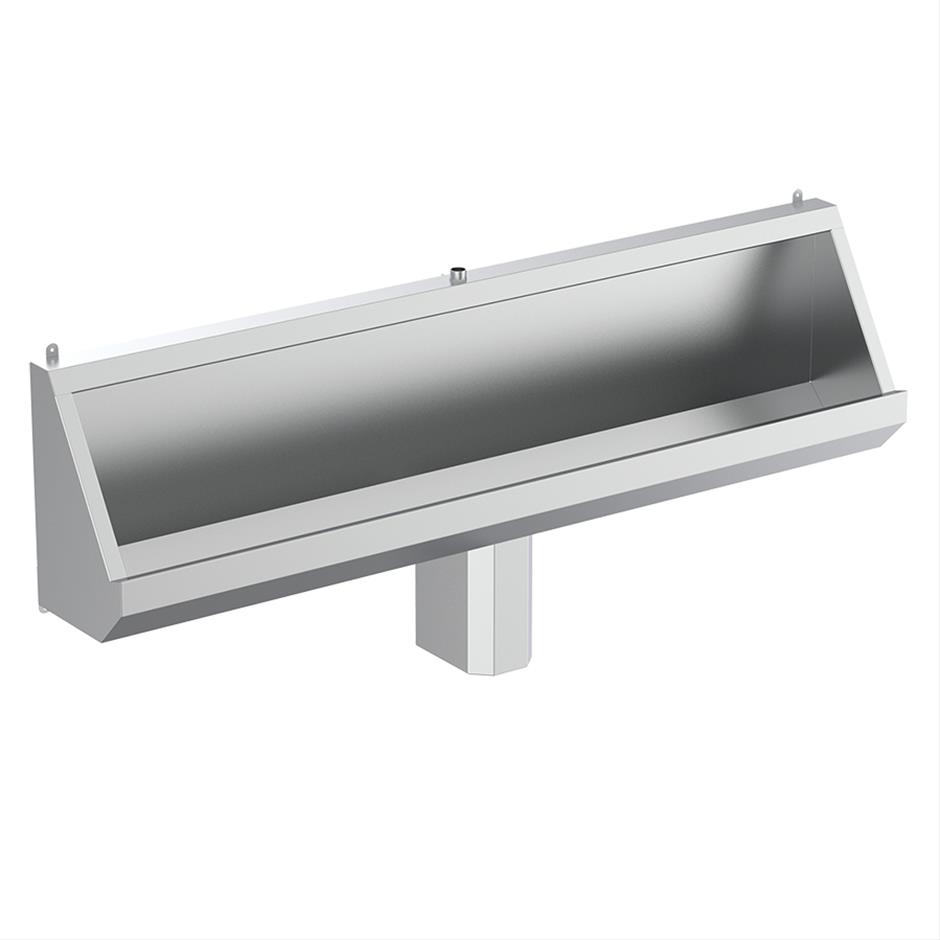

S1288(MY) Kinloch urinal 180cm long complete with 2" domed strainer waste, centre outlet, complete with flushpipes and autocistern

This economically priced trough urinal in stainless steel is available in 3 standard sizes, 120cm, 180cm, 240cm all with centre outlets. Two or more urinals may be fitted together on the same wall using stainless steel cover strips or on adjacent walls using corner plinth. Please click Specify this and follow the guidance. Please indicate exposed or concealed flushpipes, urinals above 240cm 2 autocisterns may be used.


  • Stainless steel
  • Three standard sizes
  • Cost effective

  • Stainless Steel
    (MY)
Material: Stainless Steel
Weight: 24.00Kg

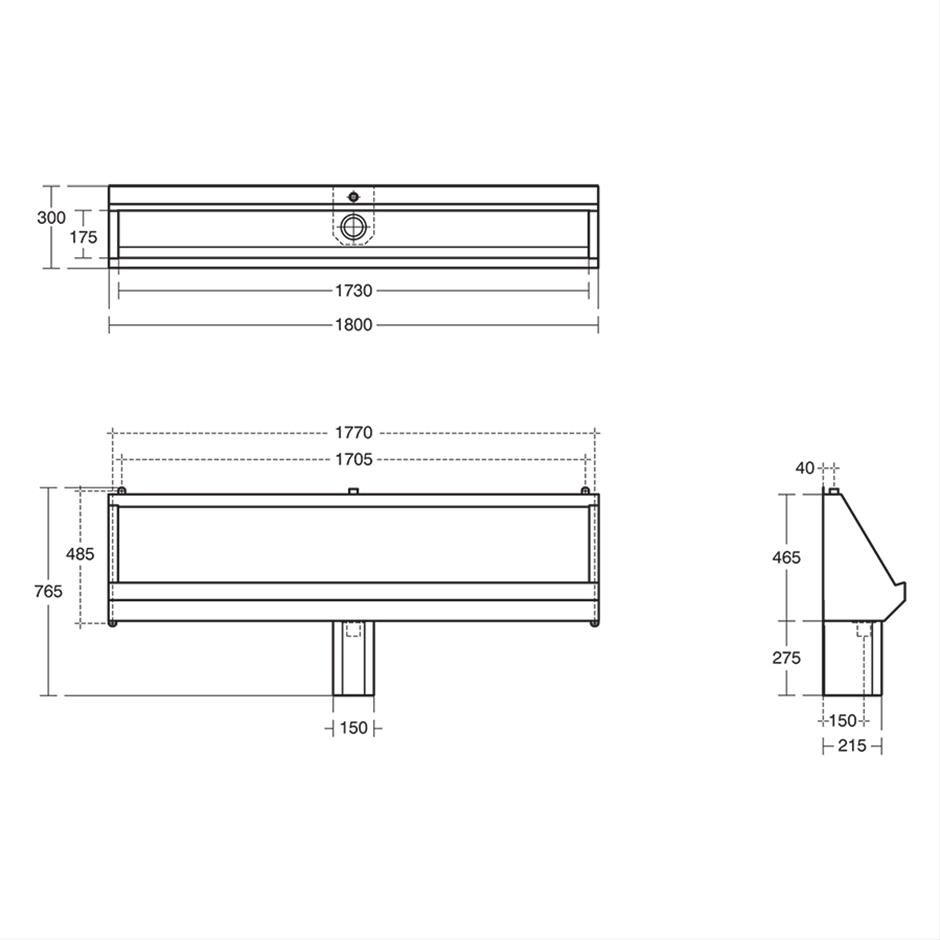

Length: 1800mm

Standards: Manufactured from 1.5mm Stainless Steel 1.4301 (304) to BS EN 10088: part 2: 2005. NHS specification HBN 00-10. EN 13407.

Data Sheet Spares Where to Buy

Trough Urinal

S1288(MY) Kinloch urinal 180cm long complete with 2" domed strainer waste, centre outlet, complete with flushpipes and autocistern

Trough Urinal Corner Plinth

S1309(MY) Kinloch urinal corner plinth, stainless steel

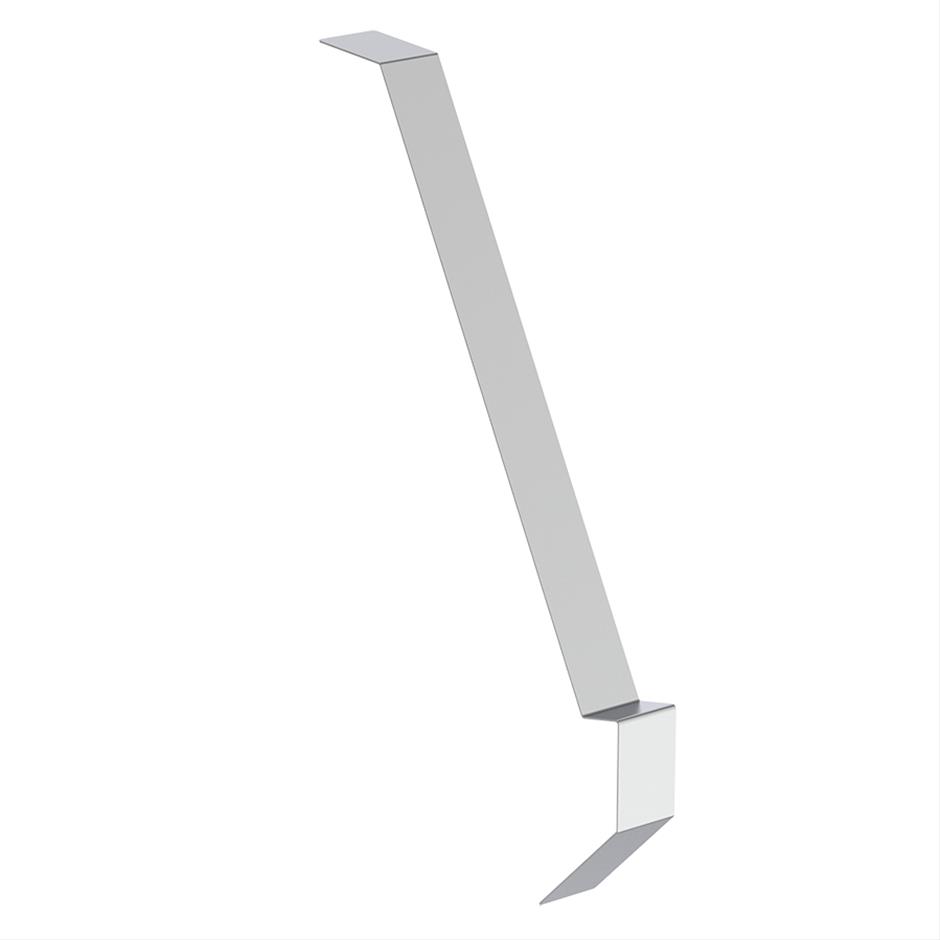

Trough Urinal Joining Strip

S1310(MY) Kinoloch urinal cover strip to join separate urinals

Variants

Special notes

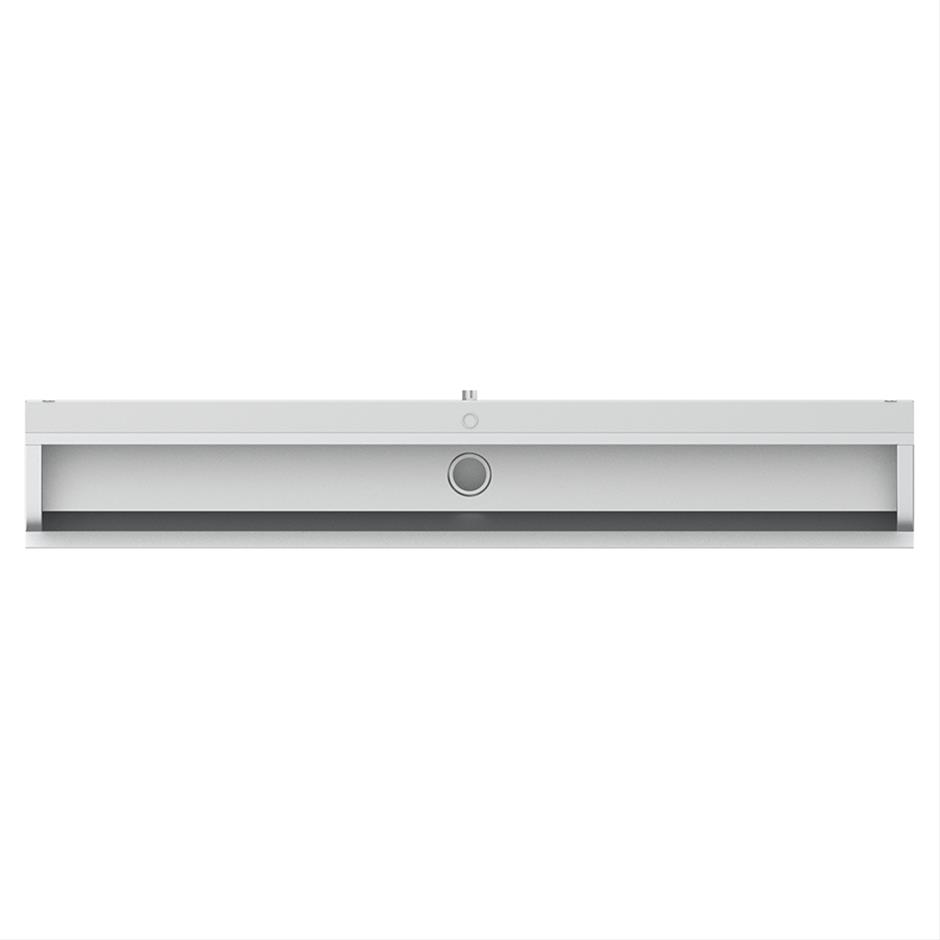

Kinloch urinal complete with central domed strainer waste 2in BSP outlet. Knock out inlet position allows pipework to be exposed or concealed. Urinals on 2 or more walls can be joined using S1310MY stainless steel cover strip and S1309MY stainless steel corner plinth.

Variants
