Doc M Back To Wall Enlarged Cubicle

S0440(HY) Contour 21+ raised height back-to-wall rimless toilet bowl with raised horizontal outlet and anti-microbial glaze

Equipment for extra wide enlarged WC cubicle suitable for ambulant disabled, people with babies or small children and/or people with large bags/luggage. This installation conforms to Document M of the Building Regulations. The WCs are DEFRA water technology listed


  • Ambulatory accessible
  • Rimless WC

  • White with SmartGuard
    (HY)
Material: Vitreous China
Weight: 22.70Kg
HTM code: WC H

Standards: Vitreous china to BS 3402

  • When used with a 6/4 litre or a 4.5 litre or a 4.5/3 litre or a 4/2.6 litre Cistern

  • 4.5/3 litre flush with Supply, Conventional fill, Pneumatic


Data Sheet Spares Where to Buy

WC Pan

S0440(HY) Contour 21+ raised height back-to-wall rimless toilet bowl with raised horizontal outlet and anti-microbial glaze

Grab Rails

S6454(AC) Contour 21 grab rail straight 60cm long x 35mm diameter (x2)

Grab Rails

S6452(AC) Contour 21 grab rail straight 45cm long x 35mm diameter

Accessory

S5093(AC) Clothes hook screw to wall, plastic

Cistern

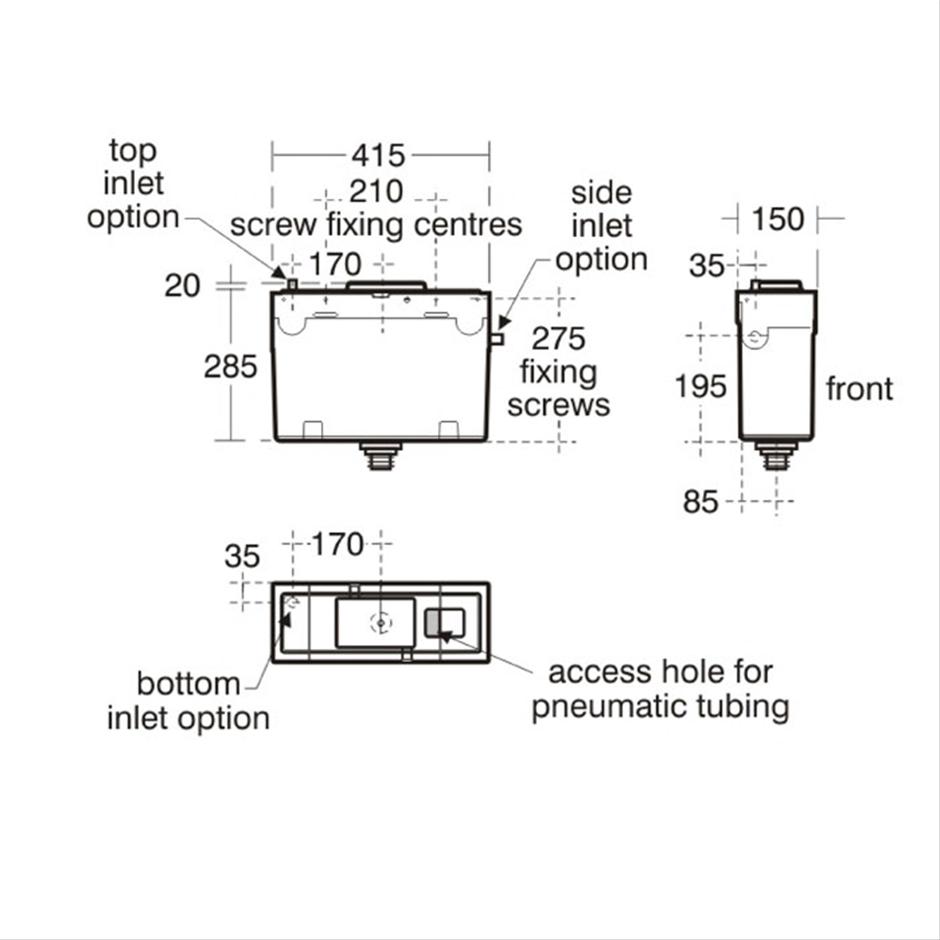

S3643(67) Conceala 2 4.5/3 or 4/2.6 litre cistern, dual flush valve, side supply, internal overflow, alternative height plastic flushbends, no flushplate/button

WC Seat

S4066(01) Contour 21 toilet seat only, top fixing hinges and retaining buffers

WC Actuator

S4504(MY) Contemporary flush plate, dual flush, Armitage Shanks logo for Conceala 2 cisterns

Cistern

S3579(67) Conceala 2 cistern 4.5 litre single flush syphon delay fill bottom supply and internal overflow, alternative height plastic flushbends, with spatula lever

WC Outlet Connector

S4305(01) Panekta outlet connector to convert horizontal outlet wcs to P trap

WC Outlet Connector

S4300(01) Panekta outlet connector to convert horizontal outlet wcs to S or turned P trap

Special notes

Where four or more cubicles are provided in a washroom one of these must be an enlarged cubicle. This cubicle must be in addition to the ambulant disabled cubicle (see page 18:3:13) and must be a minimum of 1200mm wide. One horizontal and one vertical grab rail must be supplied to set around the WC.There must also be a space for a shelf and folding changing table, an outward opening door and closing/opening bar on the inside of the door. Supplied with layout drawings, detailing the fixing positions necessary for Doc M compliance. 600mm grab rail S6454 x 2 for room set 450mm grab rail S6452 for back of door
