Doc M Shower Room Pack - Exposed valve Individual Items

A6876(AA) Contour 21+ thermostatic exposed shower valve with fast-fix wall bracket and thermal cleanse feature

Individual items on an installation for use by ambulant disabled, walking impaired and infirm people, providing shower area with slip resistant floor, hinged seat, lever operated shower valve, dual shower system with adjustable head, shower curtain and grab rails. The thermostatic exposed shower valve is TMV3 approved to help prevent scalding.

For the complete pack that these items relate to see S0755

For individual items see "illustrated" tab

  • Exposed TMV3 lever operated shower valve
  • Meets all Doc M building regulations
  • Hinged shower seat
  • Dual shower kit with diverter
  • LABC approved
  • Choice of finish

  • Chrome
Material: Chrome Plated
Weight: 3.00Kg
Flow rate: 19 Litres per minute @ 3 bar pressure

Standards: Contour 21 shower valve A6876 to TMV3

  • 1806024

  • NSF 1971/0318

Data Sheet Spares Where to Buy

Shower Valve

A6876(AA) Contour 21+ thermostatic exposed shower valve with fast-fix wall bracket and thermal cleanse feature

Shower Kit

A5691(AA) Idealrain Dual shower system with M1 rainshower, fixed riser, M3 handspray and diverter for exposed mixers

Shower Seat

S6632(XK) Shower seat, folding 650mm projection fixed height

Multi System Fixings

S6635(XK) Multi-System back support fixed height

Grab Rails

S6454(AC) Contour 21 grab rail straight 60cm long x 35mm diameter

Grab Rails

S6452(AC) Contour 21 grab rail straight 45cm long x 35mm diameter

Grab Rails

S6360(AC) Contour 21 hinged support rail 80 x 35mm diameter, Doc M Compliant

Multi System Shower Curtain

S6750(01) Multi-System shower curtain 1500x2000mm

Multi System Shower Curtain

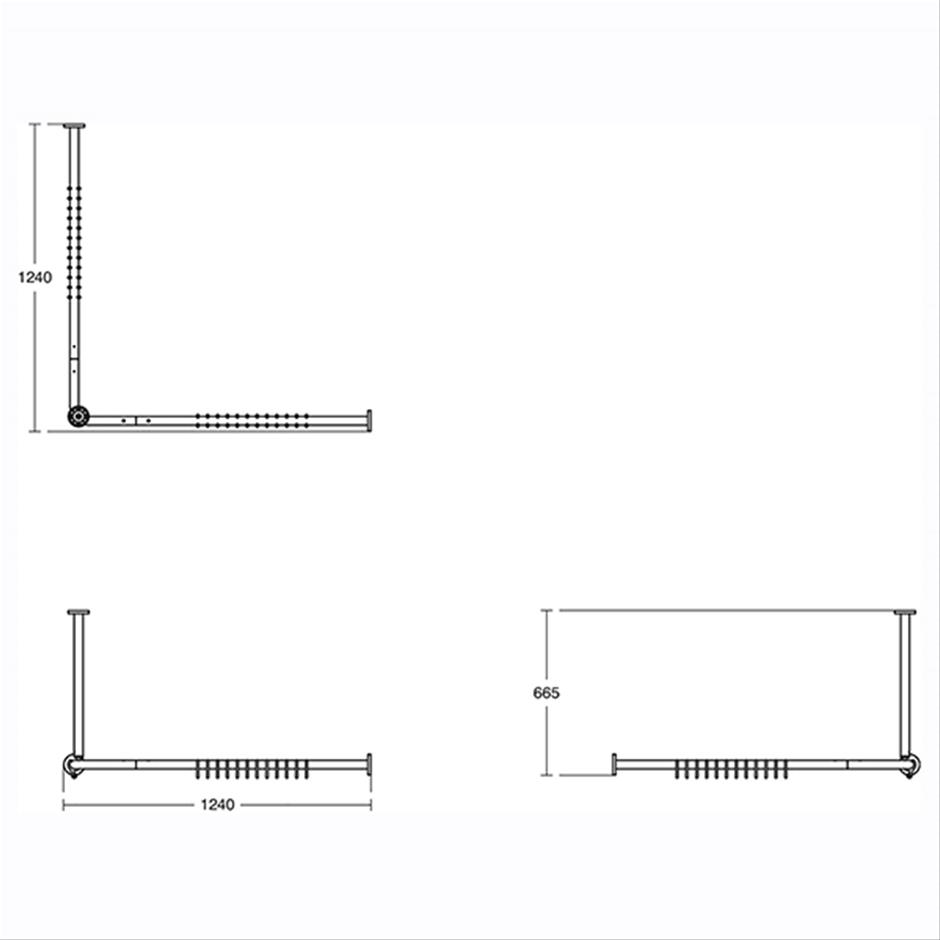

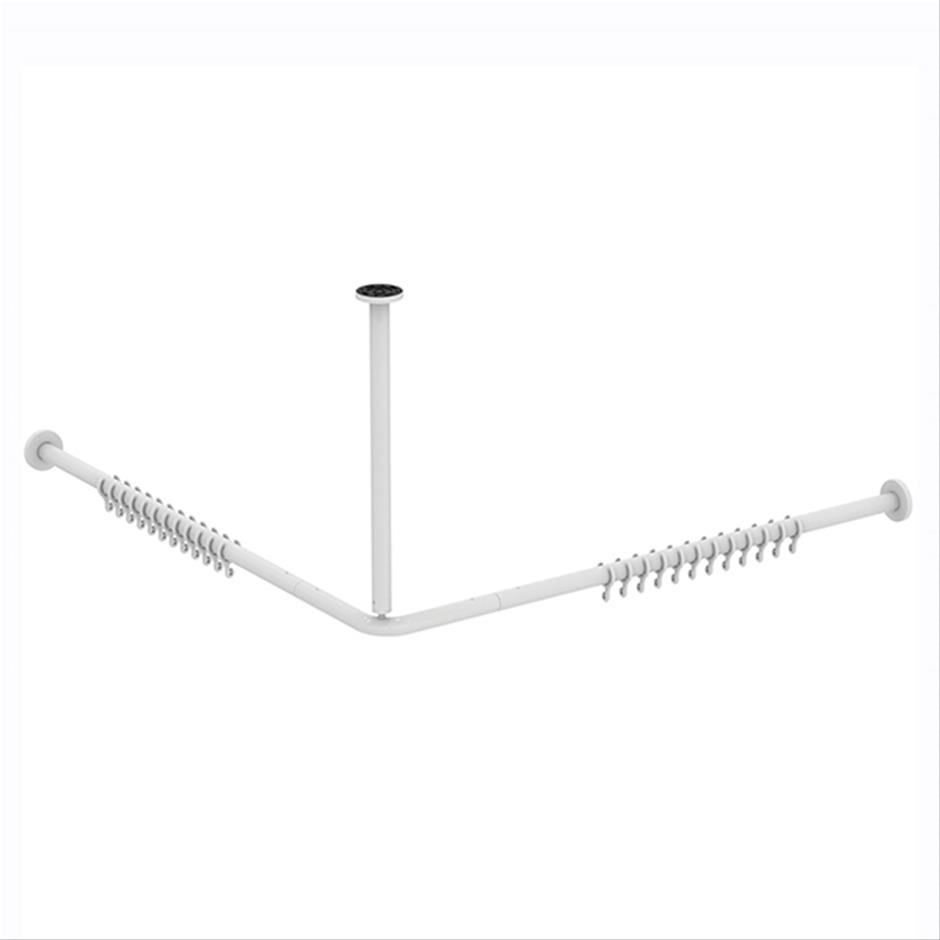

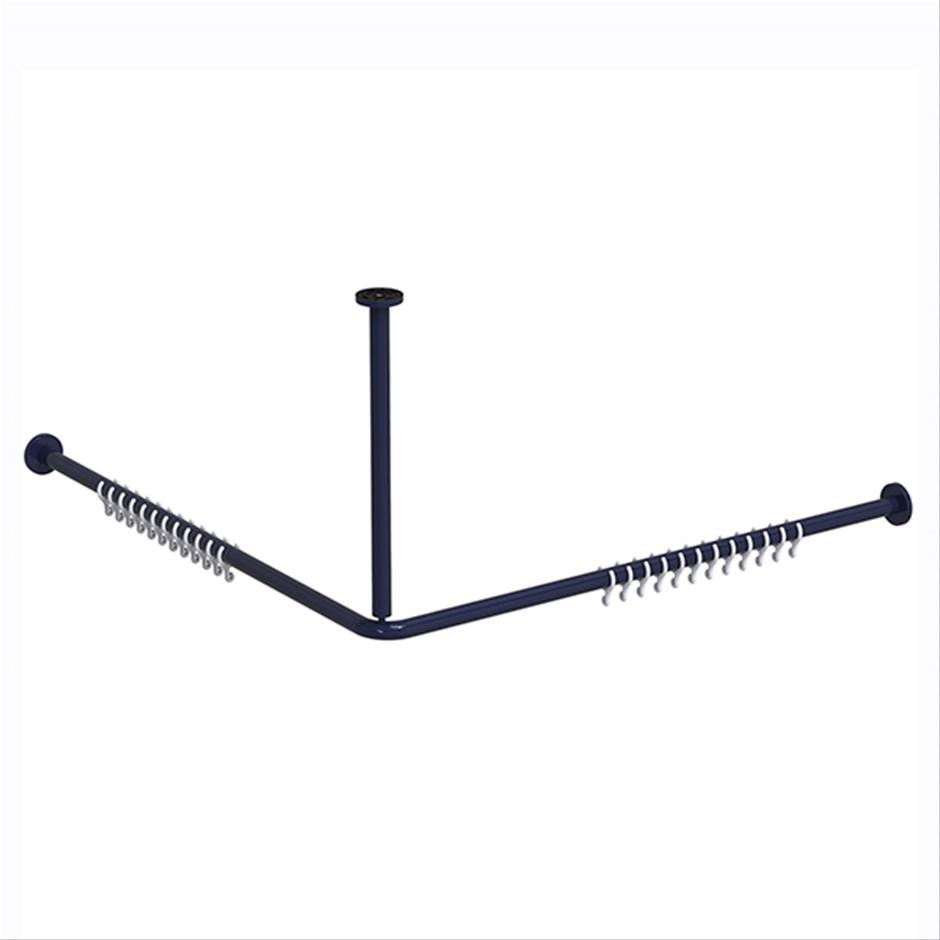

S6751(AC) Contour 21 angled shower curtain rail 1200 x 1200mm


S5093(AC) Clothes hook screw to wall, plastic

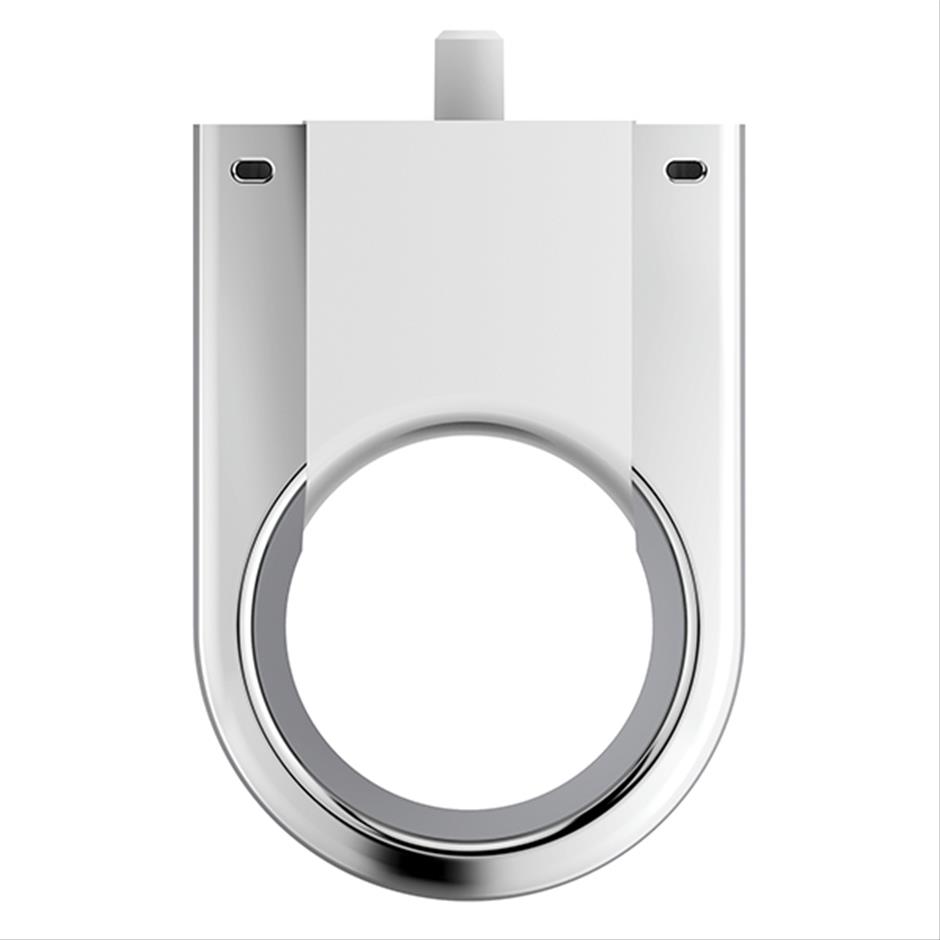

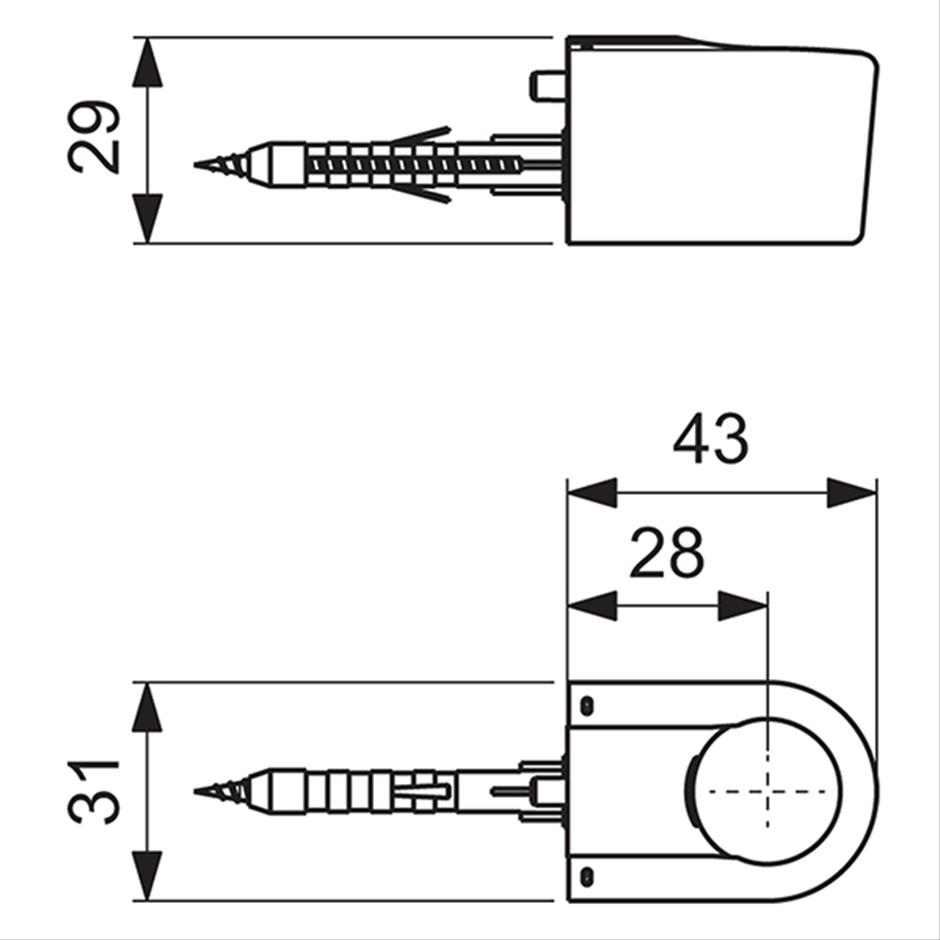

B1364(AA) Category 5 hose retainer for wall fixing which screws to the wall to limit handspray movement, to prevent back siphonage in category 5 installations

Special notes

For LRV and RAL numbers see Doc M introduction. 600mm grab rail S6454 X 3 for room set 450mm grab rail S6452 is for back of door Hinged grab rails S6560 x 2 White:Ral=9016, LRV=87 Blue:Ral=5011, LRV=6 Red:Ral=3020, LRV=12 Grey:Ral=7005, LRV=19 Charcoal:Ral=7016, LRV=8
