Doc M Ambulant Close Coupled - Individual Items

S3054(01) Contour 21 close coupled raised height toilet bowl with horizontal outlet, 75cm projection with floor fixing kit

Equipment for ambulatory accessible WC compartments for walking impaired people. This installation conforms to Document M of the Building Regulations. Water saving delay fill 4.5 litre cistern.


  • For complete pack use pack codes on previous pack page
  • For individual items use codes below

  • White
    (01)
Material: Vitreous China
Weight: 25.86Kg

Standards: Vitreous china to BS 3402

  • When used with a 4.5 litre Cistern

  • 4.5 Litre Flush


Data Sheet Spares Where to Buy

WC Pan

S3054(01) Contour 21 close coupled raised height toilet bowl with horizontal outlet, 75cm projection with floor fixing kit

Grab Rails

S6454(AC) Contour 21 grab rail straight 60cm long x 35mm diameter (x3)

Grab Rails

S6452(AC) Contour 21 grab rail straight 45cm long x 35mm diameter

Accessory

S5093(AC) Clothes hook screw to wall, plastic

Cistern

S3654(01) Contour 21 close coupled 4.5 litre delay fill single flush syphon cistern for 75cm projection bowl, bottom supply, internal overflow with secure cover fastener, no lever

WC Seat

S4066(01) Contour 21 toilet seat only, top fixing hinges and retaining buffers

WC Actuator

S4420(AA) Spatula cistern lever, close coupled

WC Seat

S4065(01) Contour 21 toilet seat and cover, top fixing hinges

Special notes

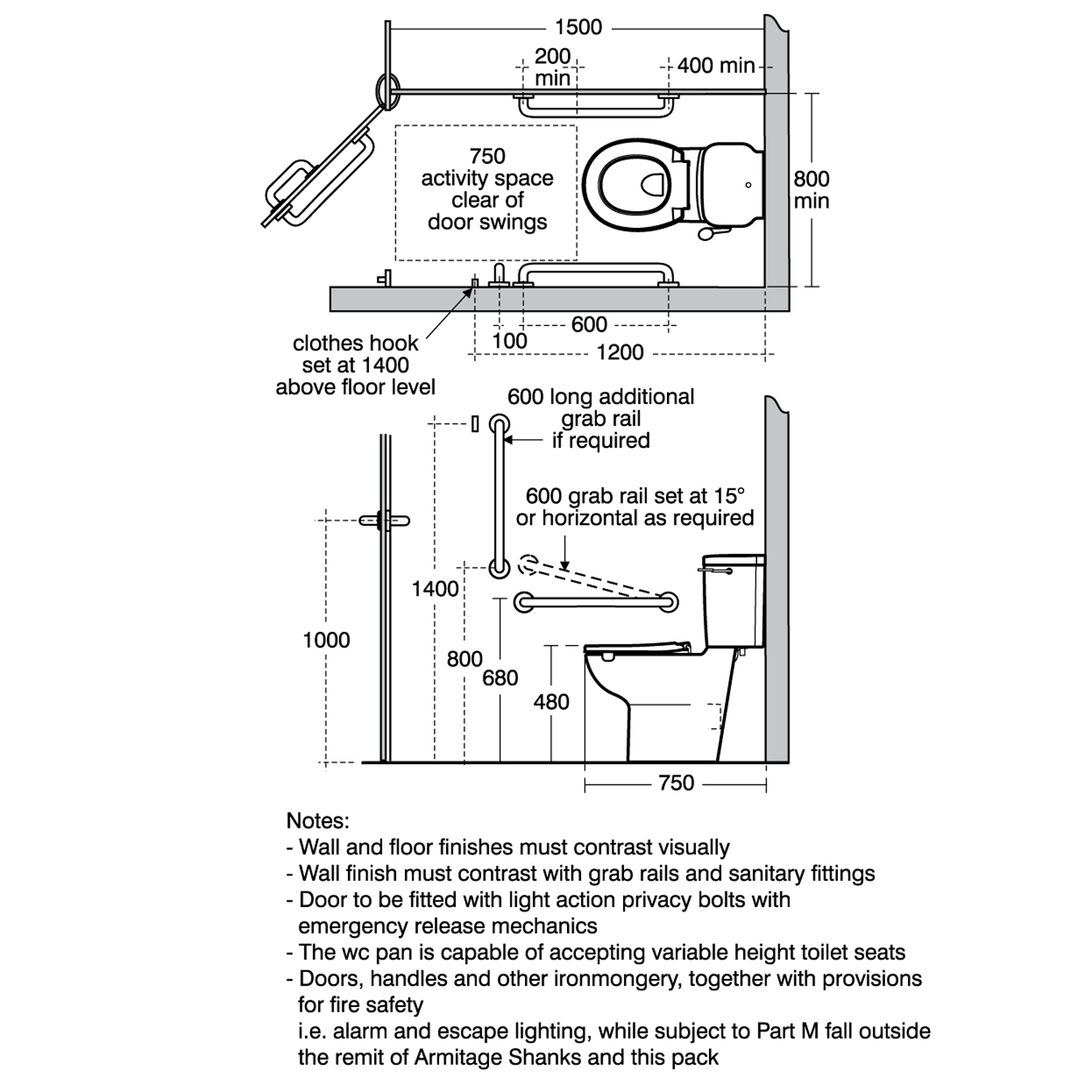

For LRV and RAL numbers see Doc M introduction. 600mm grab rail S6454 x 3 for room set. 450mm grab rail S6452 for back of door.
