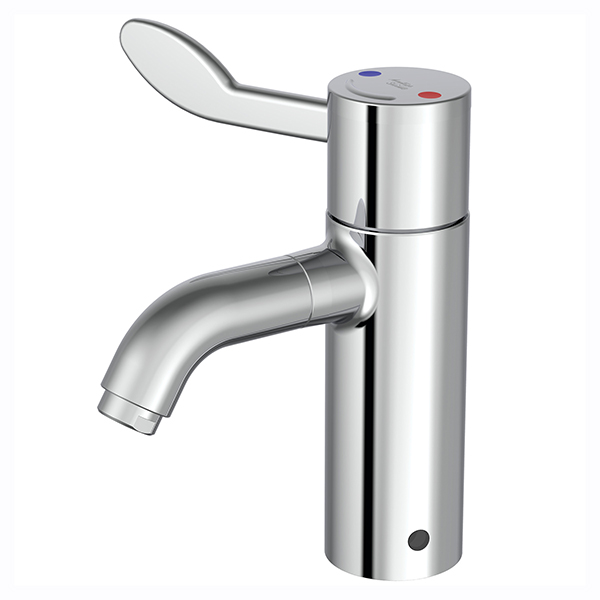

HBN 00-10 HTM64 (TP6) Markwik 21+ 1 Hole Thermostatic Basin Mixer

A6696(AA) Markwik 21+ 1 hole thermostatic basin mixer, single sequential lever, demountable with copper tails

Deck mounted thermostatic basin mixer with lever operation for use on one tap hole basins. Single lever sequential operation ensures both hot and cold water is drawn on each use. Long lever gives precise control. Insulated technology keeps the ‘hot’ side of the mixer at a safe surface temperature. Includes a built-in thermal cleansing feature. Spout is removable for autoclave sterilisation, body demounts from base for submergible disinfection and Bioguard outlet also helps protect against bacteria.


  • Top access D-08 auditing & servicing
  • Conforms to HBN 04-01 Addendum 2014
  • Demount, submerge and disinfect
  • Bioguard against bacteria
  • Thermal disinfection feature
  • Remove and sterilise spout

  • Chrome
    (AA)
Material: Chrome Plated Brass
Weight: 2.50Kg
Flow rate: 7.9 Litres per minute @ 3 bar pressure
HTM code: TP6


  • 1705011

View data sheet

Brassware

A6696(AA) (TP6) Markwik 21+ 1 hole thermostatic basin mixer, single sequential lever, demountable with copper tails

Hide

Thermostatic basin mixer

A6696 Markwik 21+ 1 hole thermostatic basin mixer, single sequential lever, demountable with copper tails


Finish

Chrome (AA)

Material: Chrome Plated Brass
Weight: 2.50 Kg
Flow rate: 7.9 Litres per minute @ 3 bar pressure
HTM code: TP6

View
  1. Strada 50cm countertop basin one taphole

    Strada 50cm Countertop Washbasin One Taphole

    Strada 50cm countertop basin one taphole

  2. Markwik 21+ panel mounted thermostatic basin mixer, single sequential lever, demountable with removable spout

    Markwik 21+ Panel Mounted Thermostatic Basin Mixer

    Markwik 21+ panel mounted thermostatic basin mixer, single sequential lever, demountable with removable spout

  4. Markwik 21+ panel mounted thermostatic basin mixer, time flow sensor, demountable with removable spout

    Markwik 21+ Panel Mounted Thermostatic Basin Mixer

    Markwik 21+ panel mounted thermostatic basin mixer, time flow sensor, demountable with removable spout

  5. Markwik 21+ 2 hole thermostatic basin mixer, single sequential lever, demountable

    Markwik 21+ 2 Hole Thermostatic Basin Mixer

    Markwik 21+ 2 hole thermostatic basin mixer, single sequential lever, demountable

  7. Markwik 21+ 1 hole thermostatic basin mixer, single sequential lever, demountable with copper tails

    Markwik 21+ 1 Hole Thermostatic Basin Mixer

    Markwik 21+ 1 hole thermostatic basin mixer, single sequential lever, demountable with copper tails

View full suite

Ancillary

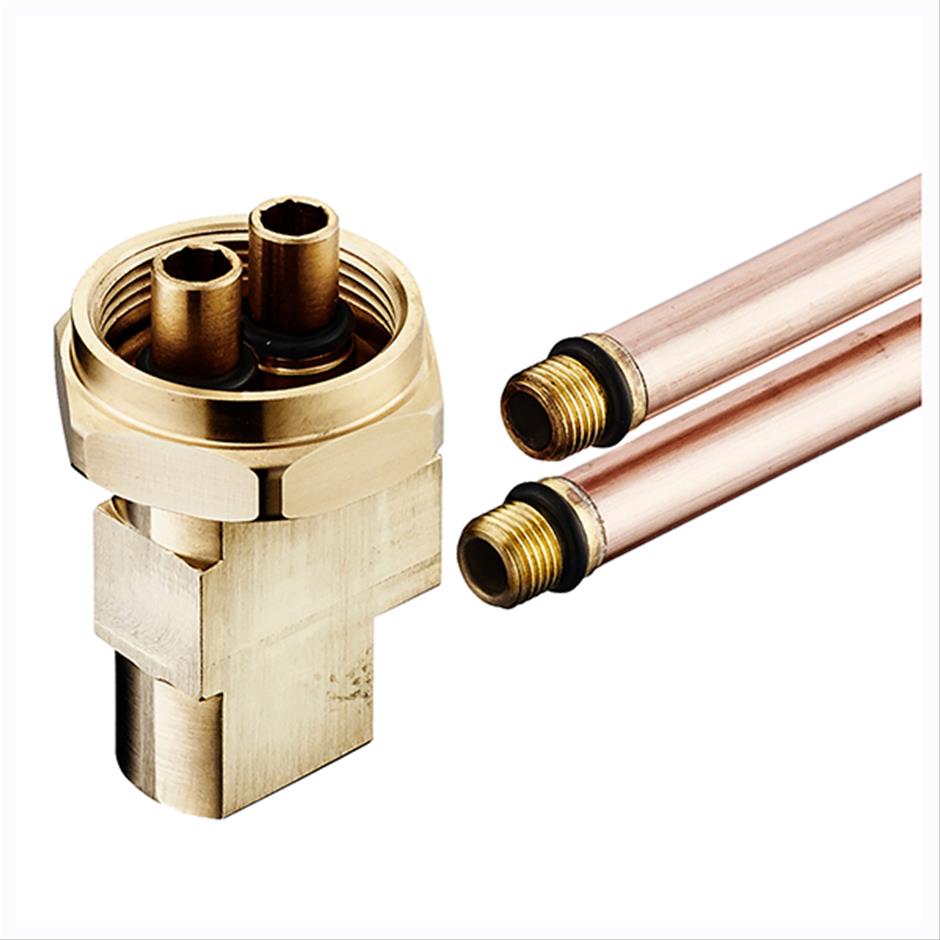

A6791(NU) Markwik 21+ deck mounted basin mixer fixing kit for use with 1 taphole Contour 21+ back outlet washbasins

Hide

Ancillary

A6791 Markwik 21+ deck mounted basin mixer fixing kit for use with 1 taphole Contour 21+ back outlet washbasins


Finish

Unfinished (NU)

Material: Chrome Plated Brass

Sectors & Solutions

Pubs and Clubs

Education

Factory

Hospitals

General Healthcare

Office

Public Building

Retail

Sports and Leisure

HTM/HBN

Infection Control

Scald Prevention

Special notes

Single sequential lever for on/off operation and temperature control. Fitted with an Armitage Bioguard outlet which reduces the opportunity for biofilm attachment and is lined with antimicrobial copper. Unique built-in thermal disinfection cleansing feature. Spout is removable for autoclave sterilisation. Body demounts for submergible disinfection. During demounting, integral safety valves will shut off water, in case supplies not isolated. Integral isolating valves, strainers, check valves and flow regulators; which are all accessible from above the basin. Temperature factory set to 40±1°C. Suitable for high and low pressure systems. Flow rate regulated to maximum of 10 litres per minute. Clamping ring with three fixing screws for added security. Accessory fixing kit specifically designed to facilitate the installation of A6696 when used with Contour 21+ closed basins. Fits onto the tail of the basin mixer and rotates the copper tails by 90° inside the hollow basin cavity, with the inlet water connections coming from the rear.
