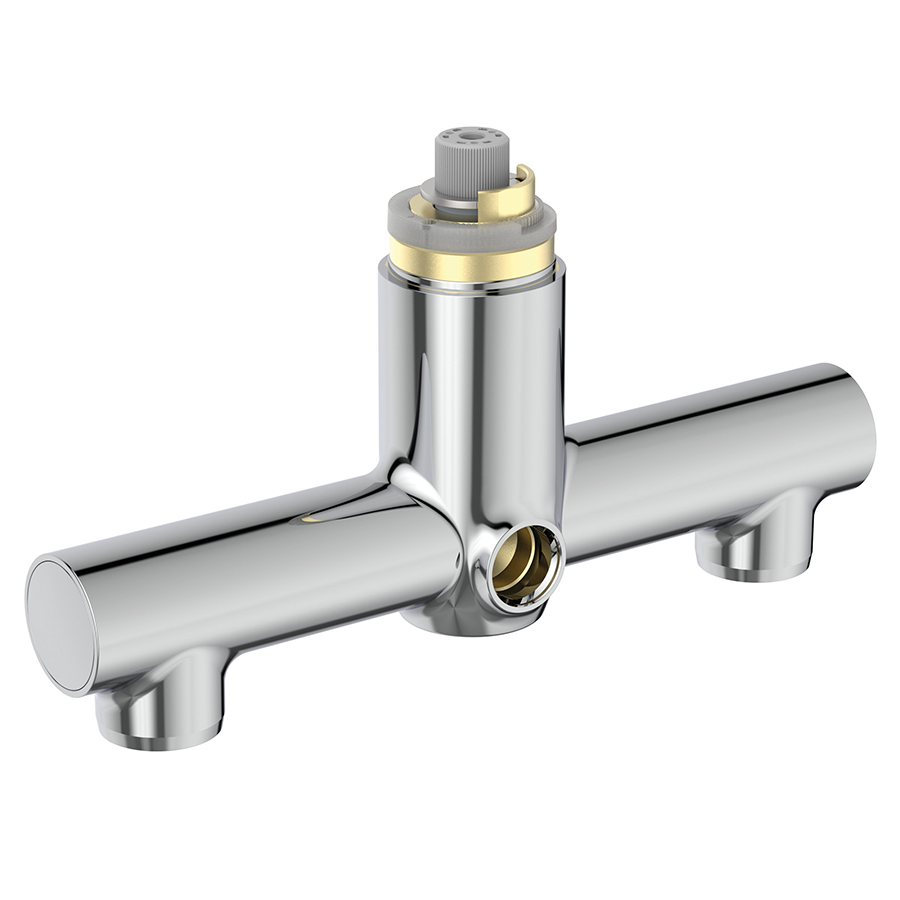

Markwik 21+ Comfort SQ Deck Mounted Mixer – Non-Thermostatic (PBV) BODY ONLY

A7906(AA) Markwik 21+ Comfort SQ deck mounted mixer – non-thermostatic (PBV) BODY ONLY

Part of the new M21+ Comfort SQ range of Pressure balance valve products, these panel and deck mounted ‘body only’options enable an existing M21 or M21+ thermostatic installation to be changed over to a pressure balance installation in more cost-effective way compared toa full tap replacement. Designed specifically for handwashing, they dispense safe water ranging from ambient cold to a predetermined maximum hot temperature. Packed with fantastic features, benefits and design considerations that help combat infection control within hospital and healthcare environments.


  • Compatible with M21 and M21+ installations requiring PBV switch over.
  • Demountable body for disinfection
  • New 38mm sequential manual ceramic disc cartridge
  • Ceramic Pressure Balance Valve with smooth hygienic surfaces
  • Brass port sleeves
  • Override feature for thermal disinfection
  • Temperature limiting device
  • Smooth, narrow bore, low water inventory waterways
  • Cool body
  • Suitable for high and low pressure installations (from 0.2 – 5 bar)
  • HTM 04 01 compliant

  • Chrome
    (AA)
Material: Chrome Plated Brass
Weight: 1.91Kg
Flow rate: 7 Litres per minute @ 3 bar pressure


  • 2407882

Data Sheet Spares Where to Buy

Brassware

A7906(AA) Markwik 21+ Comfort SQ deck mounted mixer – non-thermostatic (PBV) BODY ONLY

  1. Markwik 21+ Comfort SQ deck mounted mixer with detachable spout – non-thermostatic (PBV)

    Markwik 21+ Comfort SQ Deck Mounted Mixer With Detachable Spout – Non-Thermostatic (PBV)

    Markwik 21+ Comfort SQ deck mounted mixer with detachable spout – non-thermostatic (PBV)

  2. Markwik 21+ Comfort SQ panel mounted mixer with detachable spout – non thermostatic (PBV)

    Markwik 21+ Comfort SQ Panel Mounted Mixer With Detachable Spout – Non Thermostatic (PBV)

    Markwik 21+ Comfort SQ panel mounted mixer with detachable spout – non thermostatic (PBV)

  3. Markwik 21+ Comfort SQ panel mounted mixer – non-thermostatic (PBV) BODY ONLY

    Markwik 21+ Comfort SQ Panel Mounted Mixer – NonThermostatic (PBV) BODY ONLY

    Markwik 21+ Comfort SQ panel mounted mixer – non-thermostatic (PBV) BODY ONLY

  4. Markwik 21+ Comfort SQ deck mounted mixer – non-thermostatic (PBV) BODY ONLY

    Markwik 21+ Comfort SQ Deck Mounted Mixer – Non-Thermostatic (PBV) BODY ONLY

    Markwik 21+ Comfort SQ deck mounted mixer – non-thermostatic (PBV) BODY ONLY

Ancillary

A861794(AA) Markwik 21+ comfort (M21 conversion pack)

Ancillary

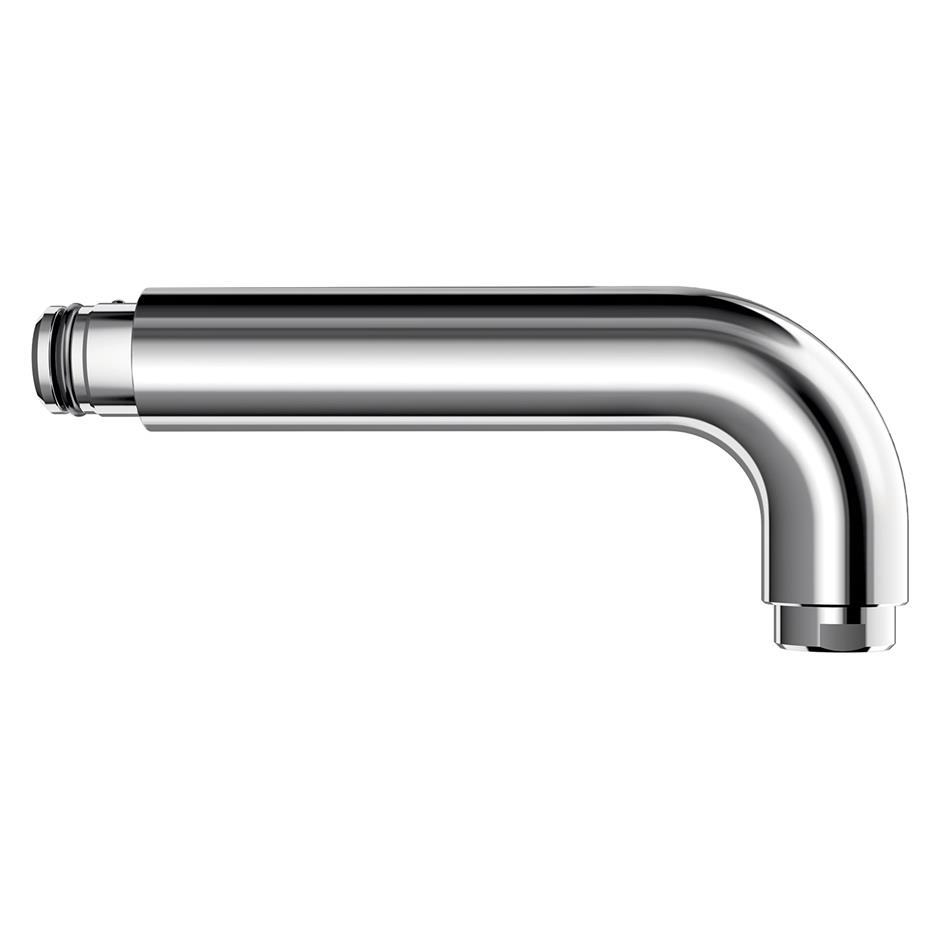

A6251(AA) (TB H6) Spout 170mm for Markwik 21 mixer, fitted with interchangeable Armitage Bioguard filter

Special notes

Identification of current installation is required when specifying the body only tap. Check is it M21 or M21+. If current installation is a M21 then a replacement / conversion kit must be ordered alongside the body only mixer, order: A861794AA A6251AA 170mm spout must also be ordered if converting from a A6734AA Fixed Spout M21 deck mounted mixer.
