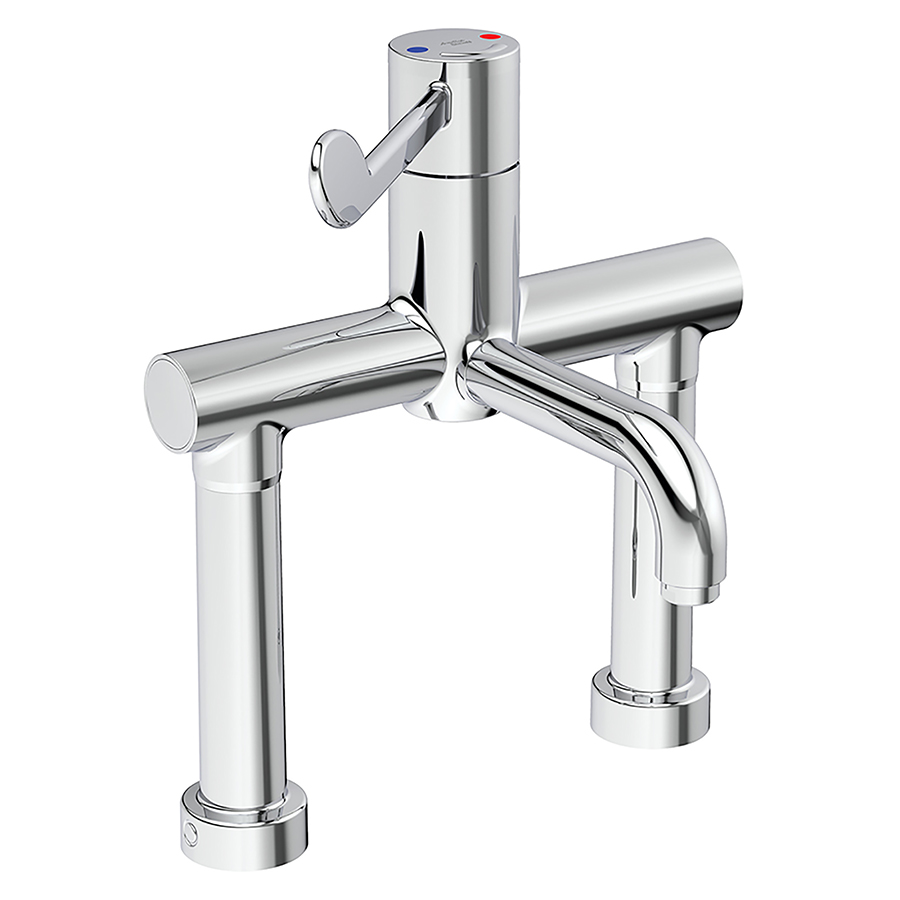

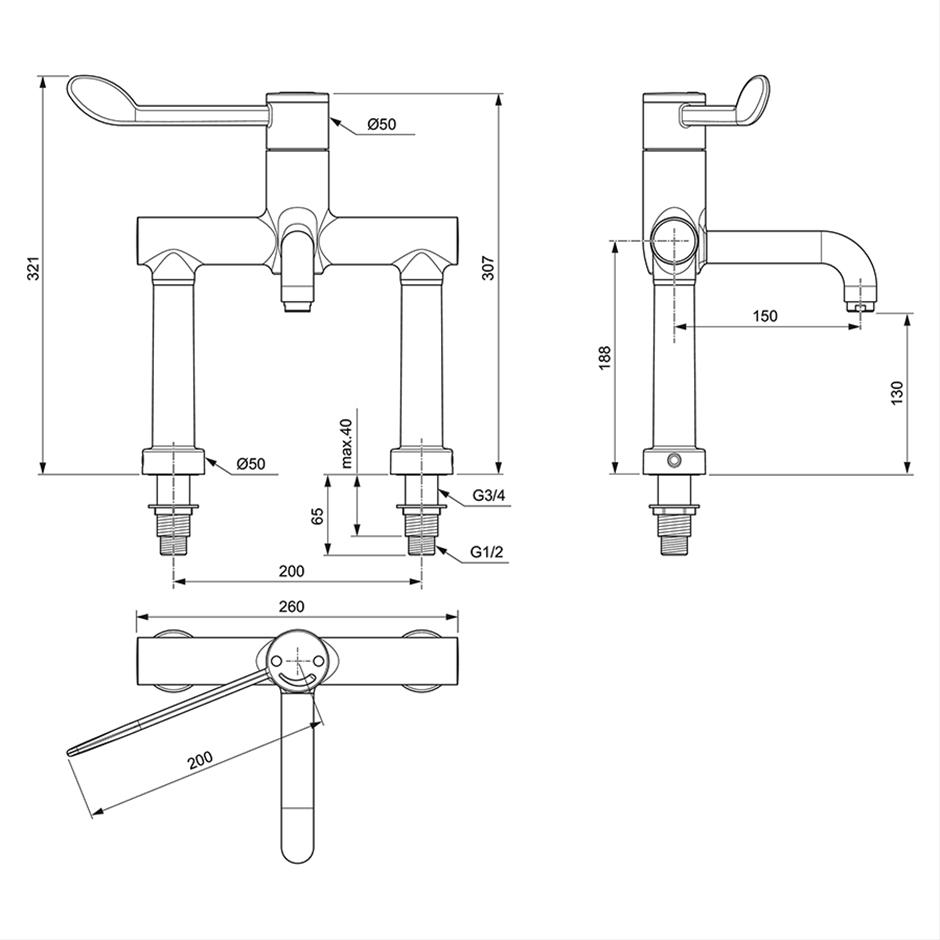

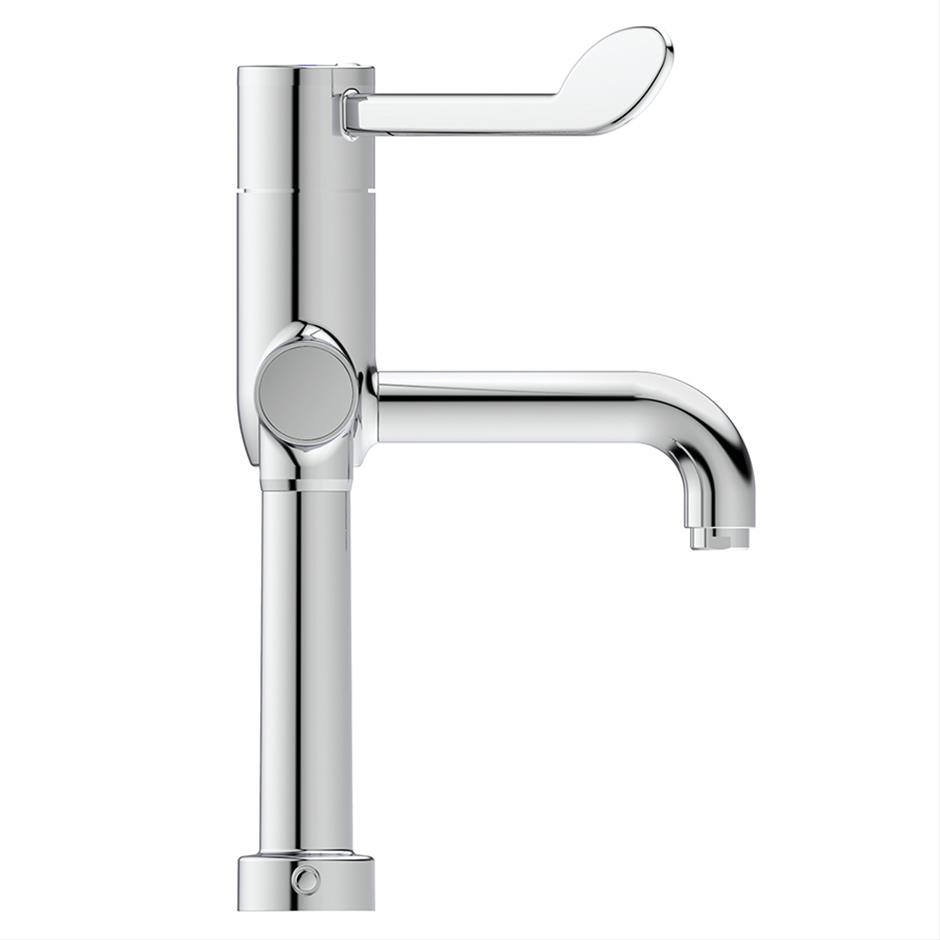

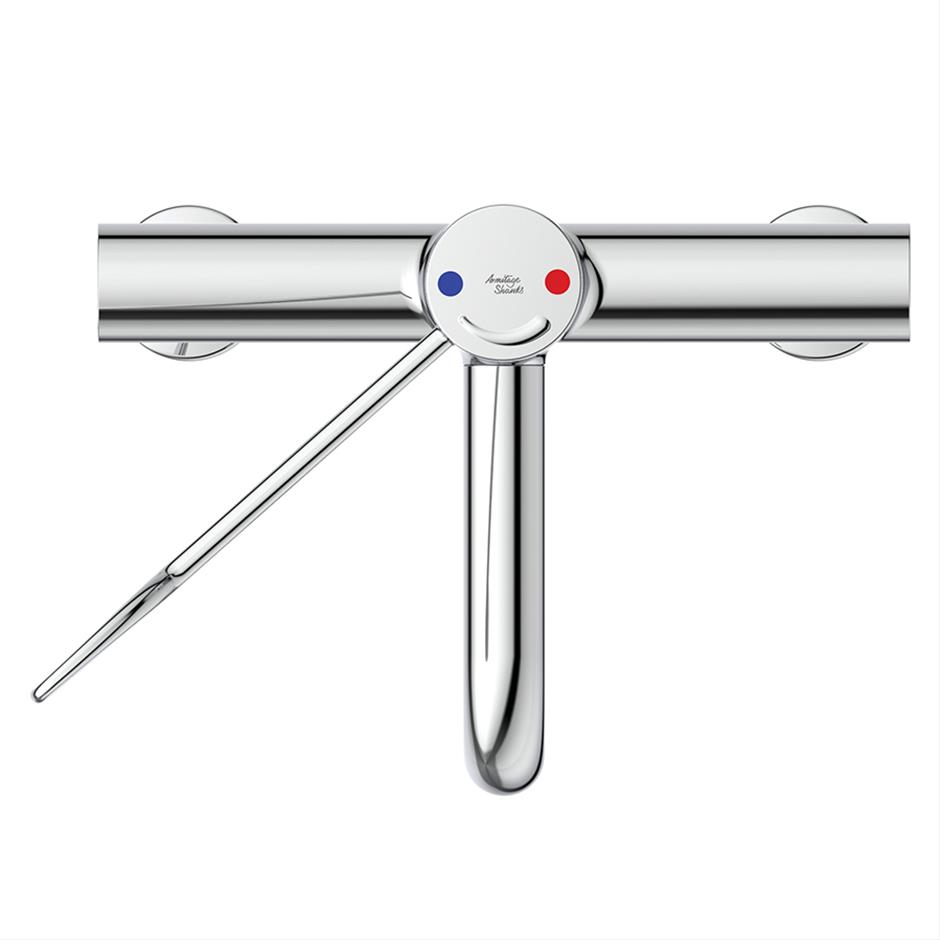

Designed specifically for handwashing, thesenon-thermostatic panel and deck-mounted mixers are equipped with pressure balance valve technology (PBV) and paired with a sequential lever operation. They dispense safe water ranging from ambient cold to a predetermined maximum hot temperature. Packed with fantastic features, benefits and design considerations that help combat infection control within hospital and healthcare environments.

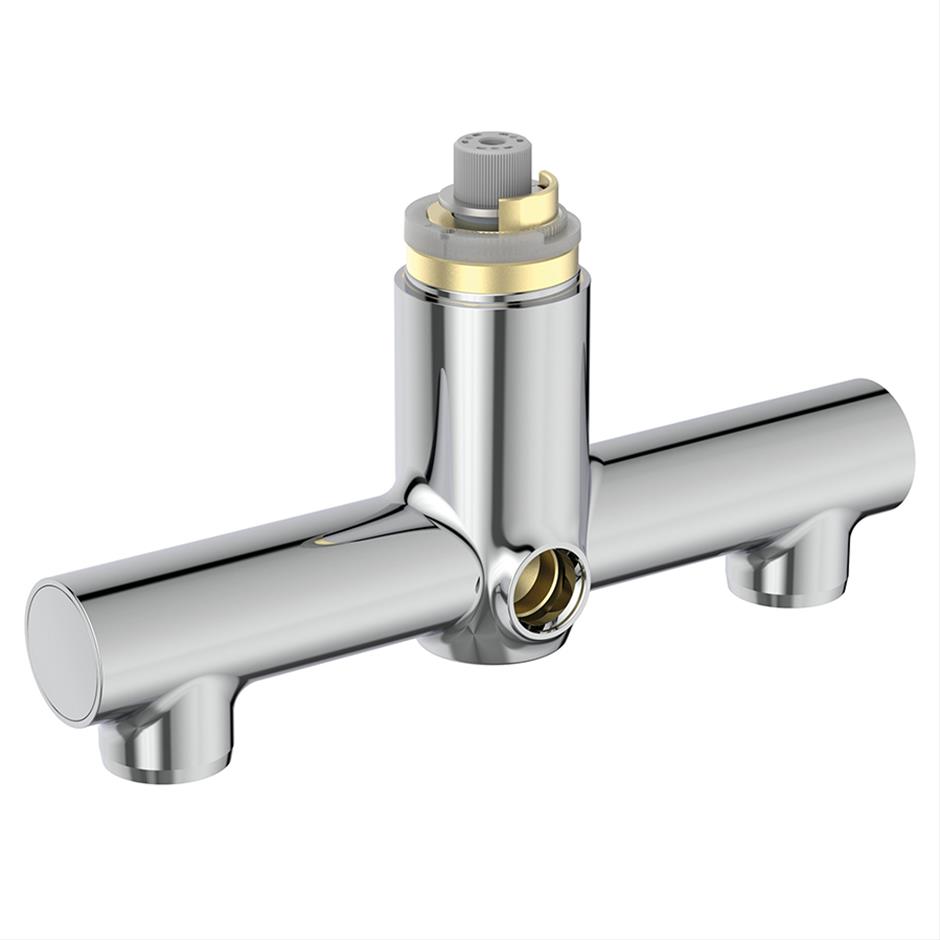

- Demountable body and spout for disinfection
- BioGuard outlet to prevent biofilm formation
- New 38mm sequential manual ceramic disc cartridge
- Ceramic Pressure Balance Valve with smooth hygienic surfaces
- Brass port sleeves
- Override feature for thermal disinfection
- Temperature limiting device
- Front of panel access to isolation valves, filters and water sampling point
- Smooth, narrow bore, low water inventory waterways
- Cool body
- Suitable for high and low pressure installations (from 0.2bar – 5bar)
- Panel mounted version available.
- HTM 04 01 compliant
-
Chrome
(AA)
| Material: |
Chrome Plated Brass |
| Weight: |
4.56Kg |
| Flow rate: |
7 Litres per minute @ 3 bar pressure |
Standards:
EN 200, HTM 04-01
