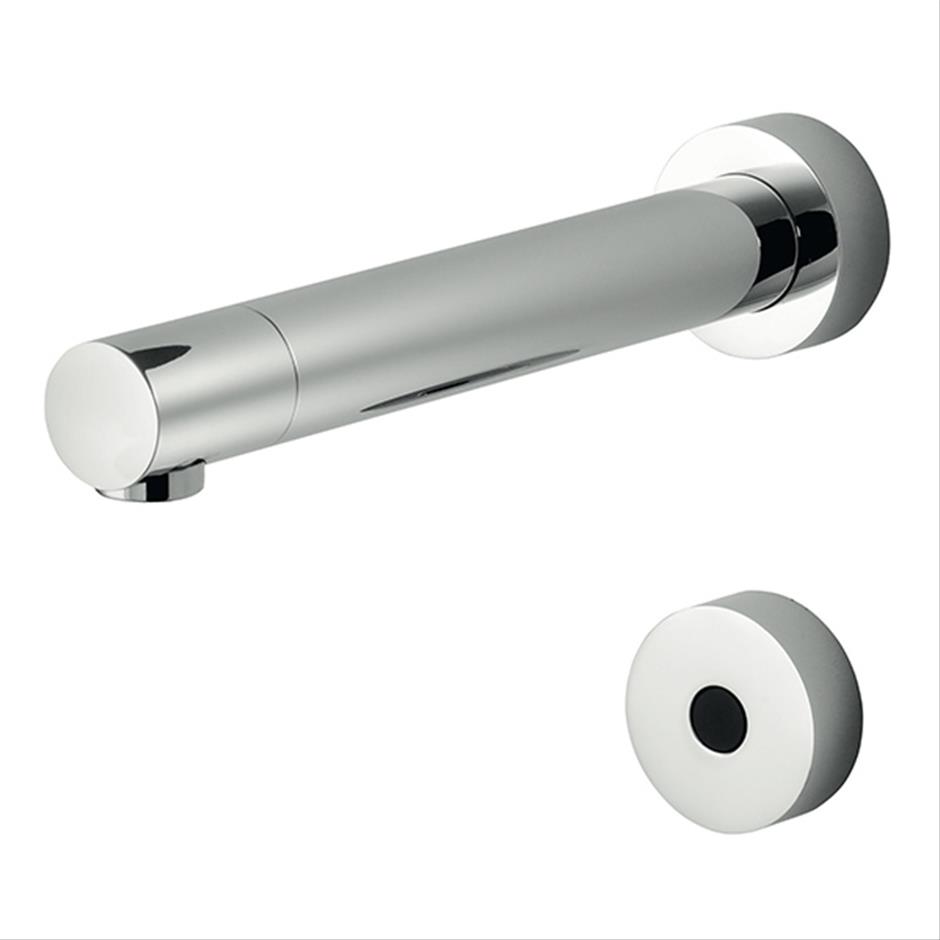

Sensorflow 21 Wall Spout 23cm - Separate Sensor

A4183(AA) Sensorflow 21 tubular panel mounted 230mm projection spout with anti-splash 3.7 litre per minute aerated outlet, remote panel sensor, copper tube inlets, mains

Sensorflow 21 spout is supplied with proximity sensing separate sensor ideal for panel systems.  It can be converted to timed flow using a remote control.  It is supplied with a 3.7 litre per minute pressure compensating aerator in an anti-vandal housing.


  • Commercial use
  • Hygenic "no touch" operation
  • Hands-free operation
  • 3.7 litre per minute flow regulator
  • Anti vandal housing

  • Chrome
    (AA)
  • Ultra Steel
    (GN)
Material: Chrome Plated Brass
Weight: 3.31Kg
Flow rate: 3.7 Litres per minute @ 3 bar pressure


Data Sheet Spares Where to Buy

Brassware

A4183(AA) Sensorflow 21 tubular panel mounted 230mm projection spout with anti-splash 3.7 litre per minute aerated outlet, remote panel sensor, copper tube inlets, mains

Thermostatic Valve

A5900(AA) TMV thermostatic mixing valve, 15mm

Variants

Special notes

Designed to be supplied with pre-mixed water. Consideration should be given to safe hot water delivery and the use of an appropriate temperature reduction device, please see A5900AA (for use with 15mm pipework) or A5901AA (for use with 22mm pipework). Flow rate regulated to 3.7 litres per minute at 1 bar. Low pressure straightener available (B960860NU) which delivers 5 litres per minute at 0.1 bar,.
