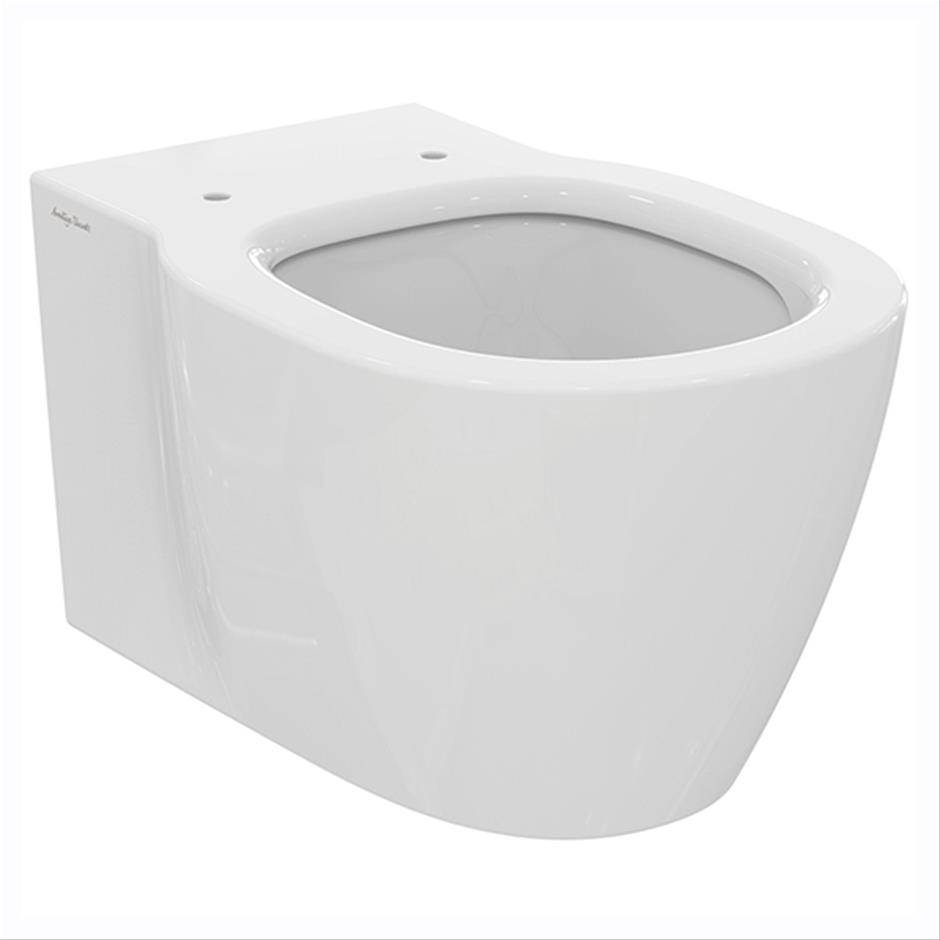

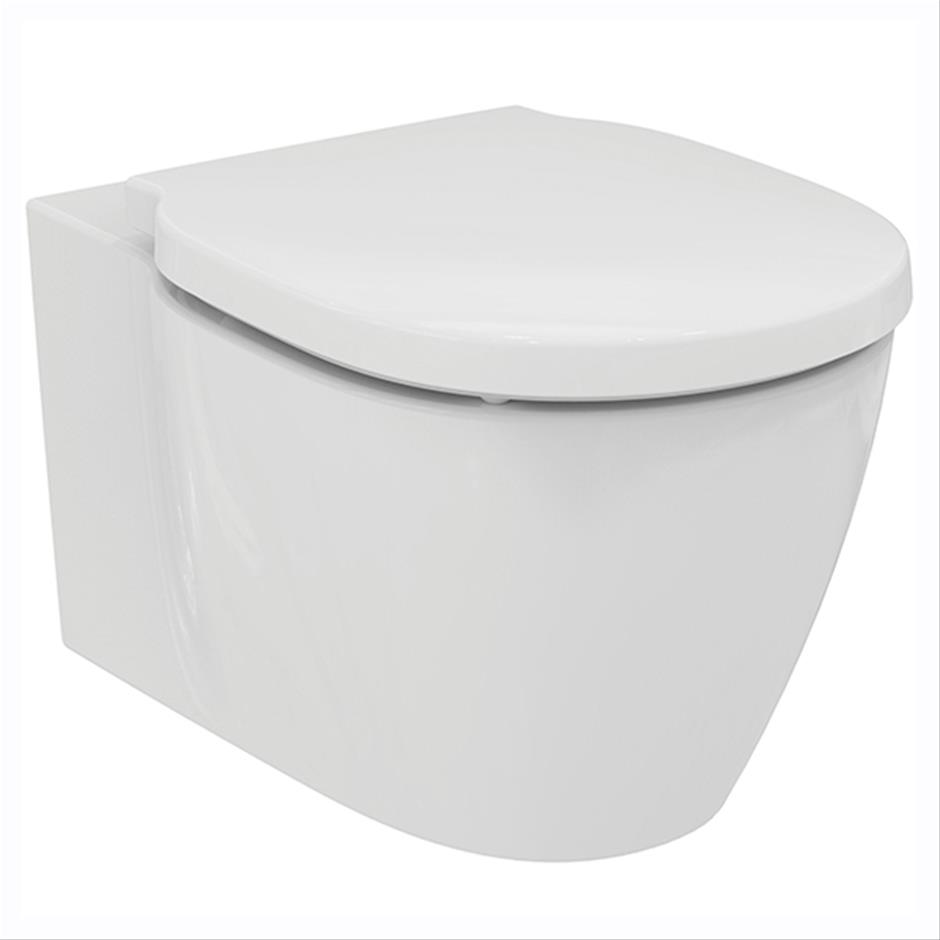

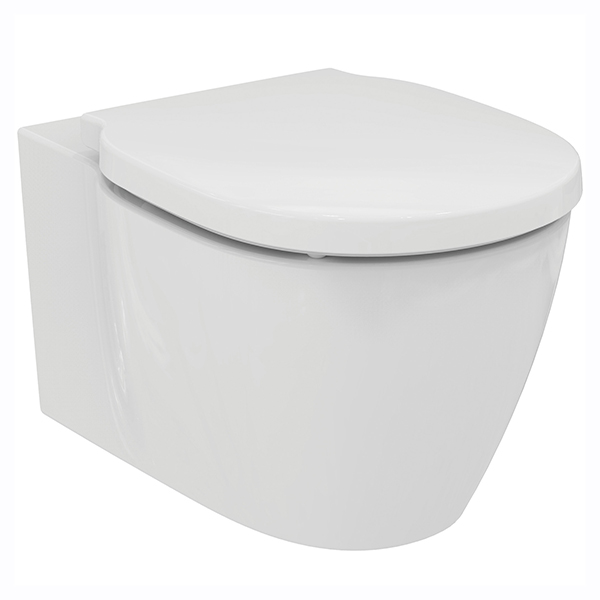

Edit R Wall Mounted WC Pan

S0794(01) Edit R Wall Mounted WC Pan

Edit R WC bowls are a great choice for the modern washroom and come with Aquablade flush technology.


  • For use in the washroom
  • Water efficient
  • Modern design
  • Aquablade flush technology
  • Quick release slow close seat

  • White
    (01)
Material: Vitreous China
Weight: 21.10Kg

Standards: Vitreous china to BS3402. WC pan to BS EN 997 and BS EN 33

  • Inlet Valve - 1610073


Data Sheet Spares Where to Buy

WC Pan

S0794(01) Edit R Wall Mounted WC Pan

Cistern

S3643(67) Conceala 2 cistern 4.5/3 or 4/2.6 litre dual flush valve side supply and internal overflow, alternative height plastic flushbends, no flushplate

WC Seat

S0797(01) Edit R Toilet Seat and Cover - soft close

WC Actuator

E4463(AA) Karisma flush plate dual flush, chrome, unbranded

WC Support Bracket

E0060(67) Support frame with bolts for wall hung WC pans

Special notes

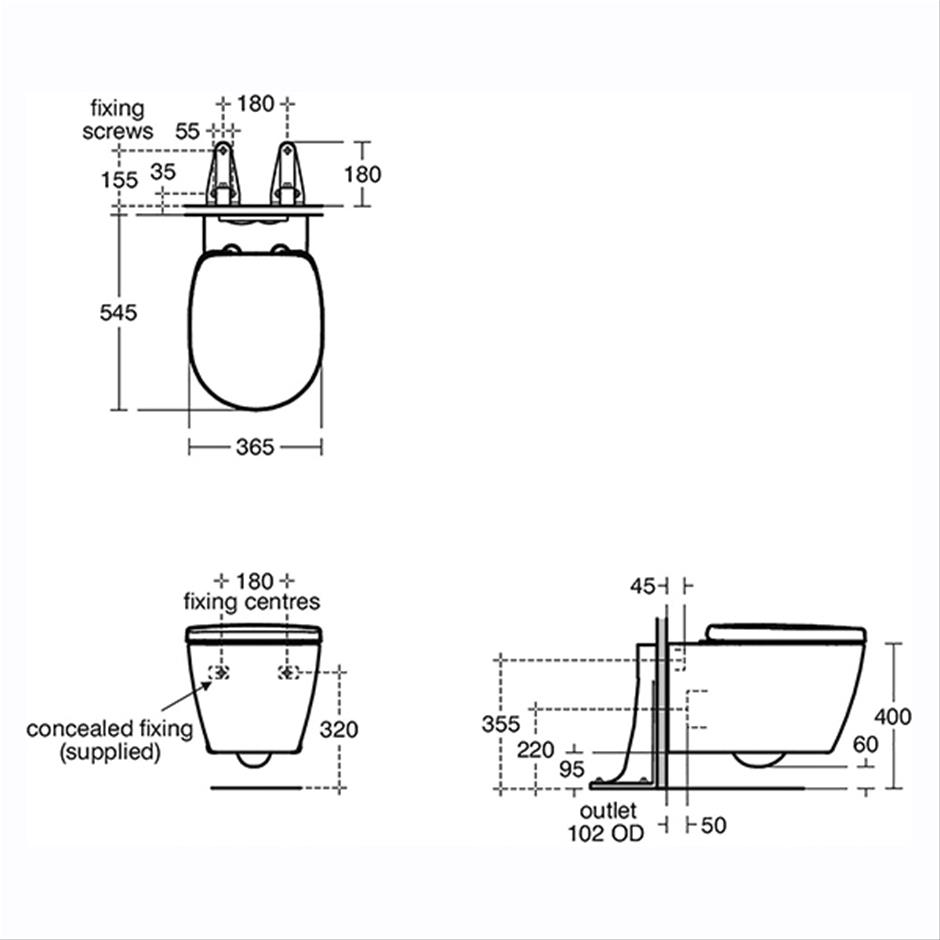

Fix the E0060 support brackets to the floor within the duct and secure the WC with bolts (supplied) and hidden fixing set provided. Screw the bolts to the back wall. The bowl should not be installed with lever activated cistern fixed with syphon.
