Portman 21 40cm Washbasin

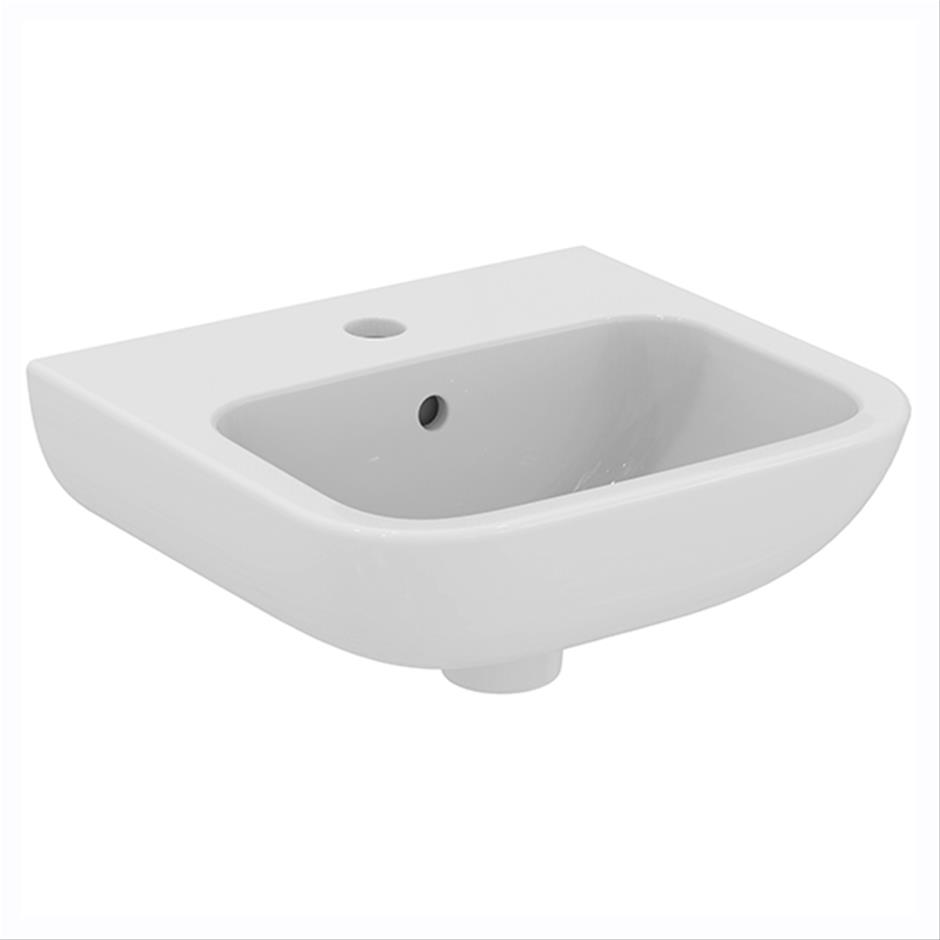

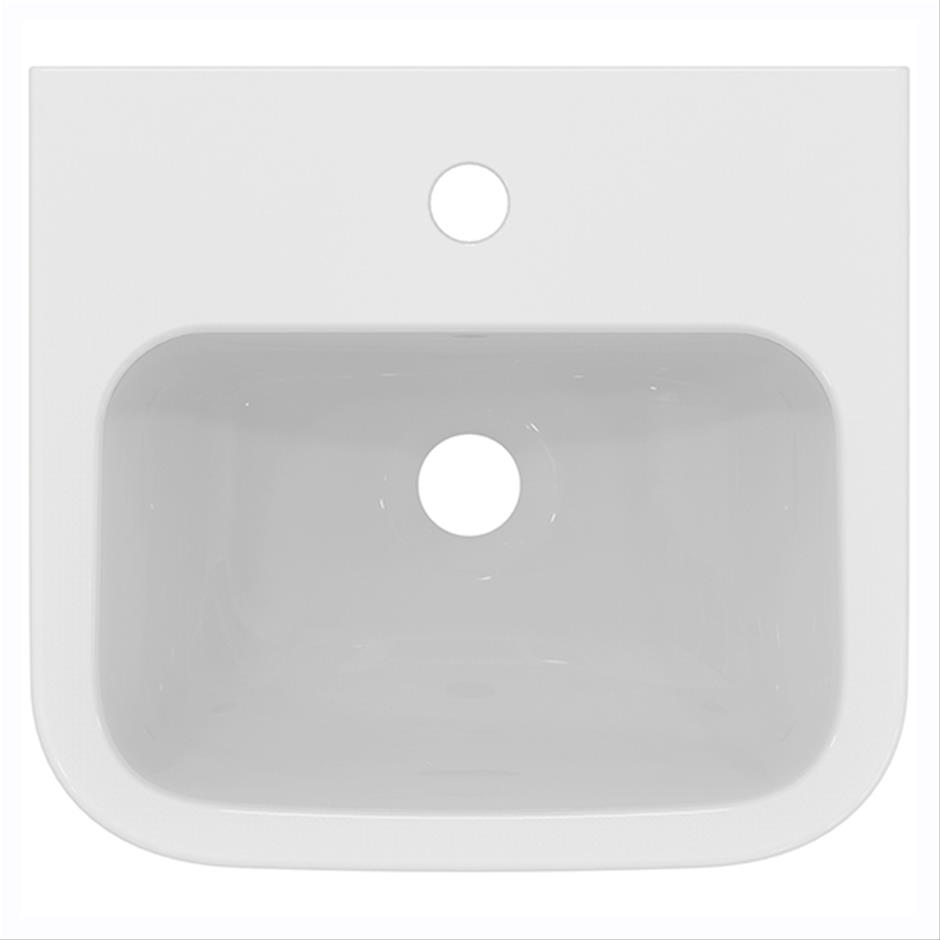

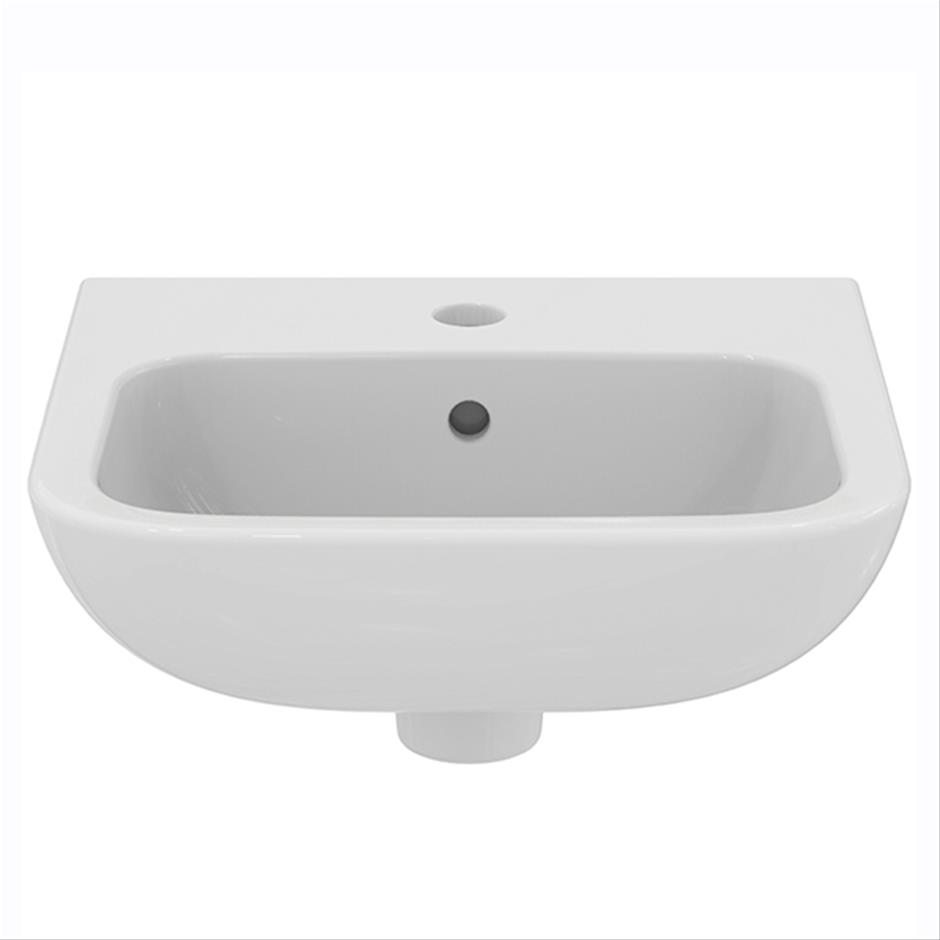

S2157(01) Portman 21 washbasin 40cm, 1 taphole with overflow, no chainstay hole

Modern design washbasin in vitreous china in 3 sizes, 60cm, 50cm and 40cm.


  • Commercial and domestic use
  • Three sizes available
  • 6 taphole options
  • Anti vandal applications
  • With or without overflow
  • Option for wall or panel fixing set

  • White
    (01)
Material: Vitreous China
Weight: 9.70Kg
Width: 400mm
Depth: 370mm
Capacity: 3.3 Litres


View data sheet

Washbasin

S2157(01) Portman 21 washbasin 40cm, 1 taphole with overflow, no chainstay hole

Washbasin Wall Fixings

E0157(67) Wall fixing set

Brassware

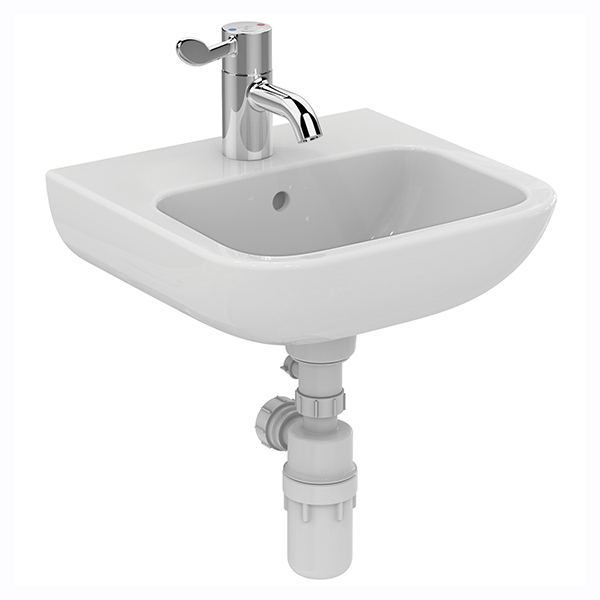

A6697(AA) Contour 21+ 1 hole thermostatic basin mixer, single sequential lever with copper tails

Waste

S8722(AA) Waste 1¼" brass strainer waste, 80mm slotted tail

Trap

S8920(67) Trap 1¼" plastic resealing bottle, 75mm seal, multi-purpose outlet

Washbasin Wall Fixings

E0062(67) Basin fixing set for IPS panels or block walls

Brassware

B8263(AA) Avon 21 washbasin mixer 1 hole, self closing push button, variable temperature control with 15mm female connector flexible hoses on inlets

Brassware

B8260(AA) Piccolo 21 washbasin 1 hole single lever mixer, no waste, 4.7 litres per minute laminar flow regulator, anti-vandal outlet, optional flow straightener, flexible tails

Brassware

B8261(AA) Piccolo 21 washbasin 1 hole single lever mixer with pop-up waste, 4.7 litres per minute laminar flow regulator, anti-vandal outlet, optional flow straightener, flexible tails

Brassware

A6698(AA) Contour 21+ 1 hole thermostatic basin mixer, single sequential lever with flexible tails

Brassware

A6790(AA) Contour 21+ Outline 1 hole thermostatic basin mixer, single sequential lever with flexible tails

Waste

S8733(AA) Waste 1¼" brass anti theft swivel plug waste, 80mm slotted tail

Waste

S8800(AA) Waste 1¼" plastic waste with bead chain and plug, 80mm slotted tail, bolt stay

Trap

S8900(AA) Trap 1¼" metal bottle, 75mm seal, outlet screwed 1¼" BSP male with compression nut and ring

Washbasin Support Bracket

S9138(67) Bracket concealed with clamps and centre waste support for Portman 21, 40cm washbasins

Variants

Special notes

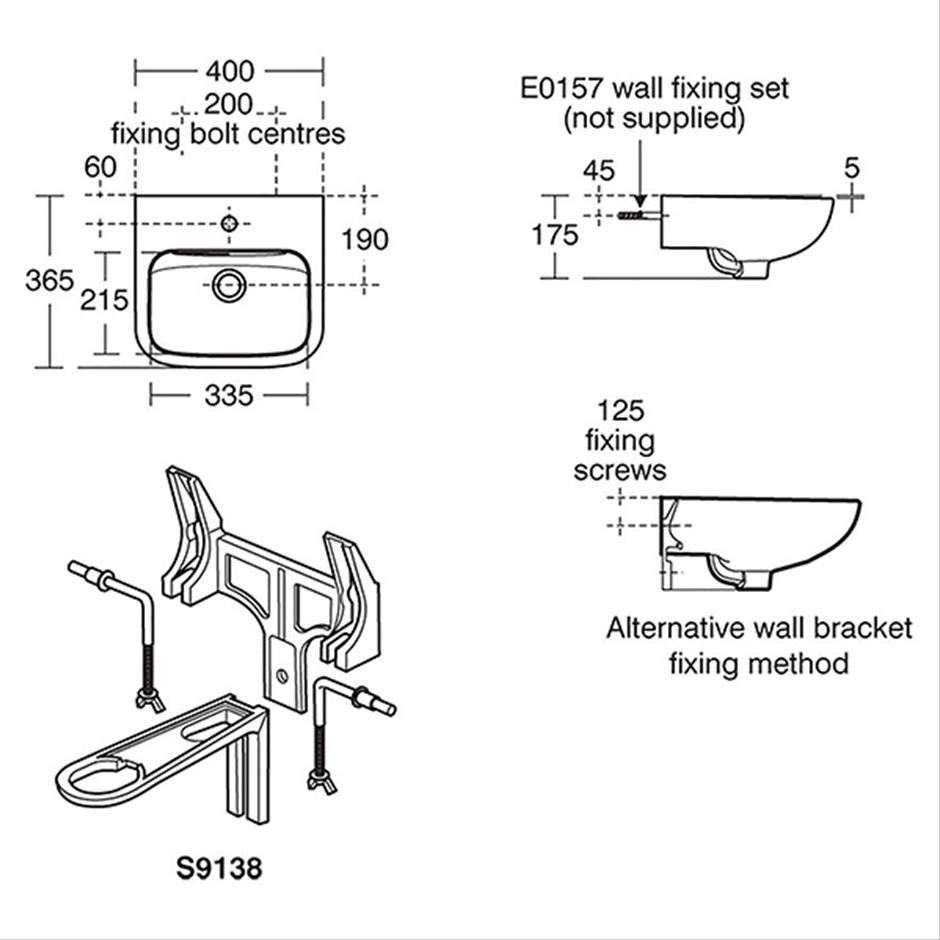

S9138 Bracket for 40cm basins Recommended fixing heights (floor to front rim); Nursery use 600mm Infant use 700mm Junior use 750mm Senior/adult use 780-800mm. Washbasin wall mounted using E015767 wall fixing set or panel mounted using E006267 fixing set
