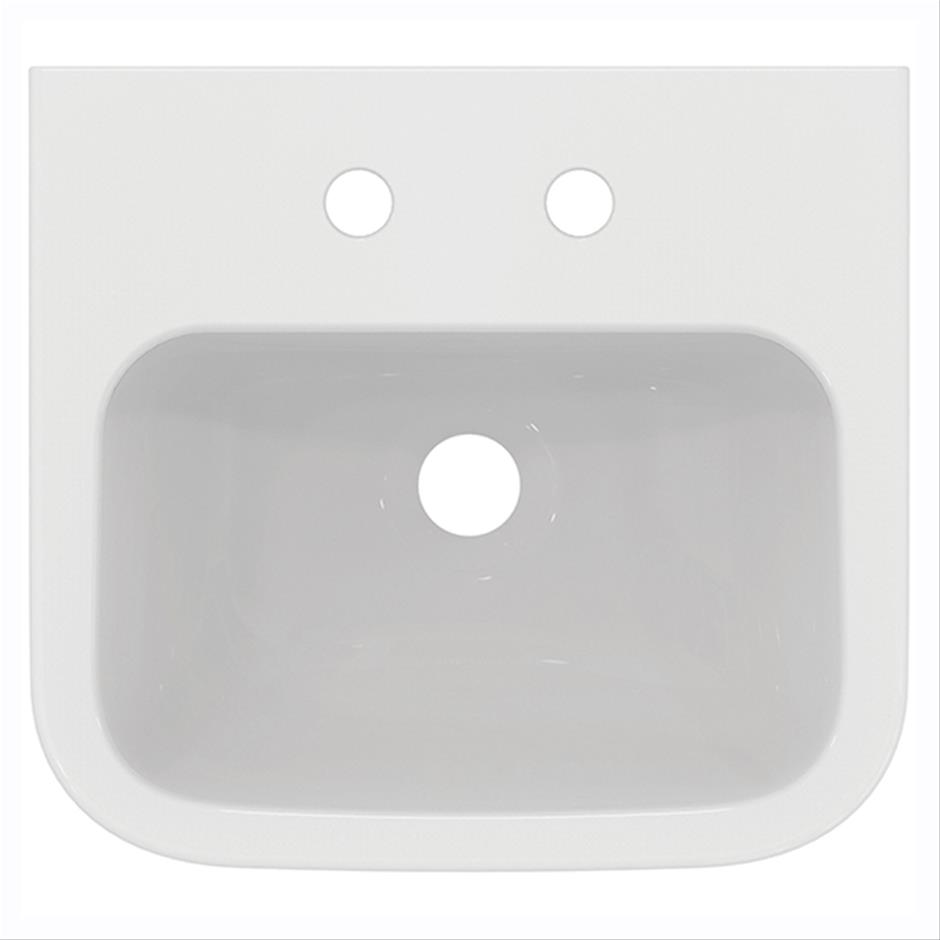

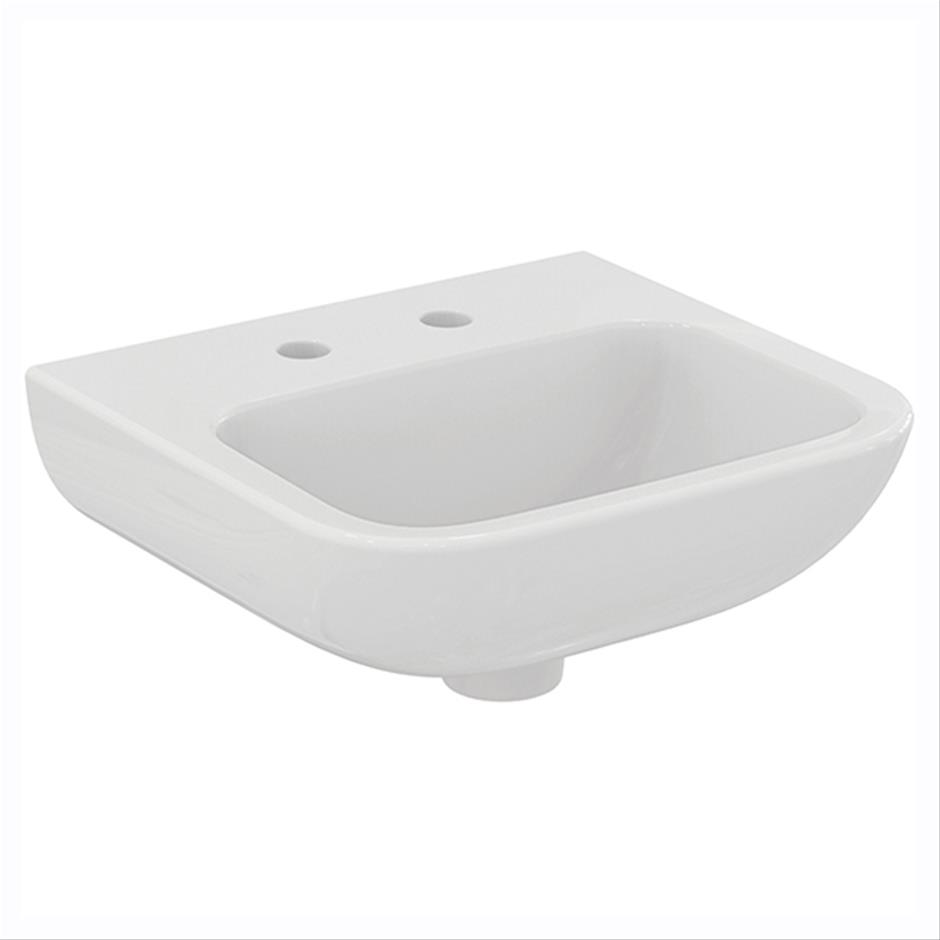

Portman 21 40cm Washbasin

S2158(01) Portman 21 washbasin 40cm, 2 tapholes at 100mm centres, no overflow or chainstay hole

Modern design washbasin in vitreous china in 3 sizes, 60cm, 50cm and 40cm.

Commercial and domestic use
Three sizes available
6 taphole options
Anti vandal applications
With or without overflow
Option for wall or panel fixing set

Finishes

White
(01)

Material:	Vitreous China
Weight:	9.70Kg

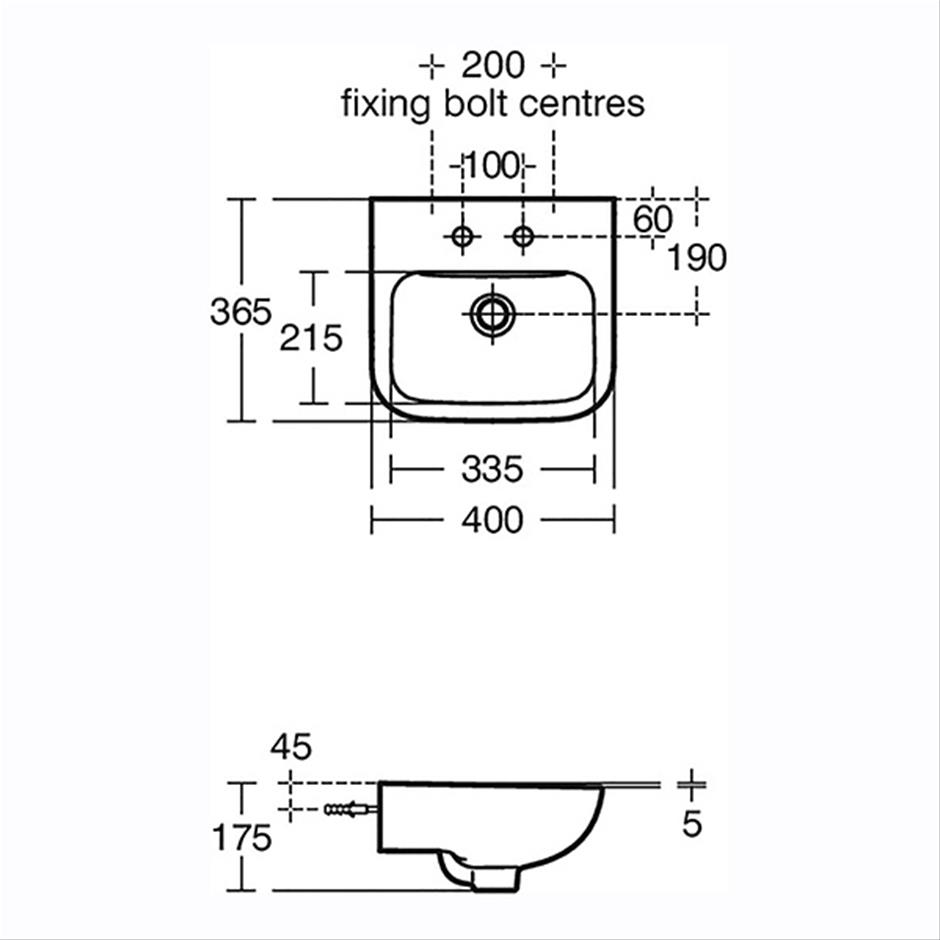

Width:	400mm
Depth:	370mm

Data Sheet Spares Where to Buy

Washbasin

S2158(01) Portman 21 washbasin 40cm, 2 tapholes at 100mm centres, no overflow or chainstay hole

Washbasin Wall Fixings

E0157(67) Wall fixing set

Brassware

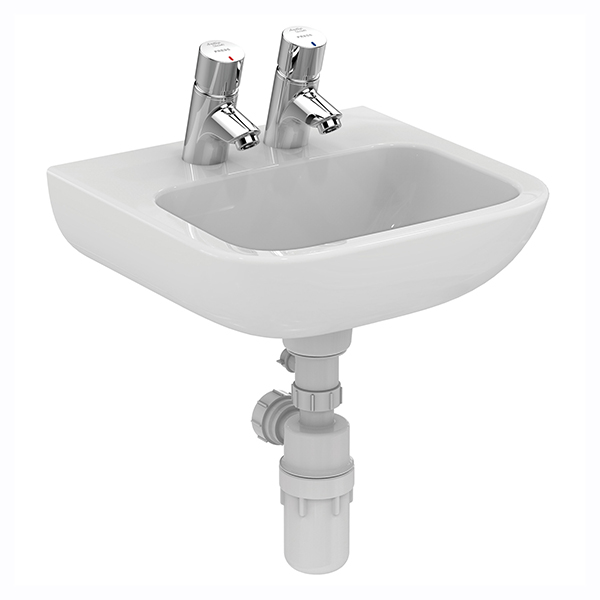

B8267(AA) Avon 21 inclined non-concussive washbasin pillar taps (pair) with dual hot and cold indices per tap, self closing push button, water saving anti-vandal spout regulated to 3.7 litres per minute maximum

Waste

S8720(AA) Waste 1¼" brass strainer waste, 80mm unslotted tail

Trap

S8920(67) Trap 1¼" plastic resealing bottle, 75mm seal, multi-purpose outlet

Washbasin Wall Fixings

E0062(67) Basin fixing set for IPS panels or block walls

Brassware

B9881(AA) Sandringham 21 washbasin pillar taps, lever handles

Waste

S8715(AA) Waste 1¼" waste with bead chain & plug 80mm unslotted tail, screw stay

Waste

S8734(AA) Waste 1¼" brass swivel plug waste, 80mm unslotted tail

Thermostatic Valve

A5900(AA) TMV thermostatic mixing valve, 15mm

Washbasin Support Bracket

S9138(67) Bracket concealed with clamps and centre waste support for Portman 21, 40cm washbasins

Sectors & Solutions

Healthcare

Hospitals

HTM/HBN

Space Saving

Variants

Special notes

S9138 Bracket for 40cm basins Recommended fixing heights (floor to front rim); Nursery use 600mm Infant use 700mm Junior use 750mm Senior/adult use 780-800mm. Washbasin wall mounted using E015767 wall fixing set or panel mounted using E006267 fixing set

Variants

S2314(01)

Portman 21 40cm washbasin, single right hand taphole, no overflow, no chainstay hole

View Favourite Specify
S2317(01)

Portman 21 washbasin 40cm, 2 tapholes at 100mm with overflow and chainstay hole

View Favourite Specify
S2315(01)

Portman 21 washbasin 40cm, 1 taphole, no overflow or chainstay hole

View Favourite Specify
S2156(01)

Portman 21 washbasin 40cm, no tapholes no overflow no chainstay hole

View Favourite Specify
S2159(01)

Portman 21 washbasin 40cm, 1 left hand taphole no overflow, no chainstay hole

View Favourite Specify
S2157(01)

Portman 21 washbasin 40cm, 1 taphole with overflow, no chainstay hole

View Favourite Specify

Material:	Chrome Plated Brass
Weight:	2.25 Kg
Flow rate:	3.7 Litres per minute @ 3 bar pressure

Material:	Chrome Plated
Weight:	0.23 Kg
HTM code:	WT1

Material:	Plastic
Weight:	2.00 Kg
HTM code:	TRR1/P

Material:	Chrome Plated Brass
Weight:	1.10 Kg
Flow rate:	8 Litres per minute @ 3 bar pressure

Material:	Chrome Plated Metal
Weight:	0.28 Kg
HTM code:	WT3
