Avon 21 Self-Closing Shower Panel

Easy Fit Shelf Solution For Recreational Washroom Showering

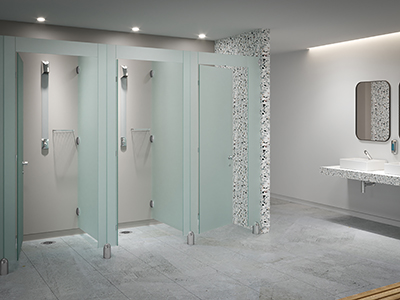

The new Armitage Shanks Avon 21 self-closing shower panel is a pre-plumbed push button shower that's perfect for leisure, recreational and educational washroom applications

Whether it's for retrofit or new build, communal or cubicle installations.

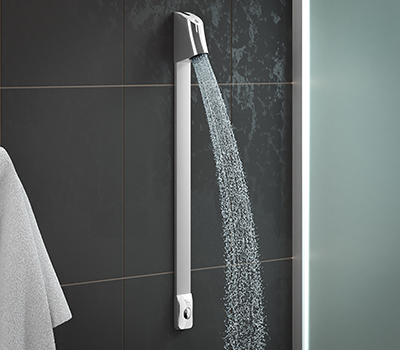

With a modern, slim aluminium cover body concealing all fixings and polished top and tail pieces, the Avon 21 offers one of the smartest and most appealing designs currently available for a self-closing shower panel in the UK.

View Avon 21 Shower Panel Product Details

Simple To Use

A single operation push button means that users can't go wrong. When pressed, the shower runs for a pre-set time of approx. 30 seconds before automatically switching off.

The run time is amplefor the user when used in combination with our supplied choice of flow regulators, ensures efficient water usage.

This anti-vandal safety shut-off feature is perfect for today's commercial environments.

The shower has no controls for temperature, instead a connection to a single water supply pipe is required, supplying either cold or premixed water.
To ensure safe temperature water delivery, the use of a thermostatic mixing valve A5900AA or A5901AA is recommended.

Simple To Install And Maintain

Being pre-plumbed and lightweight means it's really easy to install.

For a standard exposed top inlet installation, the panel is supplied ready to run straight out of the box.

For installations requiring rear/back supply assembly, simply use the recommended 90 degree elbow to ensure that supply can then be completely concealed within the panelling.

Flow rate is controlled by a flow regulator pre-installed in the showerhead outlet.
And being Armitage Shanks you can be sure it complies to Regulation 4 certification.

View Avon 21 Shower Panel Product Details

Water Saving With Safety Built In

Once pressed, the self-closing valve automatically shuts off the water after 30 seconds, minimising wasted water and reducing the risk of flooding.

The panel is fitted with a 6 litre per minute low-flow with an alternative 8 litre per minute flow regulator supplied.

Avon 21 Key Features And Benefits

Simple push button operation.

Self-closing cartridge with a long-life 500000 cycle durability.

Water saving operation with timed flow of approx. 30 seconds.

Supplied pre-plumbed for connection to a single water supply pipe, either cold or premixed.
Standard top inlet installation, ready to be plumbed-in straight out of the box. Service/isolation valves accepts 15mm inlet pipe. Concealed installation requires additional service/isolation elbow. Spare part EW244NU.

Fixed showerhead with orientable jet and easy-clean, anti-limescale silicone nozzles.

6 lpm factory fitted flow regulator with alternative 8 lpm flow regulator supplied.

Wide ranging operating pressure, 1 - 5 bar dynamic.

Durable and attractive injection moulded chromed ABS head ad tall, body extruded aluminium cover.

Regulation 4 compliant.
