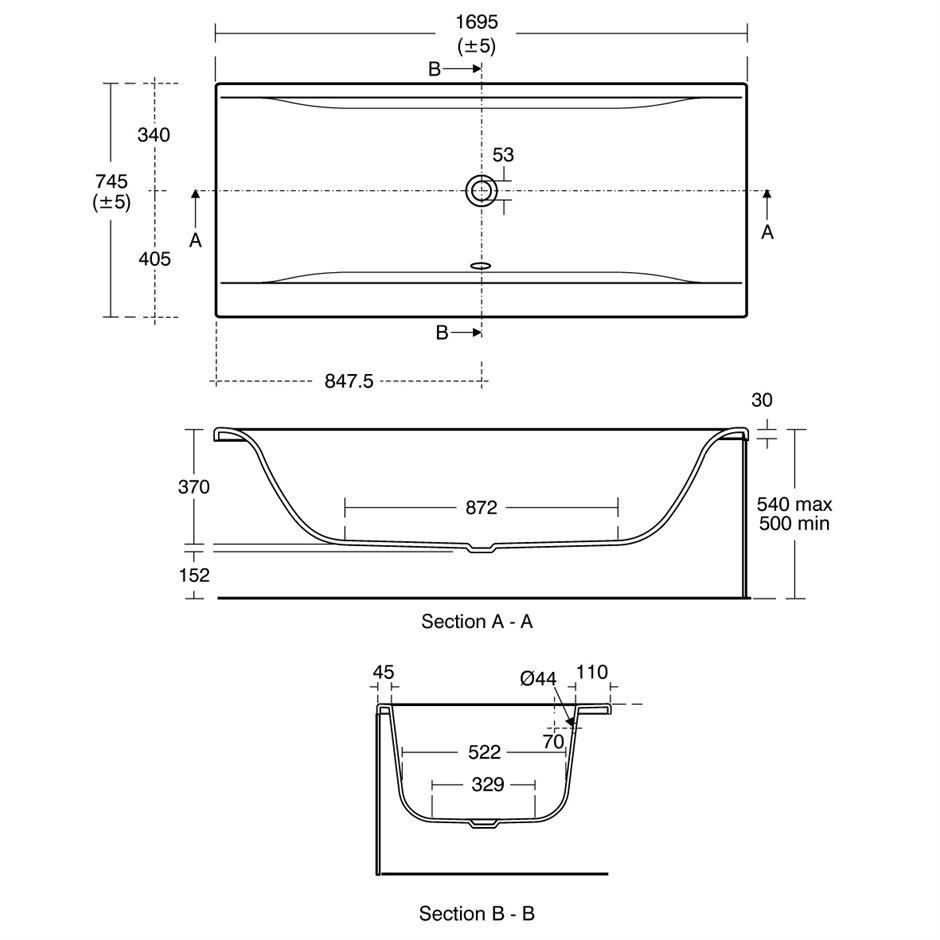

Concept 170cm x 75cm Idealform Plus+ Double Ended Bath No Tapholes

E8604(01) Concept 170cm x 75cm Idealform Plus+ double-ended bath with no tapholes

Double-ended Concept bath with gently sloped interior design matched to the extensive Concept range.

Domestic and hotel use
Ergonomic back rests
Double-ended
Also available as Idealform

Finishes

White
(01)

Material:	Idealform Plus+
Weight:	22.50Kg
Water Saving:	No
Capacity:	200.0 Litres

Standards: Constructed to EN 198:2008. EN 14516

Data Sheet Spares Where to Buy

Bath

E8604(01) Concept 170cm x 75cm Idealform Plus+ double-ended bath with no tapholes

Bath Front Panel

E4797(01) Unilux Plus+ 170cm front panel

Bath End Panel

E4832(01) Unilux Plus+ 75cm end panel

Bath Waste

E1486(AA) Luxury bath pop-up waste and overflow

Thermostatic Valve

A5901(AA) TMV thermostatic mixing valve, 22mm

Brassware

BD264(AA) Ceraplan dual control bath filler

Sectors & Solutions

Hotels

Residential

Student Accommodation

Special notes

Consideration must be given to safe hot water delivery and the use of an appropriate temperature reduction device, see A5901AA or Part G for guidance. One taphole fittings require offsetting from the overflow. Check positioning and compatibility before specifying. Provision must be made to fix taps prior to bath installation and for future maintenance, if taps are positioned as photo.

Material:	High Impact Polystyrene
Weight:	3.65 Kg

Material:	High Impact Polystyrene
Weight:	2.58 Kg

Material:	Chrome Plated Metal
Weight:	0.60 Kg

Material:	Chrome Plated Brass
Weight:	2.39 Kg

Concept 170cm x 75cm Idealform Plus+ Double Ended Bath No Tapholes

170cm Bath

170cm Front Panel

75cm Bath End Panel

Luxury bath pop-up waste and overflow

22mm Thermostatic Mixing Valve

Brassware
