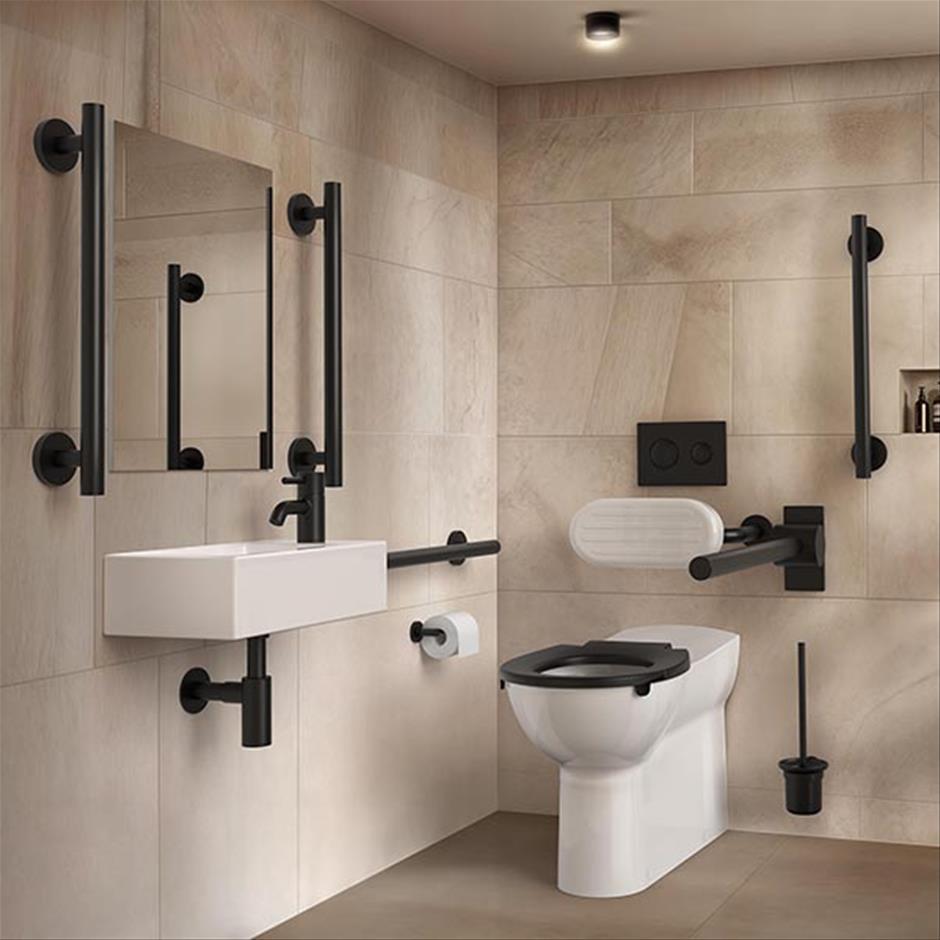

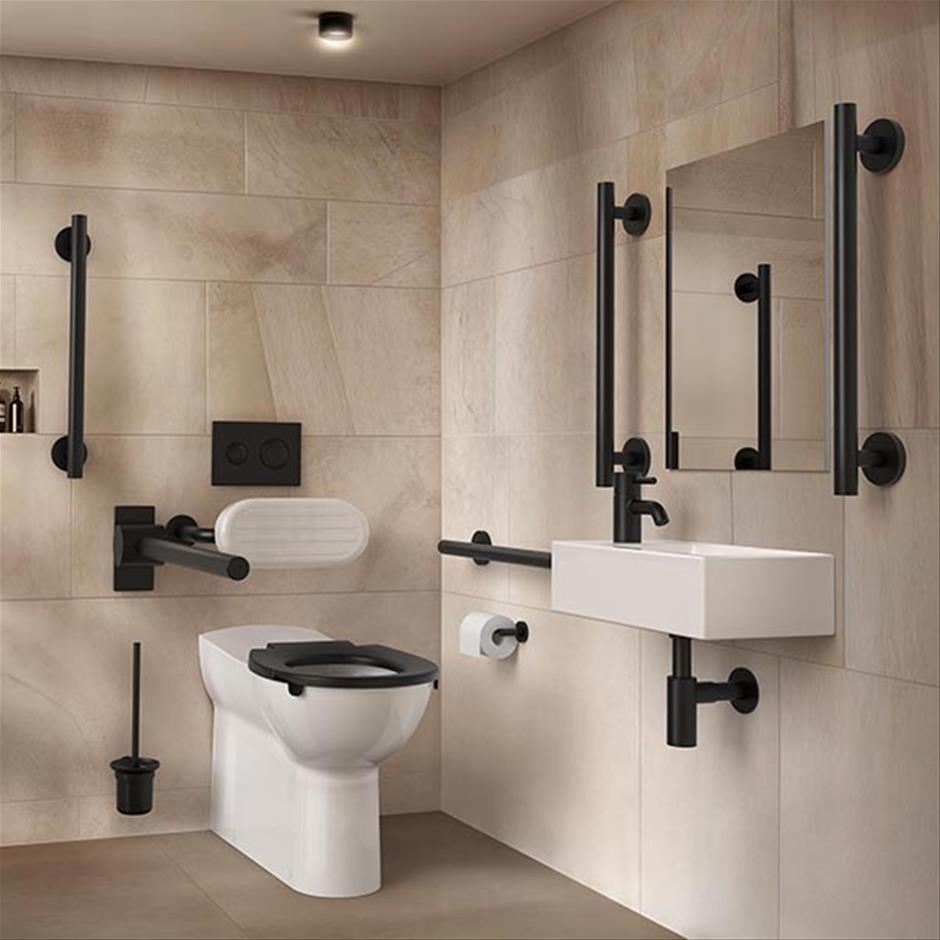

Doc M Contour 21+ Back To Wall - Individual Items

S0438(HY) Contour 21+ 75cm projection back-to-wall rimless toilet bowl with horizontal outlet and anti-microbial glaze

Individual items for left hand Doc M back to wall pack, choosing the optional washbasin from individual items gives items for right hand Doc M back to wall pack. All Doc M packs are specifically designed to latest recommendations which call for the tap to be positioned more conveniently on the side of the basin closest to the seated user.

For right hand corner arrangement substitute washbasin S247401 for S247301.

For the complete pack that these items relate to see S0685 (left hand) and S0686 (right hand) pack codes.


  • For individual items see "illustrated" tab

  • White with SmartGuard
    (HY)
Material: Vitreous China
Weight: 36.00Kg


Data Sheet Spares Where to Buy

WC Pan

S0438(HY) Contour 21+ 75cm projection back-to-wall rimless toilet bowl with horizontal outlet and anti-microbial glaze

Hide

WC Pan

S0438 Contour 21+ 75cm projection back-to-wall rimless toilet bowl with horizontal outlet and anti-microbial glaze


Finish

White with SmartGuard (HY)

Material: Vitreous China
Weight: 36.00 Kg

View

Washbasin

S2474(01) Contour 21 37cm handrinse washbasin right hand taphole no overflow or chainstay hole, bottom outlet

Hide

37cm Washbasin

S2474 Contour 21 37cm handrinse washbasin right hand taphole no overflow or chainstay hole, bottom outlet


Finish

White (01)

Material: Vitreous China
Weight: 7.50 Kg
Width: 370mm
Depth: 300mm
Handed: Right

View

Brassware

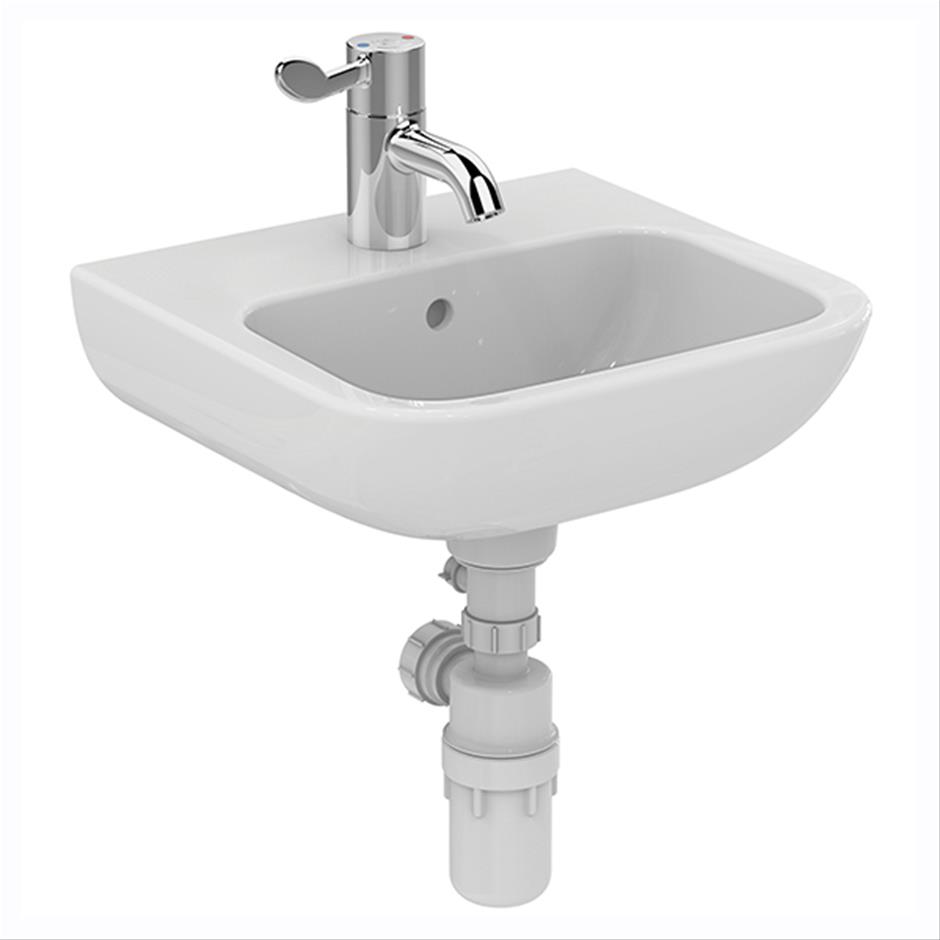

A6697(AA) Contour 21+ 1 hole thermostatic basin mixer, single sequential lever with copper tails

Hide

Thermostatic basin mixer

A6697 Contour 21+ 1 hole thermostatic basin mixer, single sequential lever with copper tails


Finish

Chrome (AA)

Material: Chrome Plated Brass
Weight: 2.10 Kg
Flow rate: 3.9 Litres per minute @ 3 bar pressure

View

Washbasin Wall Fixings

S9110(67) Hangers concealed, Steel

Hide

Washbasin Wall Fixings

S9110 Hangers concealed, Steel


Finish

Neutral / No Finish (67)

Material: Metal
Weight: 0.24 Kg

View

Trap

S8910(67) Trap 1¼" plastic bottle, 75mm seal, multi-purpose outlet

Hide

Trap 1¼" Plastic Bottle

S8910 Trap 1¼" plastic bottle, 75mm seal, multi-purpose outlet


Finish

Neutral / No Finish (67)

Material: Plastic
Weight: 0.20 Kg

View

Waste

S8810(01) Waste 1¼" plastic strainer, dished pattern 80mm unslotted tail

Hide

1¼" Plastic Strainer

S8810 Waste 1¼" plastic strainer, dished pattern 80mm unslotted tail


Finish

White (01)

Material: Plastic
Weight: 0.04 Kg

View

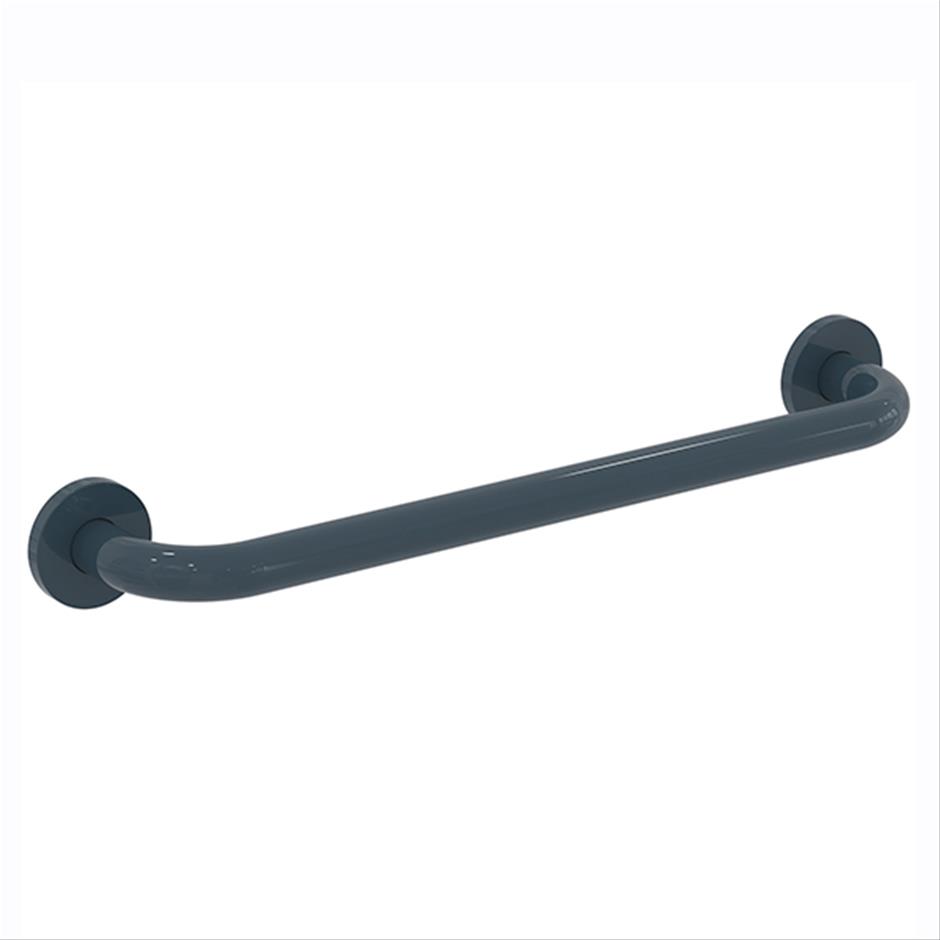

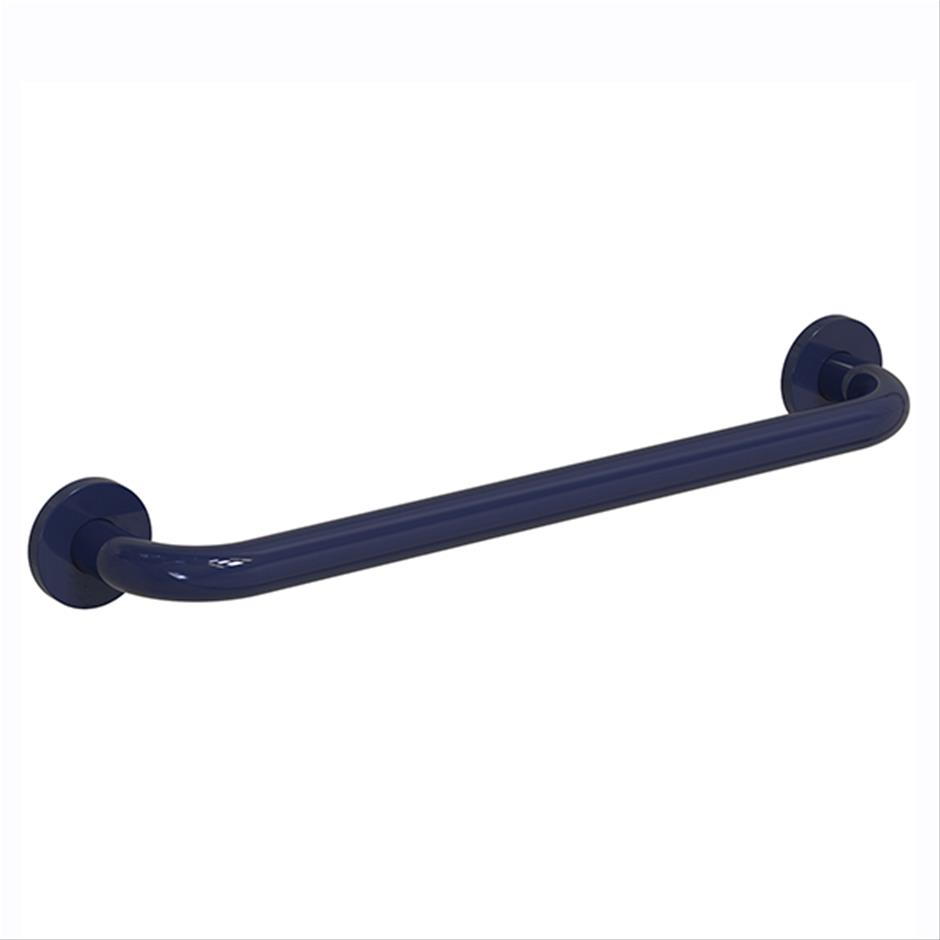

Grab Rails

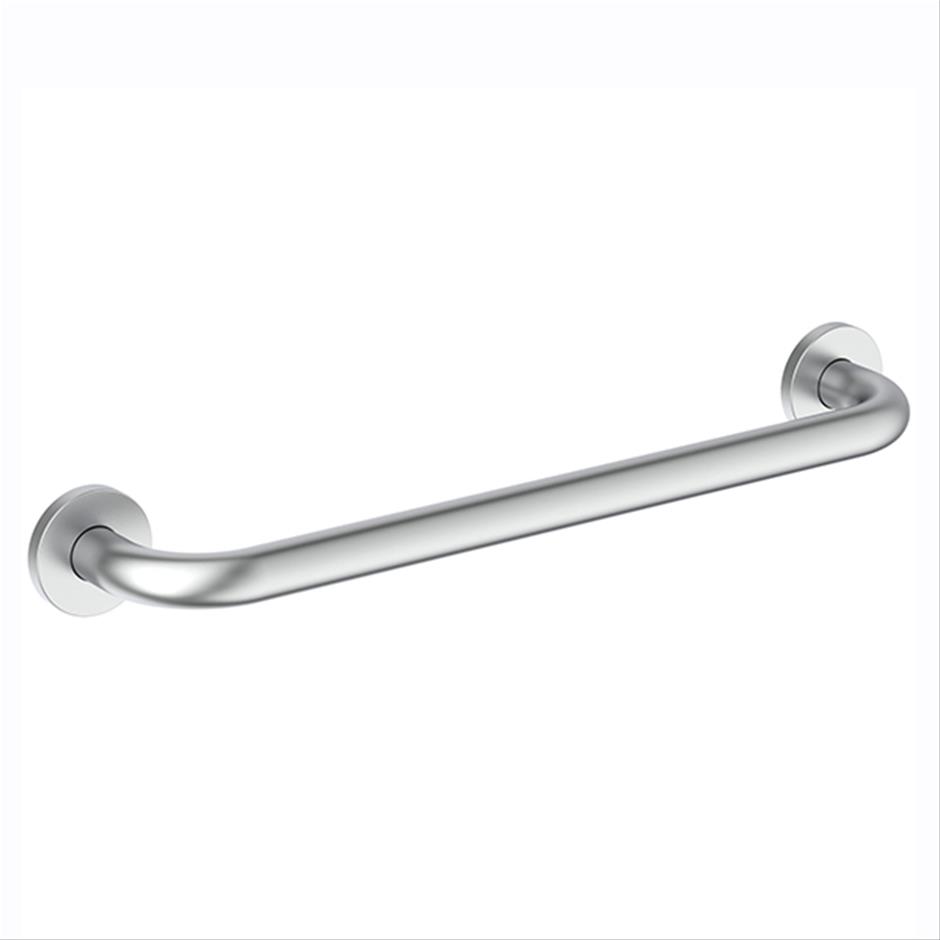

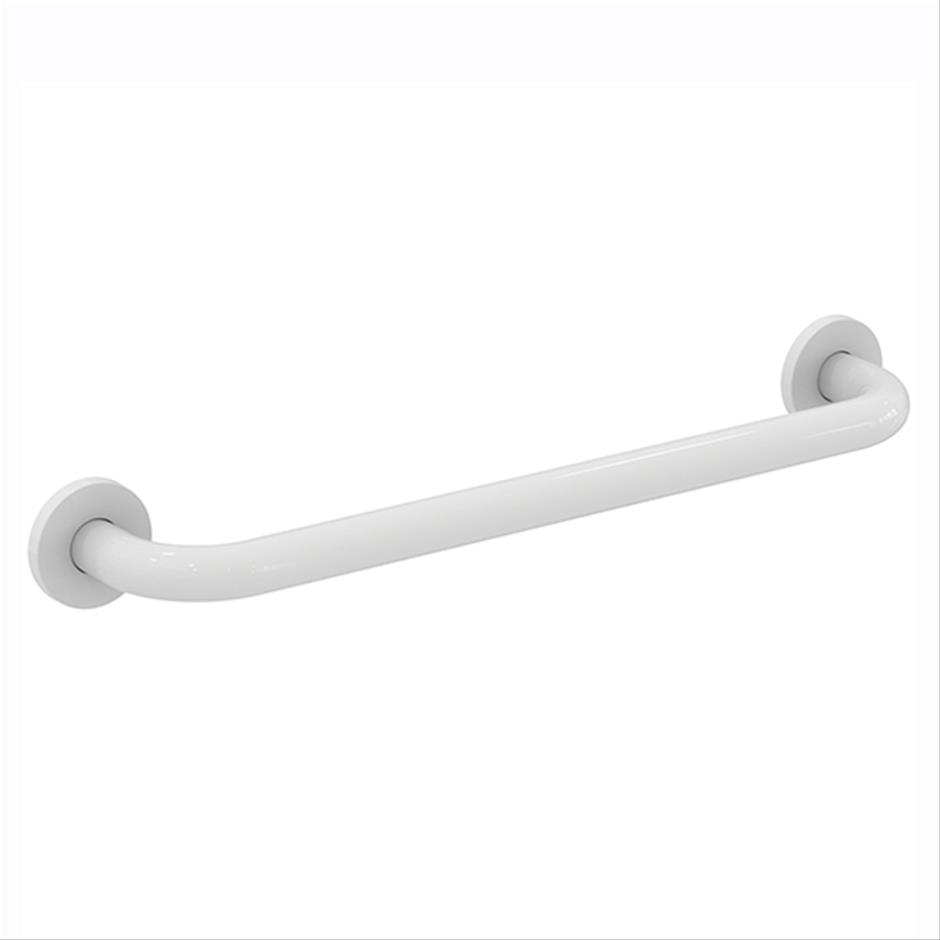

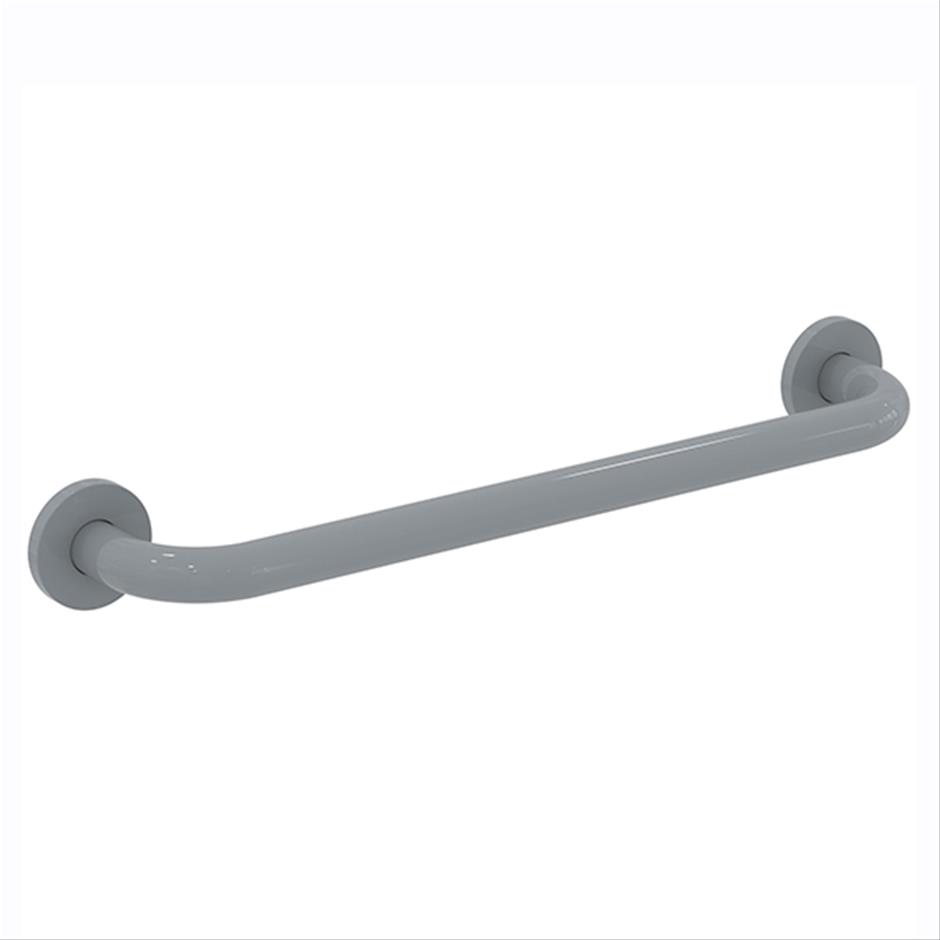

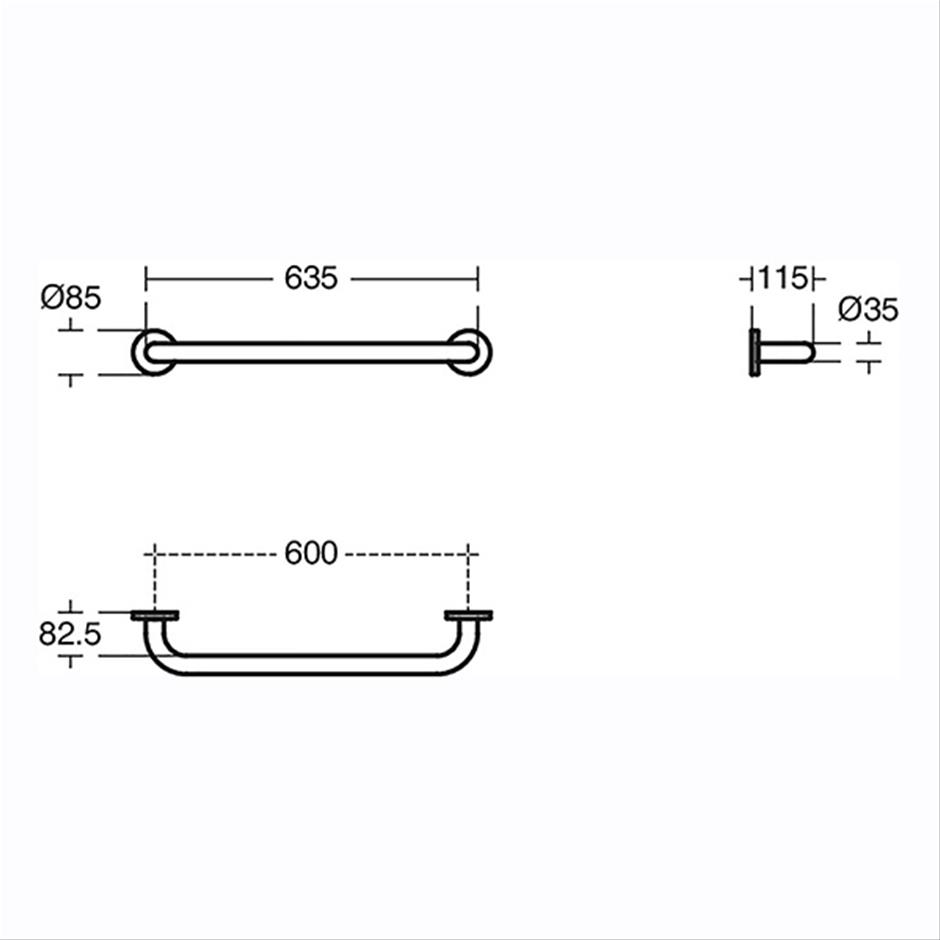

S6454(36) Contour 21 grab rail straight 60cm long x 35mm diameter (x4)

Hide

60cmx35mm Grab Rail

S6454 Contour 21 grab rail straight 60cm long x 35mm diameter


Finish

Blue (36)

Material: Aluminium
Weight: 0.62 Kg

View

Grab Rails

S6452(36) Contour 21 grab rail straight 45cm long x 35mm diameter

Hide

45cmx35mm Grab Rail

S6452 Contour 21 grab rail straight 45cm long x 35mm diameter


Finish

Blue (36)

Material: Aluminium
Weight: 0.62 Kg

View

Grab Rails

S6360(36) Contour 21 hinged support rail 80 x 35mm diameter, Doc M compliant

Hide

80cmx35mm Hinged support rail

S6360 Contour 21 hinged support rail 80 x 35mm diameter, Doc M compliant


Finish

Blue (36)

Material: Aluminium
Weight: 3.15 Kg

View

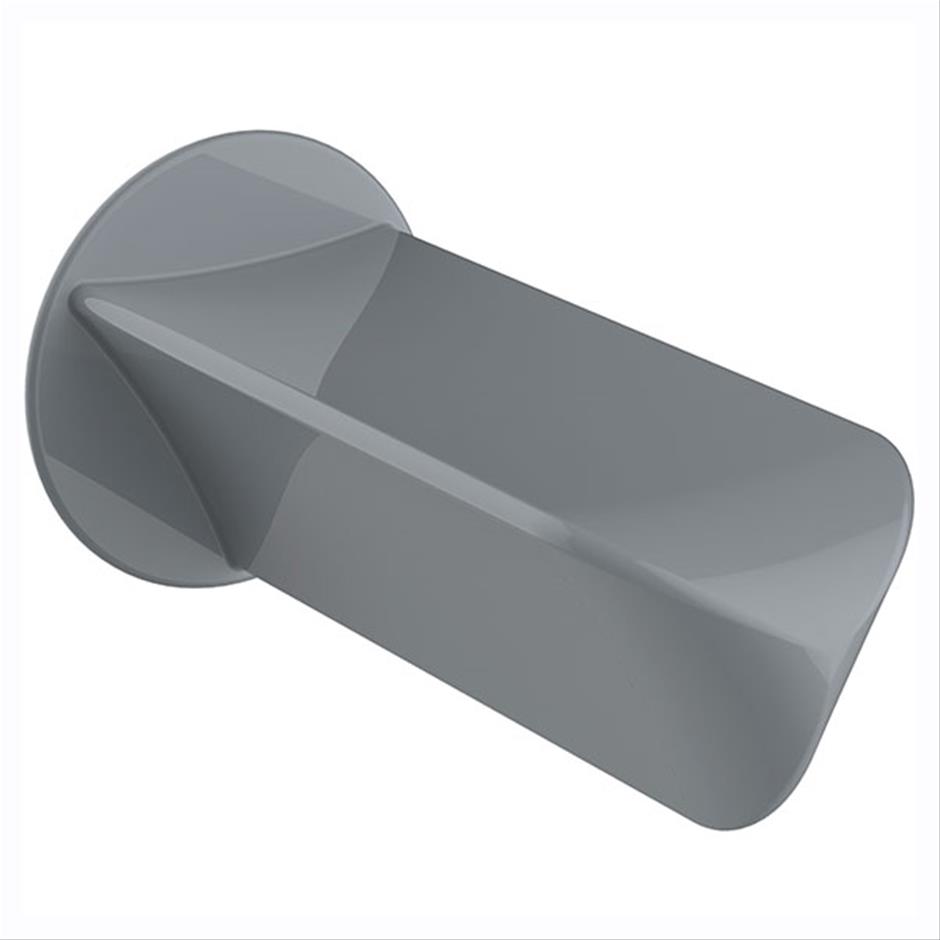

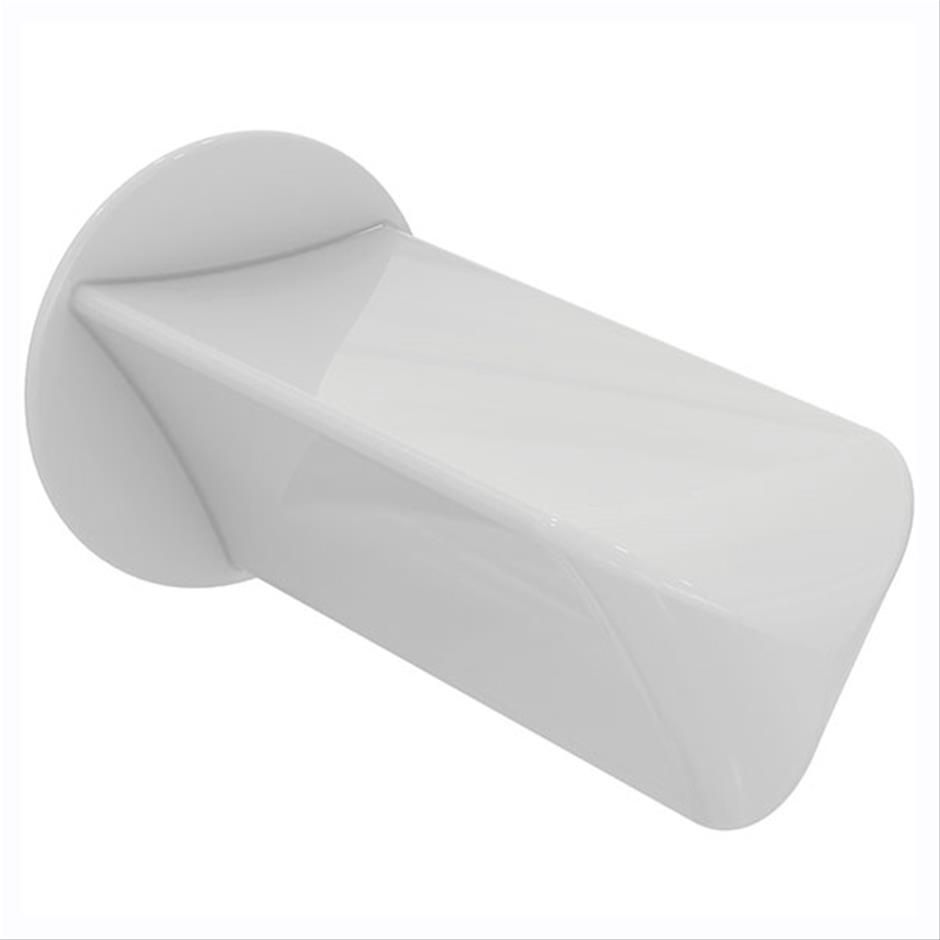

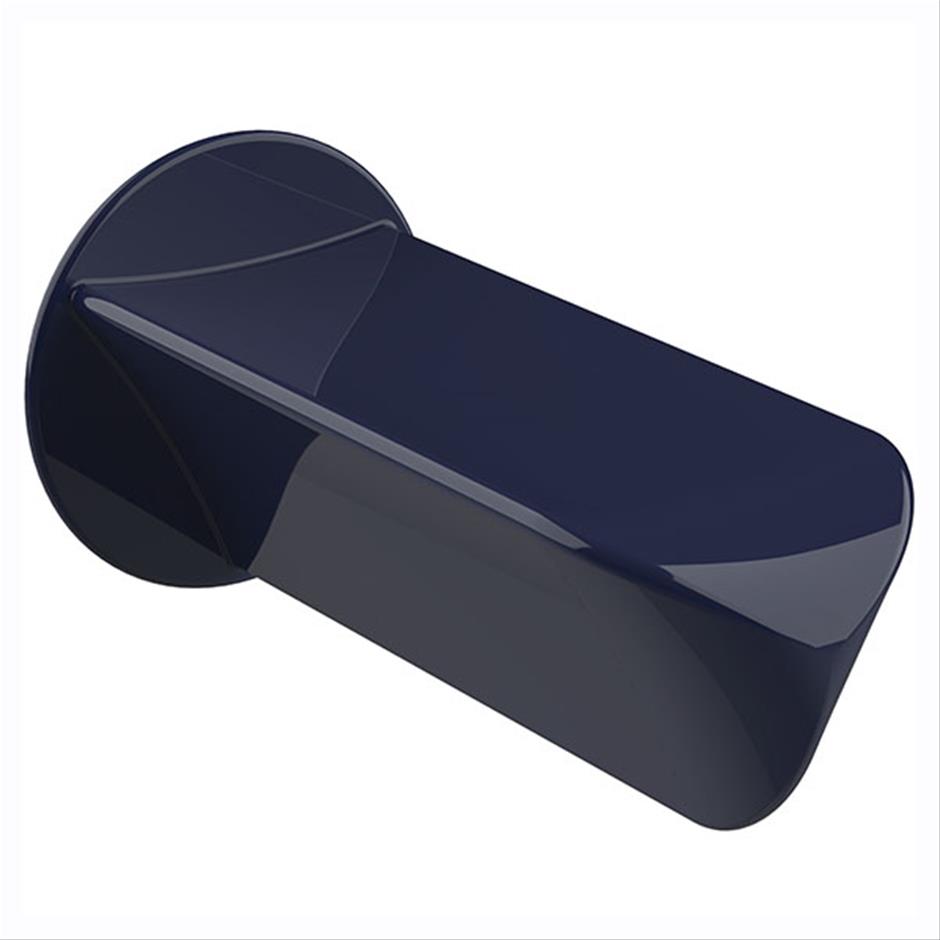

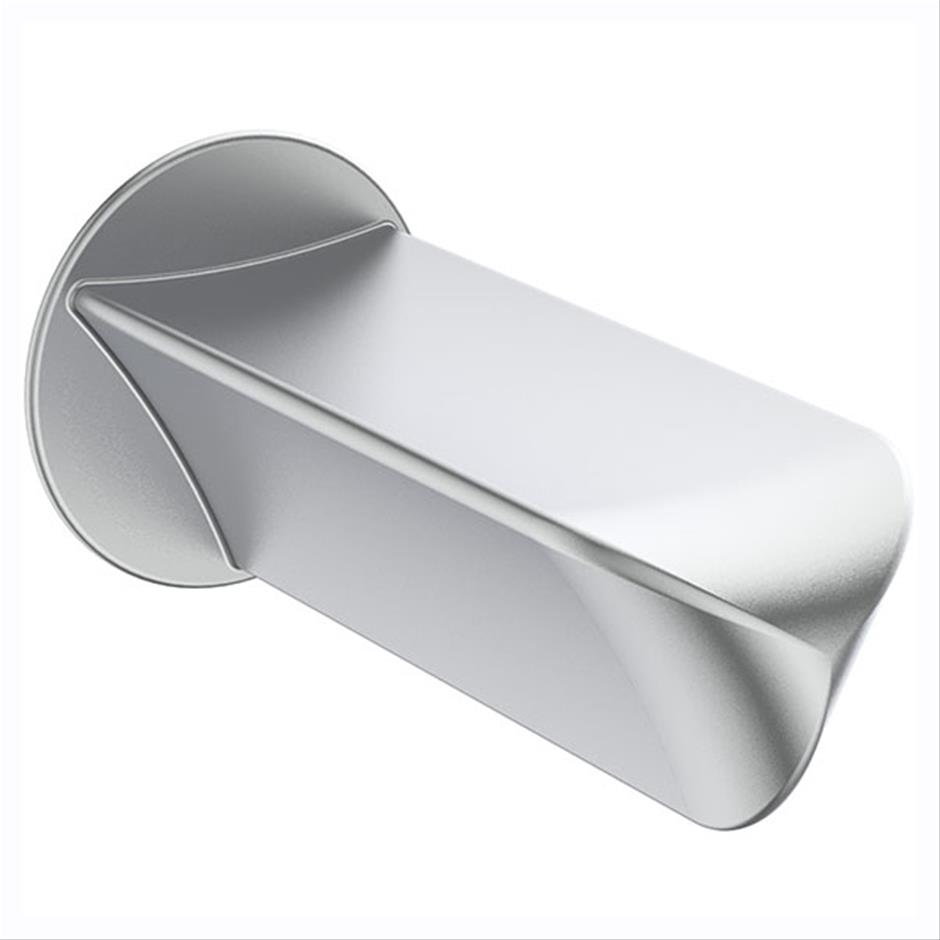

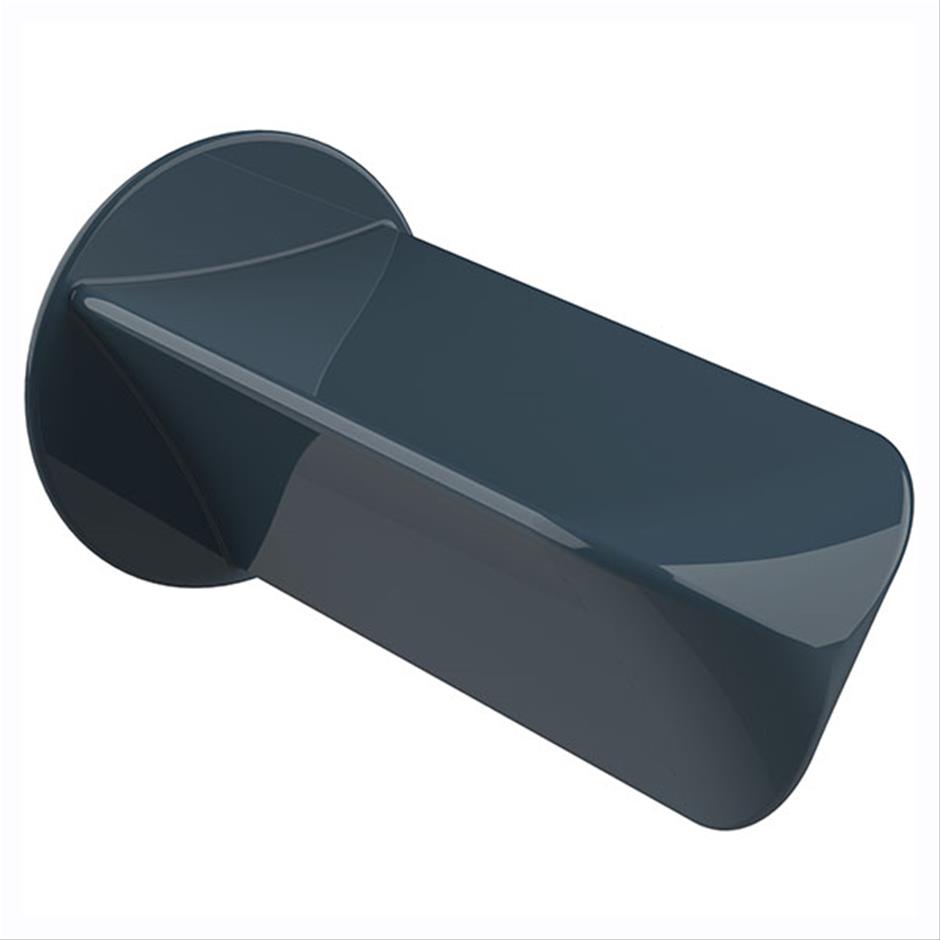

Toilet Roll Holder

S6363(36) Toilet roll holder for Contour 21 hinged arm rail

Hide

Toilet Roll Holder

S6363 Toilet roll holder for Contour 21 hinged arm rail


Finish

Blue (36)

Material: Aluminium
Weight: 0.34 Kg

Cistern

S3621(67) Conceala 2 4.5 or 6 litre cistern, single flush syphon, bottom supply, internal overflow, alternative height plastic flushbends, no lever

Hide

4.5 or 6 Litre Single Flush Cistern

S3621 Conceala 2 4.5 or 6 litre cistern, single flush syphon, bottom supply, internal overflow, alternative height plastic flushbends, no lever


Finish

Neutral / No Finish (67)

Material: Plastic
Weight: 3.00 Kg
Capacity: 6.0 Litres

View

WC Seat

S4066(36) Contour 21 toilet seat only, top fixing hinges and retaining buffers

Hide

WC Seat no cover

S4066 Contour 21 toilet seat only, top fixing hinges and retaining buffers


Finish

Blue (36)

Material: Plastic
Weight: 1.55 Kg

View

WC Actuator

S4516(AA) Lever flushing spatula for Conceala cistern

Hide

Cistern Lever Conceala

S4516 Lever flushing spatula for Conceala cistern


Finish

Chrome (AA)

Material: Chrome Plated Metal
Weight: 0.30 Kg

WC Back Support

S6466(36) Contour 21 back support rail with clips for 75cm projection WC, 40 x 22 x 35mm diameter tube

Hide

40x22cm WC Back Support

S6466 Contour 21 back support rail with clips for 75cm projection WC, 40 x 22 x 35mm diameter tube


Finish

Blue (36)

Material: Aluminium
Weight: 0.62 Kg

View

WC Cushion

S6884(67) Cushion for back support with clips, new design

Hide

WC Cushion

S6884 Cushion for back support with clips, new design


Finish

Neutral / No Finish (67)

Material: Mixed Material
Weight: 4.00 Kg

View

Washbasin

S2473(01) Contour 21 37cm handrinse washbasin left hand taphole no overflow or chainstay hole, bottom outlet

Hide

37cm Washbasin

S2473 Contour 21 37cm handrinse washbasin left hand taphole no overflow or chainstay hole, bottom outlet


Finish

White (01)

Material: Vitreous China
Weight: 7.50 Kg
Width: 370mm
Depth: 300mm
Handed: Left
Capacity: 4.5 Litres

View

Sectors & Solutions

Education

Hotels

Offices

Sports and Leisure

Doc M

Water Saving

Special notes

For LRV and RAL numbers see Doc M introduction. For right hand corner arrangement substitute hand rinse washbasin S247401 for S247301. 600mm grab rail S6454 x 4 for room set. 450mm grab rail S6452 is for back of door. White:Ral=9016, LRV=87 Blue:Ral=5011, LRV=6 Red:Ral=3020, LRV=12 Grey:Ral=7005, LRV=19 Charcoal:Ral=7016, LRV=8
