Andria 2 Squatting Toilet

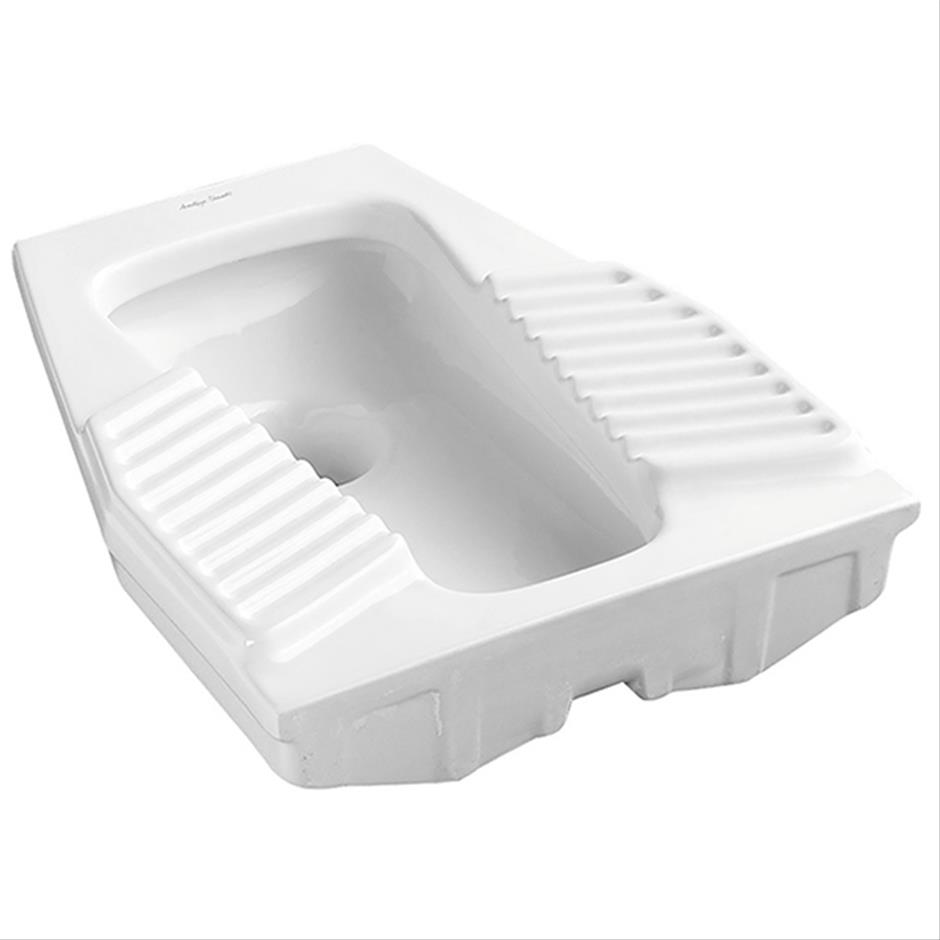

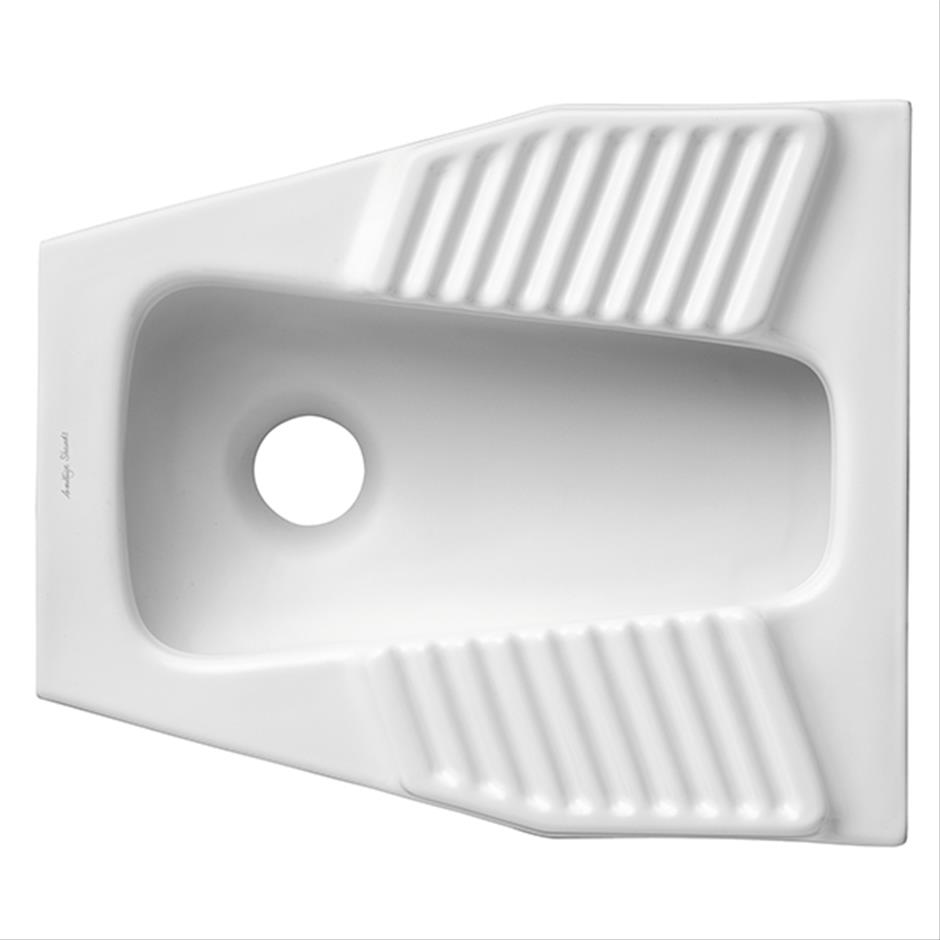

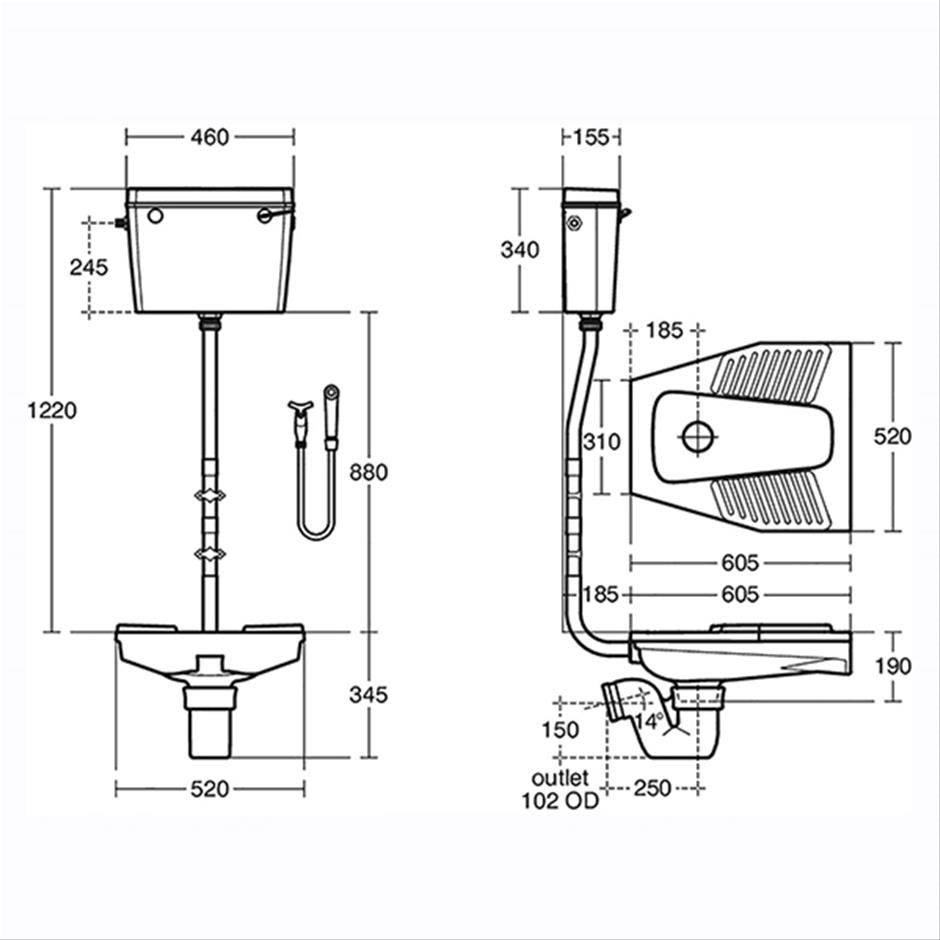

V4123(01) Andria 2 squatting toilet bowl with horizontal outlet

Eastern washdown toilet bowl in vitreous china. Andria features integral treads and loose trap for fitting at floor level.

Public and domestic use
Washdown WC
Integral treads

Finishes

White
(01)

Material:	Vitreous China
Weight:	17.00Kg

Standards: BS EN 997 & BS EN 33

Data Sheet Spares Where to Buy

WC Pan

V4123(01) Andria 2 squatting toilet bowl with horizontal outlet

Trap

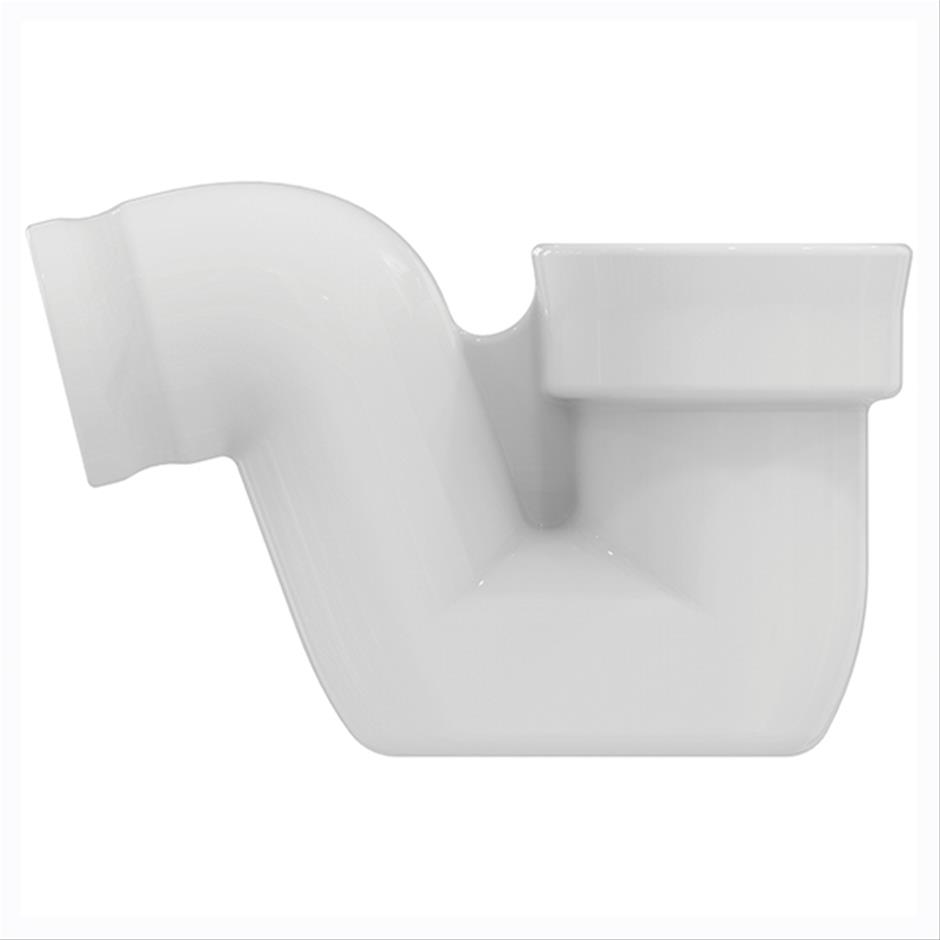

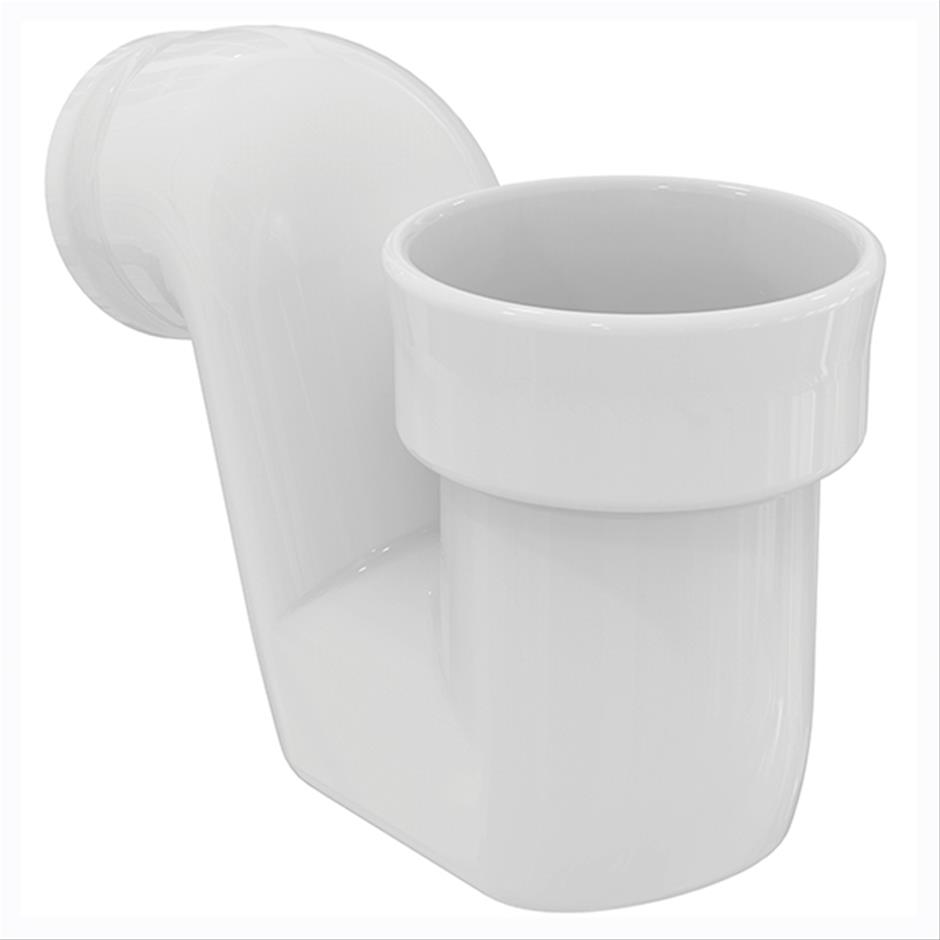

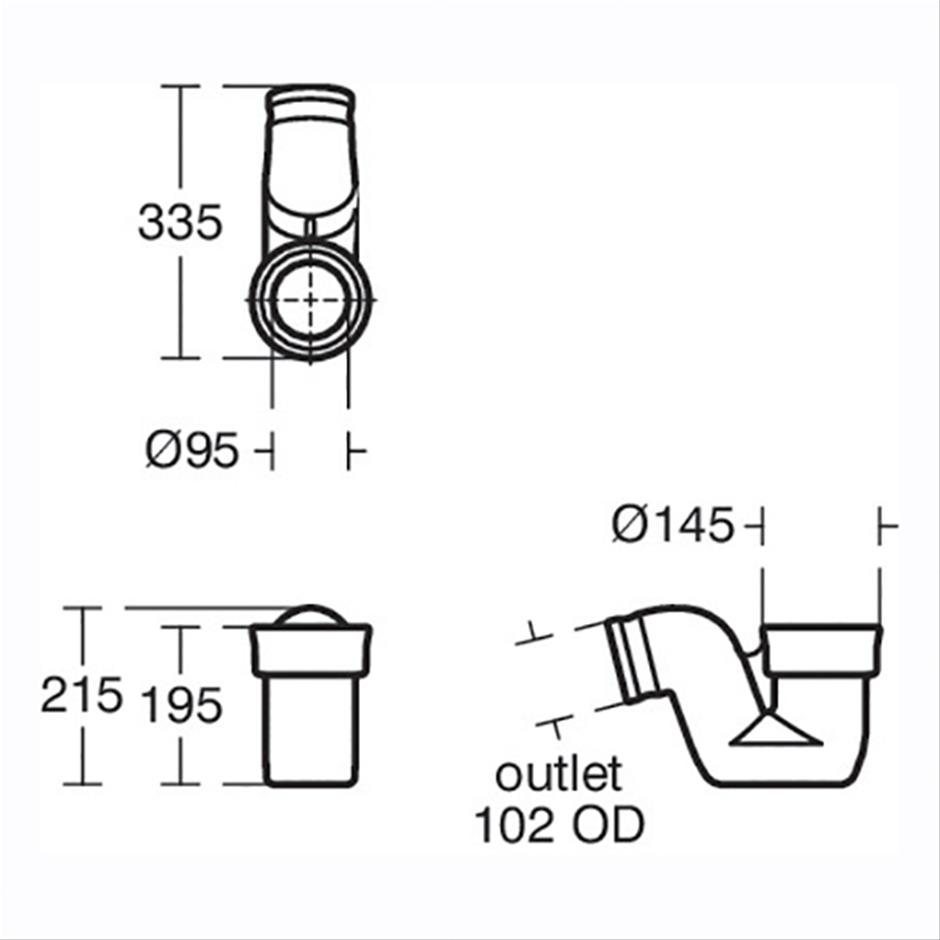

S3580(01) Andria P trap for squatter

Bib Tap Mount

B1685(AA) Nimbus 21 concealed bib tap wall mount with self centralising installation (single)

Brassware

B1676(AA) Nimbus 21 bib tap ablution spray with hose and handspray (single)

Flushpipe

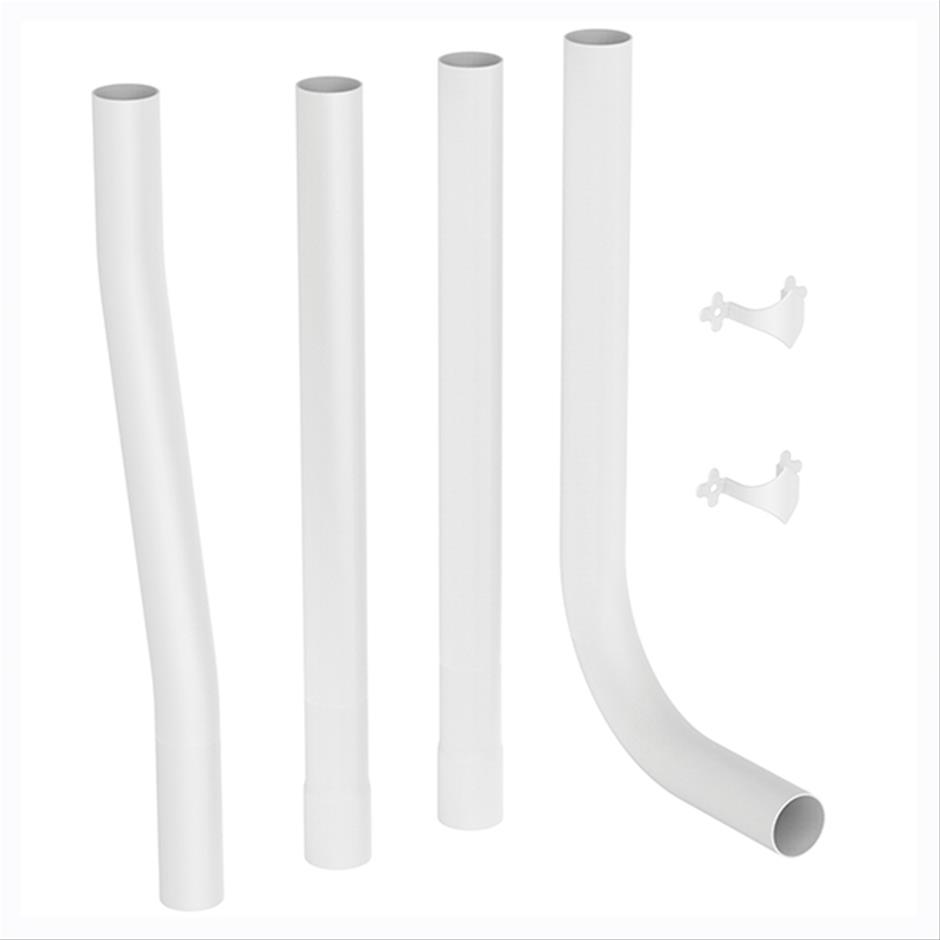

SV323(01) Regal flushpipe, H/L for Andria Squatting Pan

Cistern

S1158(01) Regal low level side inlet cistern with 6 litre syphon flush

WC Outlet Connector

S4325(01) Panekta outlet connector, finned pattern, straight

Ancillary

S4505(67) Simpla Inlet Connector

Cistern

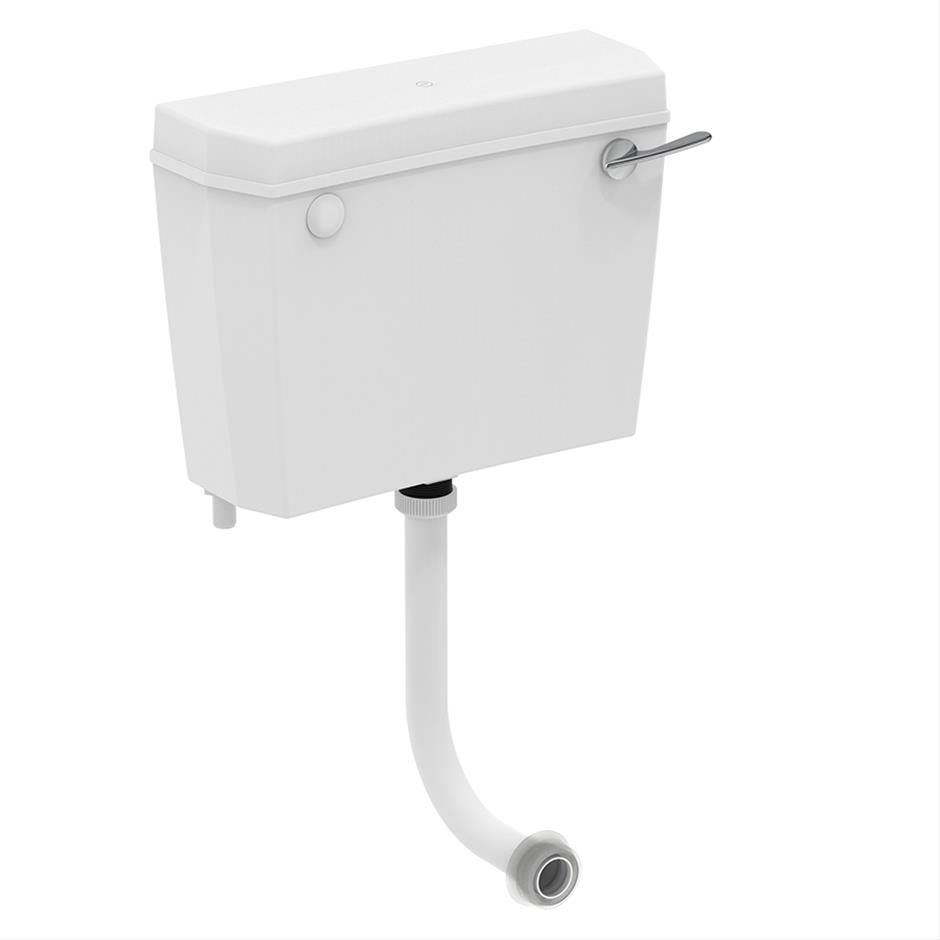

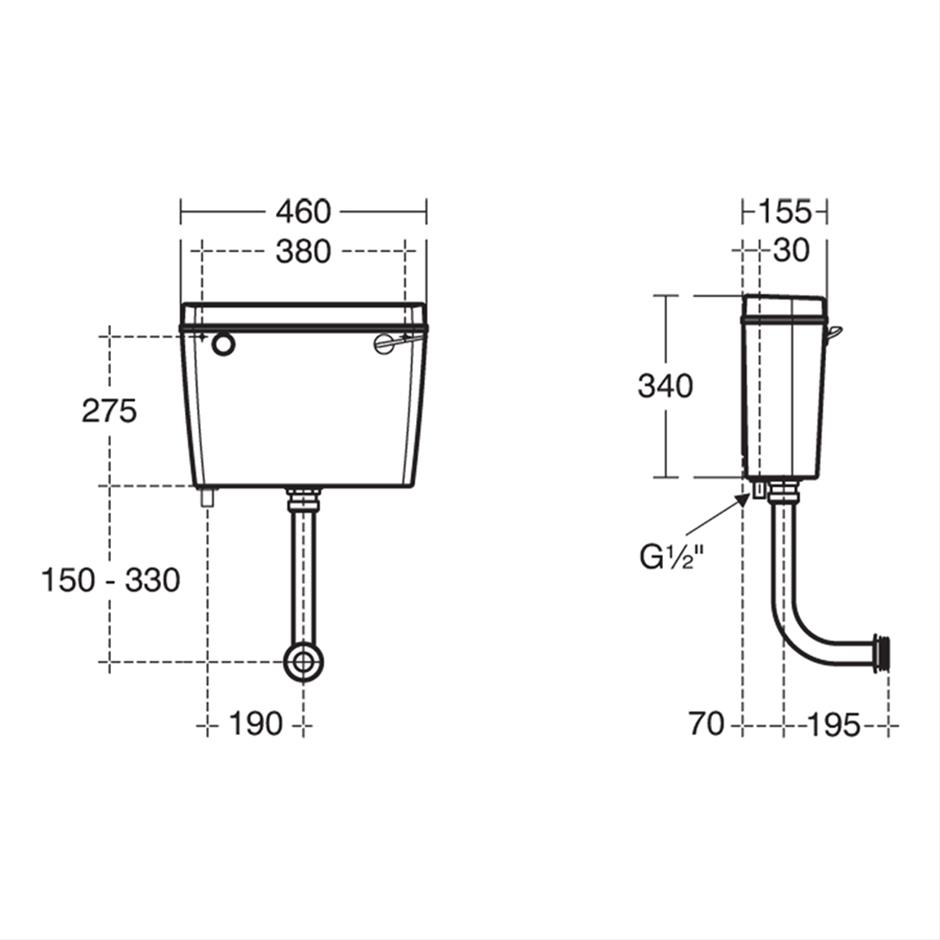

S1159(01) Regal low level bottom supply cistern with 6 litre syphon flush

Cistern

S1164(01) Regal high level plastic 6 litre cistern, single flush syphon, side supply, internal overflow, metal chain pull with 4 piece plastic flushpipe (fittings are reversible)

Sectors & Solutions

Sports and Leisure

Special notes

Squatting Pan must be used in combination with the S358001 Ceramic P trap. Ensure the Trap is effectively caulked in using appropriate sealant to ensure a tight, durable and sanitary seal. The SV32301 flushpipe is needed in the configuration to achieve the required cistern height.

Material:	Plastic
Weight:	3.20 Kg
Capacity:	6.0 Litres

Material:	Plastic
Weight:	3.40 Kg
Capacity:	6.0 Litres

Material:	Plastic
Weight:	3.40 Kg
Capacity:	6.0 Litres

Andria 2 Squatting Toilet

Squatting WC Pan

P Trap

Bib tap ancillary

Bib tap

Flushpipe

Low Level Cistern

WC Outlet Connector

Inlet Connector

Low Level Cistern

6 Litre Single Flush Cistern

Sectors & Solutions

Special notes

Resources to download
