HBN 00-10 HTM64 (LB G M/L) Portman 21 Washbasin

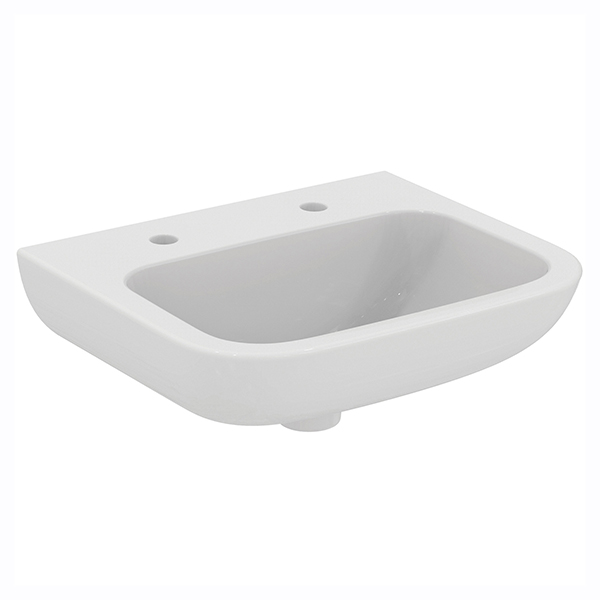

S2253(01) Portman 21 washbasin 50cm, 2 tapholes, no overflow or chainstay hole

LB G M/L general basin (Medium or Large) with plug and chain screw stay.


  • General pattern washbasin assembly
  • 50cm Medium or 60cm Large
  • Wash in reservoir of water
  • Two taphole option
  • Optional wall or panel fixing set

  • White
    (01)
Material: Vitreous China
Weight: 12.73Kg
Width: 50mm
Depth: 42mm
HTM code: LB G M


Data Sheet Spares Where to Buy

Washbasin

S2253(01) Portman 21 washbasin 50cm, 2 tapholes, no overflow or chainstay hole

Waste

S8715(AA) Waste 1¼" waste with bead chain & plug 80mm unslotted tail, screw stay

Trap

S8920(67) Trap 1¼" plastic resealing bottle, 75mm seal, multi-purpose outlet

Washbasin Wall Fixings

E0157(67) Wall fixing set

Brassware

B8267(AA) Avon 21 inclined non-concussive washbasin pillar taps (pair) with dual hot and cold indices per tap, self closing push button, water saving anti-vandal spout regulated to 3.7 litres per minute maximum

Brassware

B9881(AA) Sandringham 21 washbasin pillar taps, lever handles

Waste

S8720(AA) Waste 1¼" brass strainer waste, 80mm unslotted tail

Thermostatic Valve

A5900(AA) TMV thermostatic mixing valve, 15mm

Washbasin Support Bracket

S9137(67) Bracket concealed with clamps and centre waste support for Portman 21 washbasins 60 and 50cm

Variants

Special notes

S9137 Bracket for 60cm& 50cm basins S9138 Bracket for 40cm basins Recommended fixing heights (floor to front rim); Nursery use 600mm Infant use 700mm Junior use 750mm Senior/adult use 780-800mm. Washbasin wall mounted using E015767 wall fixing set o
